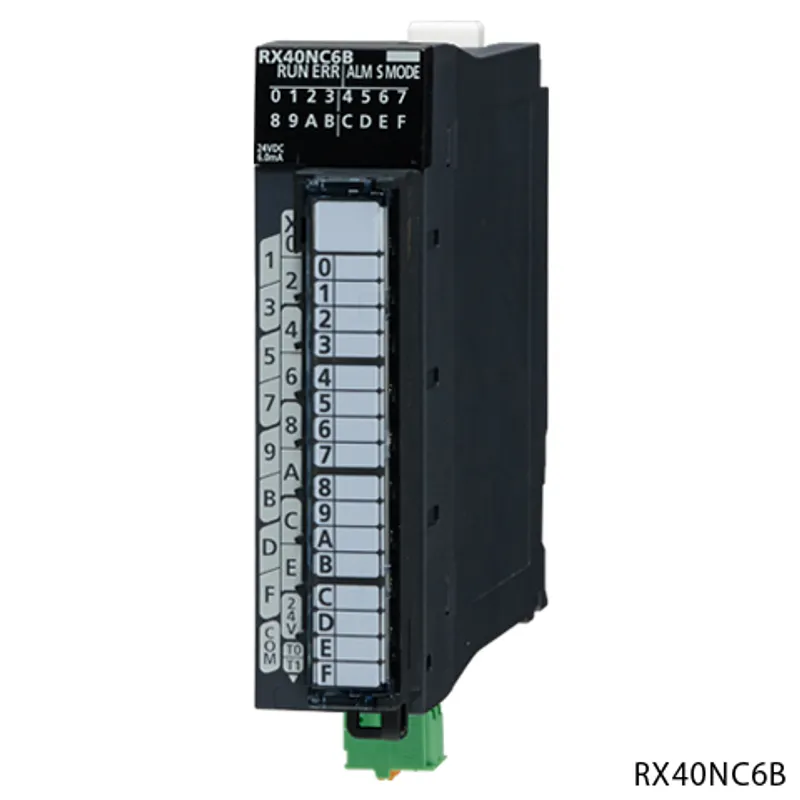

RX40NC6B Mitsubishi MELSEC iQ-R Series Input
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC iQ-R Series – I/O |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RX40NC6B be shipped?
RX40NC6B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RX40NC6B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RX40NC6B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RX40NC6B, subject to availability and destination.
The Mitsubishi Electric RX40NC6B is a input in the MELSEC iQ-R Series. DC input: 16 points, 24 V DC 6 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common type, 18-point terminal block. For more information about IEC61508, please refer to the Technical News(FA-A0386). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | Input |
| Type | DC input (negative common) |
| Subtype | Diagnostic functions |
| Outline | DC input: 16 points, 24 V DC 6 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common type, 18-point terminal block. For more information about IEC61508, please refer to the Technical News(FA-A0386). |
Input specifications
| Input type | DC input (negative common type) |
| Number of input points | 16 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Rated input current | 6.0 mA TYP. (24 V DC) |
| ON voltage/ON current | 14 V or more/3.5 mA or more |
| OFF voltage/OFF current | 6 V or less/1 mA or less |
| Input resistance | 4 kΩ |
| Input response time: OFF to ON | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input response time: ON to OFF | 1 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input disconnection (no connection) detection current | 0.3 mA or less/point |
| Input common terminal arrangement | 16 points/common |
| Interrupt function | Available (set by module parameters) |
| External power supply: Voltage | 12/24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| External power supply: Current | 130 mA (at 24 V DC) |
Common specifications
| Control cycle time | 2 ms |
| Dielectric withstand voltage | 510 V AC rms for 1 minute |
| Insulation resistance | 10 MΩ or higher by insulation resistance tester |
| Protection degree | IP2X |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 32 points (I/O assignment: Input 32 points) |
| Internal current consumption (5 V DC) | 450 mA |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 131 mm |
| Weight | 0.25 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
