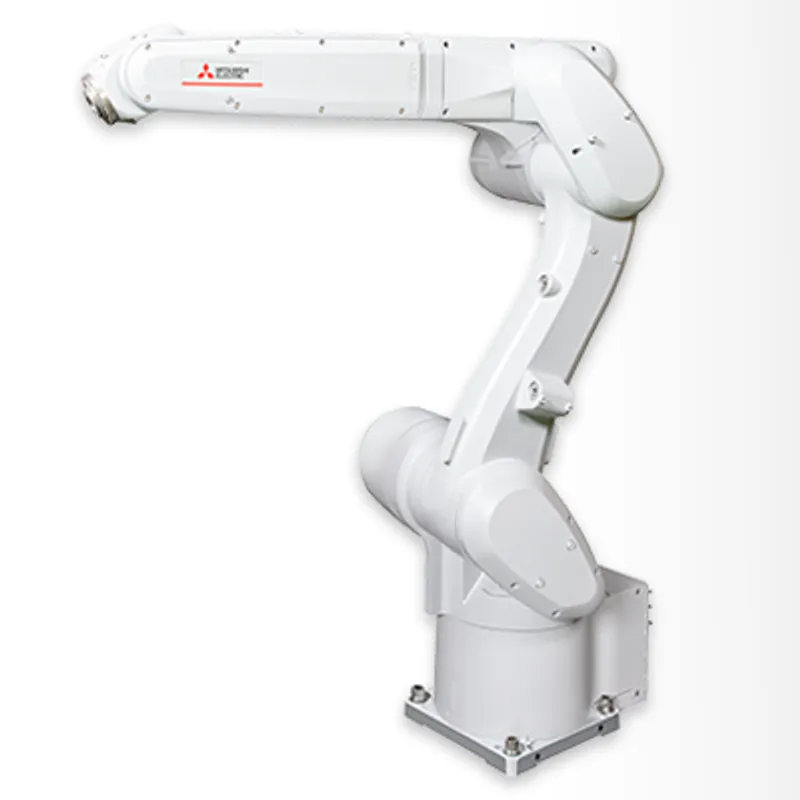

RV-12CRL-D Mitsubishi MELFA robot RV-CR series
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELFA robot – Robot |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RV-12CRL-D be shipped?
RV-12CRL-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RV-12CRL-D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RV-12CRL-D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RV-12CRL-D, subject to availability and destination.
The Mitsubishi Electric RV-12CRL-D is a RV-CR series in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELFA robot |
| Category | RV-CR series |
| Outline | Standalone |
Specifications
| Category | Robot arm |
| Series | RV-CR series |
| Structure | Vertical articulated |
| Type | RV-12CRL-D |
| Environmental specifications | Oil mist |
| Protection degree | IP65 (*1) |
| Installation | On floor, hanging |
| Degrees of freedom | 6 |
| Drive system | AC servo motor (All axes have the brake) |
| Position detection method | Absolute encoder |
| Load capacity: Maximum: kg | 12 |
| Load capacity: Rated: kg | 12 |
| Arm length: Upper arm: mm | 600 |
| Arm length: Fore arm: mm | 760 |
| Maximum reach radius: mm | 1504 |
| Operating range: J1: deg | ー170 to ＋170 |
| Operating range: J2: deg | ー90 to ＋150 |
| Operating range: J3: deg | ＋0 to ＋170.0 |
| Operating range: J4: deg | －190 to ＋190 |
| Operating range: J5: deg | －120 to ＋120 |
| Operating range: J6: deg | －360 to ＋360 |
| Maximum speed: J1: deg/sec | 270 |
| Maximum speed: J2: deg/sec | 253 |
| Maximum speed: J3: deg/sec | 290 |
| Maximum speed: J4: deg/sec | 487 |
| Maximum speed: J5: deg/sec | 480 |
| Maximum speed: J6: deg/sec | 780 |
| Position repeatability: mm | ±0.04 |
| Ambient temperature: ℃ | 0 to 40 |
| Mass: kg | 110 |
| Tolerable moment: J4: Nm | 26.5 |
| Tolerable moment: J5: Nm | 26.5 |
| Tolerable moment: J6: Nm | 11 |
| Tolerable amount of inertia: J4: kgm 2 | 0.9 |
| Tolerable amount of inertia: J5: kgm 2 | 0.9 |
| Tolerable amount of inertia: J6: kgm 2 | 0.3 |
| Tool wiring | 2×15 |
| Tool pneumatic pipes | φ6×2、φ8×1 |
| Machine cable | 5 |
| Connected controller Type | CR800-12CVD |
| Control Type | Standalone |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| RV-8CRL/12CRL Standard Specifications Manual (English) (BFP-A3678-U) | PDF · 12.67MB |
