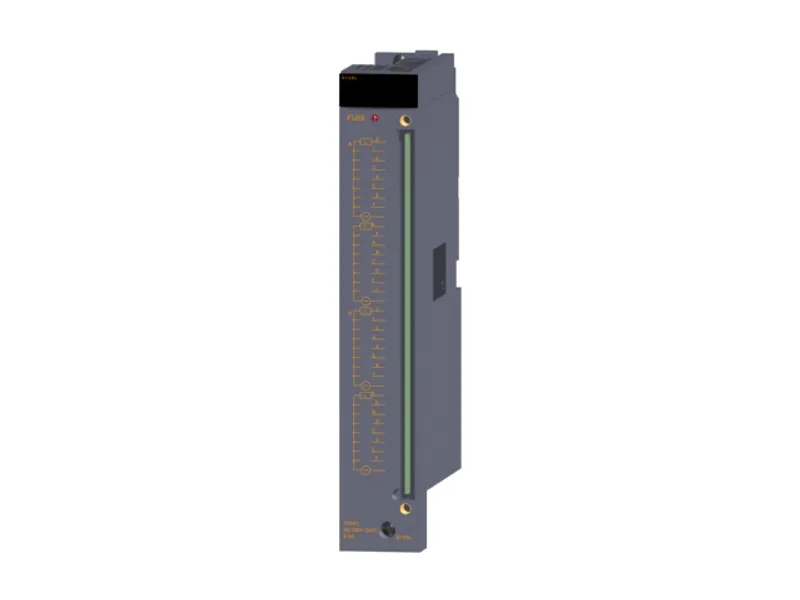

Mitsubishi Electric QY23L

Mitsubishi MELSEC-Q Series Large output

MPN
QY23L
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QY23L?

The Mitsubishi Electric QY23L is a large output in the MELSEC-Q Series. Triac output: 32 points, 100...240 V AC, 0.6 A/point, 2.4 A/common, response time: 1 ms + 0.5 cycles, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY23. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryLarge output
TypeTriac output
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineTriac output: 32 points, 100...240 V AC, 0.6 A/point, 2.4 A/common, response time: 1 ms + 0.5 cycles, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY23

Output specifications

Output typeTRIAC output
Number of output points32 points
Rated load voltage, frequency100...240 V AC (+10/-15 %)
Maximum load current0.6 A/point, 2.4 A/common
Maximum load voltage264 V AC
Minimum load voltage/current24 V AC 100 mA, 100 V AC 10 mA, 240 V AC 10 mA
Maximum inrush current20 A, 10 ms or less, 8 A, 100 ms or less
Leakage current at OFF3 mA or less (at 240 V AC, 60 Hz), 1.5 mA or less (at 120 V AC, 60 Hz)
Maximum voltage drop at ON1.5 V AC or less (100...600 mA) 1.8 V AC or less (50...100 mA) 2 V AC or less (10...50 mA)
Output response time: OFF to ON1 ms or less
Output response time: ON to OFF1 ms + 0.5 cycles or less
Surge suppressorCR absorber (0.022 µF + 47 Ω)
Fuse3.2 A fast blow fuse (1 fuse/common) type HP-32
Fuse blown indicatorProvided (when a fuse blows, LED turns on and a signal is output to the CPU module.)
Output common terminal arrangement8 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage1500 V AC for 1 minute
Operation indicationON indication (LED)
External interface38-point terminal block connector (terminal block is sold separately)
Number of occupied I/O points32 points (I/O assignment: Output 32 points)
Internal current consumption (5 V DC)590 mA (TYP. all points ON)
External dimensions: Height220 mm
External dimensions: Width37.5 mm
External dimensions: Depth116.5 mm
Weight0.45 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
