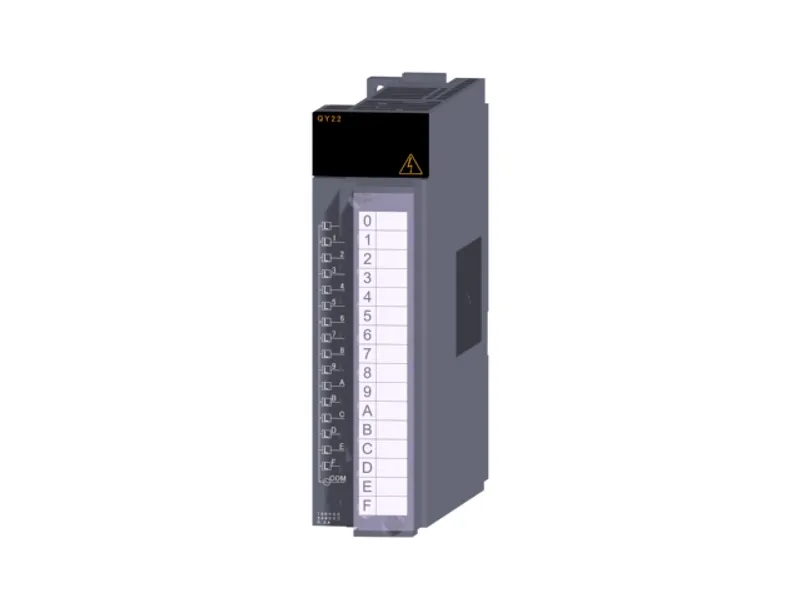

What is the Mitsubishi Electric QY22?

The Mitsubishi Electric QY22 is a output in the MELSEC-Q Series. Triac output: 16 points, 100...240 V AC, 0.6 A/point, 4.8 A/common, response time: 1 ms + 0.5 cycles, 16 points/common, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryOutput
TypeTriac output
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineTriac output: 16 points, 100...240 V AC, 0.6 A/point, 4.8 A/common, response time: 1 ms + 0.5 cycles, 16 points/common, 18-point terminal block

Output specifications

Output typeTRIAC output
Number of output points16 points
Rated load voltage, frequency100...240 V AC, 50/60 Hz ±5 %
Maximum load current0.6 A/point, 4.8 A/common
Load voltage distortion rateWithin 5 %
Maximum load voltage264 V AC
Minimum load voltage/current24 V AC 100 mA, 100 V AC 25 mA, 240 V AC 25 mA
Maximum inrush current20 A/cycle or less
Leakage current at OFF3 mA or less (at 240 V AC, 60 Hz), 1.5 mA or less (at 120 V AC, 60 Hz)
Maximum voltage drop at ON1.5 V or less
Output response time: OFF to ON1 ms + 0.5 cycles or less
Output response time: ON to OFF1 ms + 0.5 cycles or less (rated load, resistive load)
Surge suppressorCR absorber
FuseNone (attaching a fuse to each external wiring is recommended.)
Output common terminal arrangement16 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage2830 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP1X
Operation indicationON indication (LED)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)250 mA (TYP. all points ON)
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.40 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
