QY11AL Mitsubishi MELSEC-Q Series Large output

MPN: QY11AL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – I/O
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can QY11AL be shipped?

QY11AL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QY11AL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QY11AL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QY11AL, subject to availability and destination.

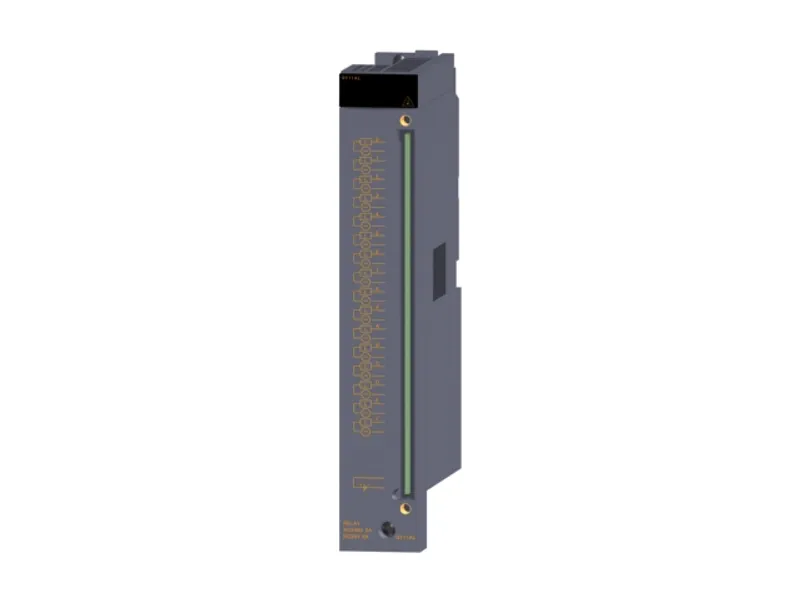

The Mitsubishi Electric QY11AL is a large output in the MELSEC-Q Series. Contact output: 16 points, 24 V AC/240 V AC, 2 A/point, 16 A/all points, response time: 12 ms, all points independent common, 38-point terminal block (terminal block sold separately), replacement model: AY10A, AY11A. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Large output
Type	Relay output
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	Contact output: 16 points, 24 V AC/240 V AC, 2 A/point, 16 A/all points, response time: 12 ms, all points independent common, 38-point terminal block (terminal block sold separately), replacement model: AY10A, AY11A

Output specifications

Output type	Contact output
Number of output points	16 points
Rated switching voltage, current	24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 16 A/all points
Minimum switching load	5 V DC, 1 mA
Maximum switching voltage	264 V AC, 125 V DC
Life: Mechanical	20 million times or more
Life: Electrical	Rated switching voltage/current load: More than 200 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 200 thousand times 200 V AC 0.75 A, 240 V AC 0.5 A (COSø=0.35): 200 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 200 thousand times
Maximum switching frequency	3600 times/hour
Leakage current at OFF	0.1 mA (at 200 V AC, 60 Hz)
Output response time: OFF to ON	10 ms or less
Output response time: ON to OFF	12 ms or less
Surge suppressor	Varistor (387...473 V)
Relay socket	Not provided
External power supply: Voltage	24 V DC ±10 % (ripple voltage: 4 Vp-p or lower)
External power supply: Current	150 mA (at TYP. 24 V DC and all points ON)
Output common terminal arrangement	All points independent

Common specifications

Isolation method	Photocoupler
Dielectric withstand voltage	1500 V AC for 1 minute
Operation indication	ON indication (LED)
External interface	38-point terminal block connector (terminal block is sold separately)
Number of occupied I/O points	16 points (I/O assignment: Output 16 points)
Internal current consumption (5 V DC)	130 mA (TYP. all points ON)
External dimensions: Height	220 mm
External dimensions: Width	37.5 mm
External dimensions: Depth	116.5 mm
Weight	0.38 kg
