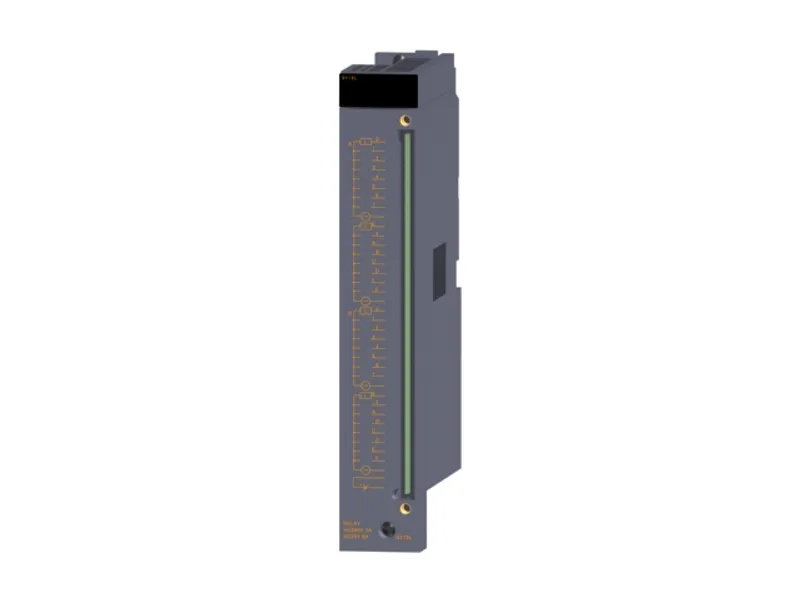

What is the Mitsubishi Electric QY13L?

The Mitsubishi Electric QY13L is a large output in the MELSEC-Q Series. Contact output: 32 points, 24 V AC/240 V AC, 2 A/point, 5 A/common, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY13. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryLarge output
TypeRelay output
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineContact output: 32 points, 24 V AC/240 V AC, 2 A/point, 5 A/common, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY13

Output specifications

Output typeContact output
Number of output points32 points
Rated switching voltage, current24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 5 A/common
Minimum switching load5 V DC, 1 mA
Maximum switching voltage264 V AC, 125 V DC
Life: Mechanical20 million times or more
Life: ElectricalRated switching voltage/current load: More than 200 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 200 thousand times 200 V AC 0.75 A, 240 V AC 0.5 A (COSø=0.35): 200 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 200 thousand times
Maximum switching frequency3600 times/hour
Output response time: OFF to ON10 ms or less
Output response time: ON to OFF12 ms or less
Surge suppressorNone
Relay socketNot provided
External power supply: Voltage24 V DC ±10 % (ripple voltage: 4 Vp-p or lower)
External power supply: Current290 mA (at TYP. 24 V DC and all points ON)
Output common terminal arrangement8 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage1500 V AC for 1 minute
Operation indicationON indication (LED)
External interface38-point terminal block connector (terminal block is sold separately)
Number of occupied I/O points32 points (I/O assignment: Output 32 points)
Internal current consumption (5 V DC)230 mA (TYP. all points ON)
External dimensions: Height220 mm
External dimensions: Width37.5 mm
External dimensions: Depth116.5 mm
Weight0.45 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
