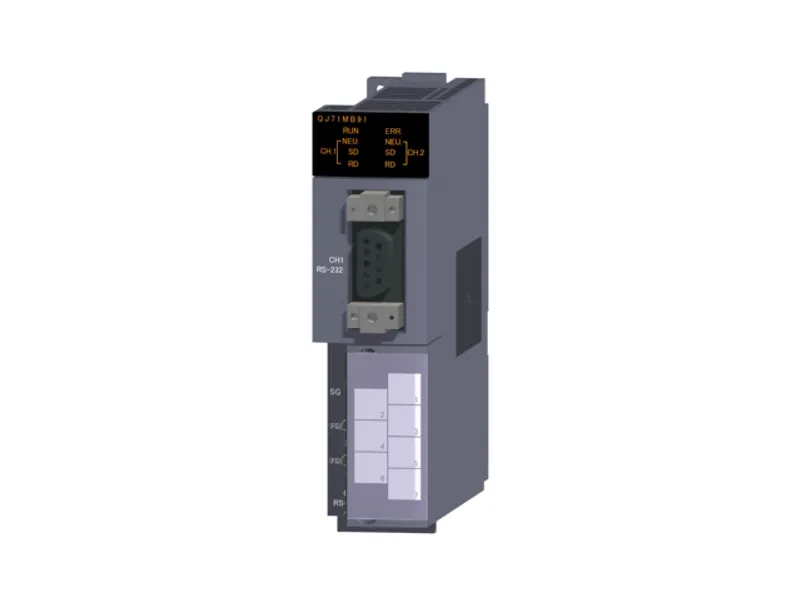

Mitsubishi Electric QJ71MB91

Mitsubishi MELSEC-Q Series MODBUS

MPN
QJ71MB91
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71MB91?

The Mitsubishi Electric QJ71MB91 is a MODBUS in the MELSEC-Q Series. MODBUS ® RTU/MODBUS ® ASCII master/slave function RS-232, RS-422/485. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMODBUS
TypeRS-232/422/485
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineMODBUS ® RTU/MODBUS ® ASCII master/slave function RS-232, RS-422/485

Specifications

Transmission specifications: InterfaceRS-232: 1 channel RS-422/485: 1 channel
Transmission specifications: Transmission speed300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200 bps • Total transmission speed of two interfaces is available up to 115200 bps.
Transmission specifications: Transmission distance: RS-232Up to 15 m
Transmission specifications: Transmission distance: RS-422/485Up to 1200 m (overall distance)
Master function: Automatic communication function: Number of slaves32 slaves per channel
Master function: Automatic communication function: Function (for send)7 functions
Master function: Automatic communication function: Input area size4K words
Master function: Automatic communication function: Output area size4K words
Master function: Communication by dedicated instructions: Number of instructions that can be executed concurrently1 per channel
Master function: Communication by dedicated instructions: Function (for send)MBRW instruction: 9 functions MBREQ instruction: 19 functions
Master function: Communication by dedicated instructions: Input area sizeMaximum 253 bytes per instruction
Master function: Communication by dedicated instructions: Output area sizeMaximum 253 bytes per instruction
Slave function: Automatic response function: Function (for receive)17 functions
Slave function: MODBUS ® device size: Coil64K points
Slave function: MODBUS ® device size: Input64K points
Slave function: MODBUS ® device size: Input register64K points
Slave function: MODBUS ® device size: Holding register64K points
Slave function: MODBUS ® device size: Extended file registerMaximum 4086K points
Slave function: No. of simultaneously acceptable request messages1 request per channel
Slave function: Station No.1...247
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.31 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ71MB91: frequently asked questions

When can QJ71MB91 be shipped?

QJ71MB91 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71MB91 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71MB91 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71MB91, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

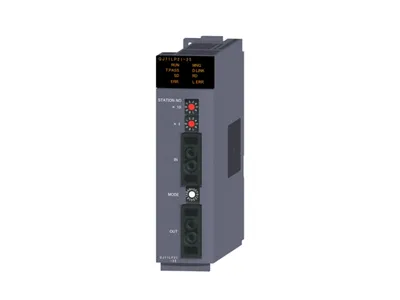

Mitsubishi Electric QJ71LP21-25 – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ71LP21-25

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QJ71LP21G – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ71LP21G

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QJ71LP21GE – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ71LP21GE

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QJ71LP21S-25 – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ71LP21S-25

Mitsubishi MELSEC-Q Series MELSECNET/H

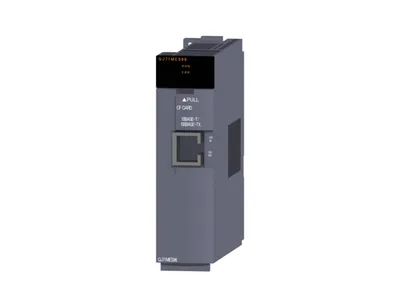

Mitsubishi Electric QJ71MES96 – Mitsubishi MELSEC-Q Series MES interface
