What is the Mitsubishi Electric QJ71GP21S-SX?

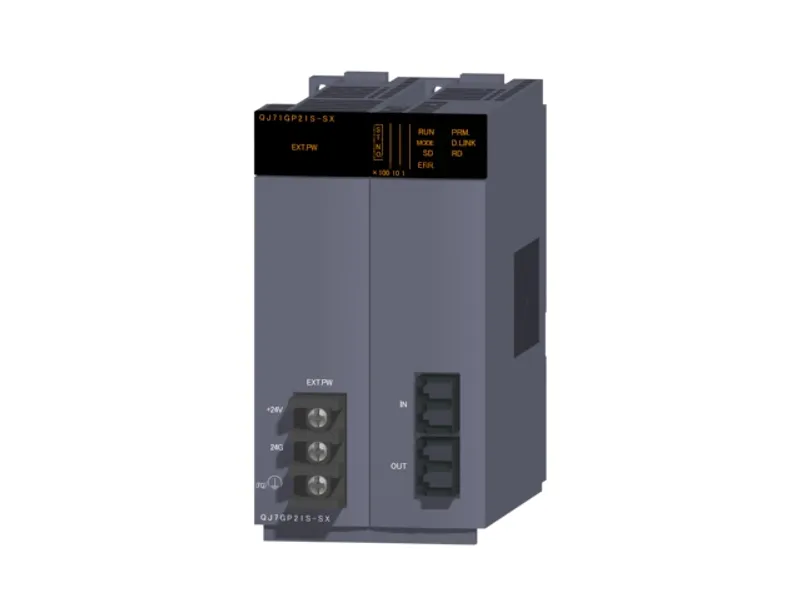

The Mitsubishi Electric QJ71GP21S-SX is a CC-Link IE Control in the MELSEC-Q Series. CC-Link IE Controller Network module (fiber-optic cable), control/normal station, with external power supply function. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryCC-Link IE Control
TypeOptical fiber cable
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineCC-Link IE Controller Network module (fiber-optic cable), control/normal station, with external power supply function

Specifications

Maximum number of link points per network: LB128K points (131072 points, 256KB) (Basic model QCPU or safety CPU: 16K points (16384 points, 32KB))
Maximum number of link points per network: LW128K points (131072 points, 256KB) (Basic model QCPU or safety CPU: 16K points (16384 points, 32KB))
Maximum number of link points per network: LX8K points (8192 points, 1K KB)
Maximum number of link points per network: LY8K points (8192 points, 1K KB)
Maximum number of link points per station: LB16K points (16384 points, 2 KB) For the extended mode: 32K points (32768 points, 4 KB)
Maximum number of link points per station: LW16K points (16384 points, 32K bytes) extended mode: 128K points (131072 points, 256K KB))
Maximum number of link points per station: LX8K points (8192 points, 1 KB)
Maximum number of link points per station: LY8K points (8192 points, 1 KB)
Transient transmission capacityUp to 1920 bytes
Communication speed1 Gbps
Number of stations per networkWhen Universal model QCPU is used for control station: 120 (Control station: 1, Normal station: 119) When any other than Universal model QCPU is used for control station: 64 (Control station: 1, Normal station: 63)
Connection cableOptical fiber cable (Multimode fiber)
Overall cable distance66000m (When 120 stations are connected)
Station-to-station distance (Max.)550m (Core/Clad = 50/125 (µm))
Max. number of networks239
Max. number of groups32
Transmission pathDuplex loop
Optical fiber specifications1000BASE-SX(MMF) optical fiber cable
Optical fiber specifications: StandardIEC60793-2-10 Types A1a.1(50/125 µm multimode)
Optical fiber specifications: Transmission loss (max.)3.5 (dB/km) or less (λ = 850 nm)
Optical fiber specifications: Transmission band (min.)500 (MHz・km) or more (λ = 850 nm)
Connector specificationsDuplex LC connector
Connector specifications: StandardIEC61754-20: Type LC connector
Connector specifications: Connection loss0.3 (dB) or less
Connector specifications: Polished surfacePC (Physical Contact) polishing
Laser class (IEC 60825-1: 2014/JIS C6802: 2014)Class 1 laser product
Number of occupied I/O points48 (I/O assignment: Empty first half: 16 points, Latter half: 32 points for intelli.)
External power supply: Voltage20.4...31.2 V DC
External power supply: Current0.28 A
External power supply: Terminal screw sizeM3
External power supply: Applicable solderless terminalR1.25-3
External power supply: Applicable wire size0.3...1.25 mm 2
External power supply: Tightening torque0.42...0.58 N・m
External power supply: Allowable momentary power failure time1 ms (Level PS1)
External power supply: Noise immunityBy noise simulator of 500 Vp-p noise voltage, 1 µs noise width, and 25...60 Hz noise frequency
Internal current consumption (5 V DC)0.90 A
External dimensions: Height98 mm
External dimensions: Width55.2 mm
External dimensions: Depth90 mm
Weight0.28 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
