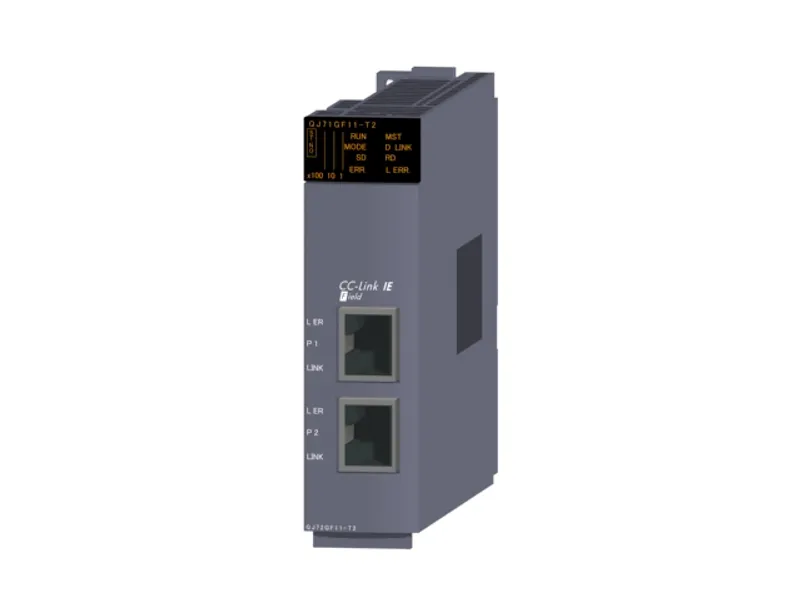

Mitsubishi Electric QJ71GF11-T2

Mitsubishi MELSEC-Q Series CC-Link IE Field

MPN
QJ71GF11-T2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71GF11-T2?

The Mitsubishi Electric QJ71GF11-T2 is a CC-Link IE Field in the MELSEC-Q Series. CC-Link IE Field Network, manager/local station. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryCC-Link IE Field
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineCC-Link IE Field Network, manager/local station

Specifications

Maximum number of link points per network: RX16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RX16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RY16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RX16K points (16384 points, 2K bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RY16K points (16384 points, 2K bytes) Own station send range is 2K points (2048 points, 256 bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RWw8K points (8192 points, 16K bytes) Own station send range is 1K points (1024 points, 2K bytes), 256 points (512 bytes) when communication mode is "High-Speed".
Maximum number of link points per station: When the submaster function is used: submaster operating station: RX2K points (2048 points, 256 bytes) (assigned for the station number 0 or submanager station)
Maximum number of link points per station: When the submaster function is used: submaster operating station: RY2K points (2048 points, 256 bytes) (assigned for the station number 0 or submanager station)
Maximum number of link points per station: When the submaster function is used: submaster operating station: RWr1K points (1024 points, 2K bytes) (assigned for the station number 0 or submanager station) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: When the submaster function is used: submaster operating station: RWw1K points (1024 points, 2K bytes) (assigned for the station number 0 or submanager station) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: Local station: RX2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RY2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RWr1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: Local station: RWw1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Communication speed1 Gbps
Network topologyLine topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Maximum station-to-station distance100 m (conforms to ANSI/TIA/EIA-568-B (Category 5e))
Overall cable distanceLine topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected)
Number of cascade connections20 levels maximum
Maximum number of connectable stations121 stations (manager station: 1, device station: 120)
Maximum number of networks239
Communication methodToken passing method
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.85 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth115 mm
Weight0.18 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ71GF11-T2: frequently asked questions

When can QJ71GF11-T2 be shipped?

QJ71GF11-T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71GF11-T2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71GF11-T2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71GF11-T2, subject to availability and destination.
