What is the Mitsubishi Electric QJ71LP21-25?

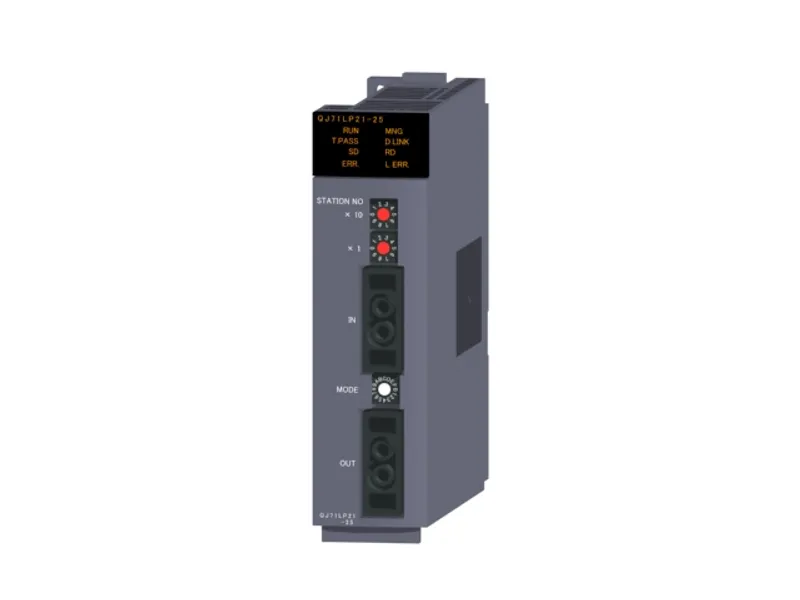

The Mitsubishi Electric QJ71LP21-25 is a MELSECNET/H in the MELSEC-Q Series. MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop. Mitsubishi Electric has announced its discontinuation (2028/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMELSECNET/H
TypeOptical loop (SI/QSI cable)
Sales status2028/02 To be end of order (Mitsubishi Electric)
OutlineMELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop

Specifications

Maximum number of link points per network: LX/LY8192 points
Maximum number of link points per network: LB16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per station: PLC to PLC network• MELSECNET/H mode, MELSECNET/10 mode: {(LY+LB)/8+(2×LW)}≦2000 bytes • MELSECNET/H Extended mode: {(LY+LB)/8+(2×LW)}≦35840 bytes
Maximum number of link points per station: Remote I/O network• Remote master station to remote I/O station: {(LY+LB)/8+(2×LW)}≦1600 bytes • Remote I/O station to remote master station: {(LX+LB)/8+(2+LW)}≦1600 bytes • Multiplexed remote master station to multiplexed remote sub-master station, multiplexed remote sub-master station to multiplexed remote master station: {(LY+LB)/8+(2×LW)}≦2000 bytes
Maximum I/O points per remote I/O stationX + Y ≦ 4096 points If the X/Y numbers are duplicate, only one side is taken into consideration.
Device points per remote I/O station: M8192 points
Device points per remote I/O station: SM2048 points
Device points per remote I/O station: D12288 points
Device points per remote I/O station: SD2048 points
Communication speed25 Mbps/10 Mbps (MELSECNET/10 mode: 10 Mbps)
Maximum number of connectable stations: PLC to PLC network64 stations (Control station: 1, Normal stations: 63)
Maximum number of connectable stations: Remote I/O network65 stations (Remote master station: 1, Remote I/O stations: 64)
Overall cable distance30 km
Maximum station-to-station distanceSI optical cables: 200 m (25 Mbps), 500 m (10 Mbps) H-PCF optical cables: 400 m (25 Mbps), 1 km (10 Mbps) Broad-band H-PCF Optical Cables: 1 km QSI optical cables: 1 km
Communication cableSI optical cables, H-PCF optical cables, Broad-band H-PCF Optical Cables, QSI optical cables
Applicable connector2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Maximum number of networks239
Maximum number of groups32 (MELSECNET/10 mode: 9)
Network topologyDuplex loop
Communication methodToken ring
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Transmission formatHDLC compliant (frame type)
Error control systemRetries based on CRC (X 16 + X 12 + X 5 + 1) and timeover
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.55 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.11 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
