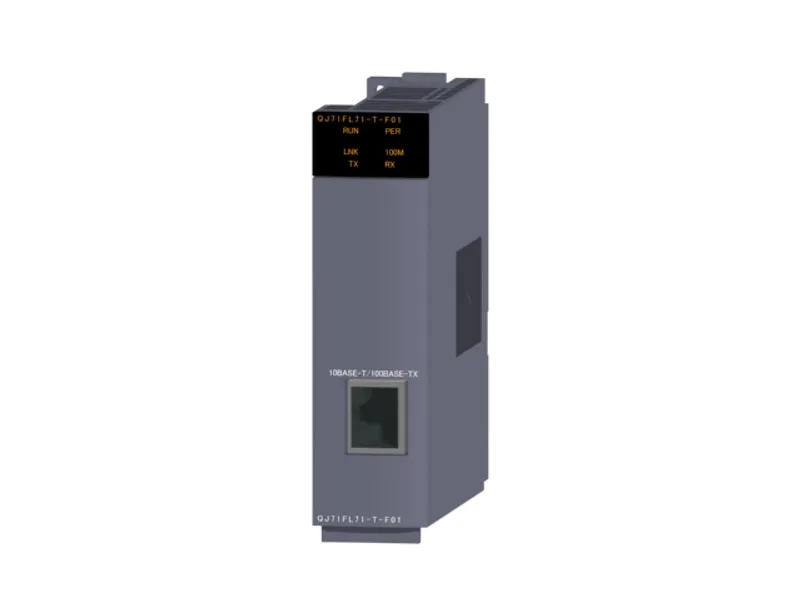

QJ71FL71-T-F01 Mitsubishi MELSEC-Q Series FL-net (OPCN-2)

MPN: QJ71FL71-T-F01 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Information/network
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can QJ71FL71-T-F01 be shipped?

QJ71FL71-T-F01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71FL71-T-F01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71FL71-T-F01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71FL71-T-F01, subject to availability and destination.

The Mitsubishi Electric QJ71FL71-T-F01 is a FL-net (OPCN-2) in the MELSEC-Q Series. FL-net (OPCN-2) Ver.2.00 10BASE-T/100BASE-TX. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	FL-net (OPCN-2)
Type	Ver.2.00
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	FL-net (OPCN-2) Ver.2.00 10BASE-T/100BASE-TX

Specifications

Transmission specifications: Type	100BASE-TX/10BASE-T
Transmission specifications: Data transmission speed	100BASE-TX: 100 Mbps (Full-duplex/Half-duplex) 10BASE-T: 10 Mbps (Half-duplex)
Transmission specifications: Transmission method	Base band
Transmission specifications: Electric interface	IEEE802.3 standard (CSMA/CD standard)
Transmission specifications: Transmission protocol	UDP/IP FA link protocol
Transmission specifications: Maximum segment length	100 m (length between hub and node)
Transmission specifications: Maximum number of nodes in system	254
Transmission specifications: Maximum number of nodes/connection	Cascade connection: Maximum 2 stages (100BASE-TX), Maximum 4 stages (10BASE-T)
Transmission specifications: Cyclic data volume	Maximum (8 k bits + 8 k words)/system Maximum (8 k bits + 8 k words)/node
Transmission specifications: Message data volume	Maximum 1024 bytes
Link data specifications: Common memory area	Area 1 (bit area): 8 k bits Area 2 (word area): 8 k words
Link data specifications: Virtual address space and physical memory	―
Link data specifications: Error log memory area	512 words
Link data specifications: Status memory area	Bit area: 2 k bits Word area: 2 k words
Link data specifications: Local node network parameter setting area	128 words
Link data specifications: Other node network parameter setting area	2048 words
Link data specifications: Network parameter acquisition area	512 words
Link data specifications: Device profile memory area	512 words
Link data specifications: Message area (Transient area)	Maximum 1024 bytes×2 (1 for each of transmit and receive)
Number of occupied I/O points	32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)	0.50 A
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	90 mm
Weight	0.11 kg
