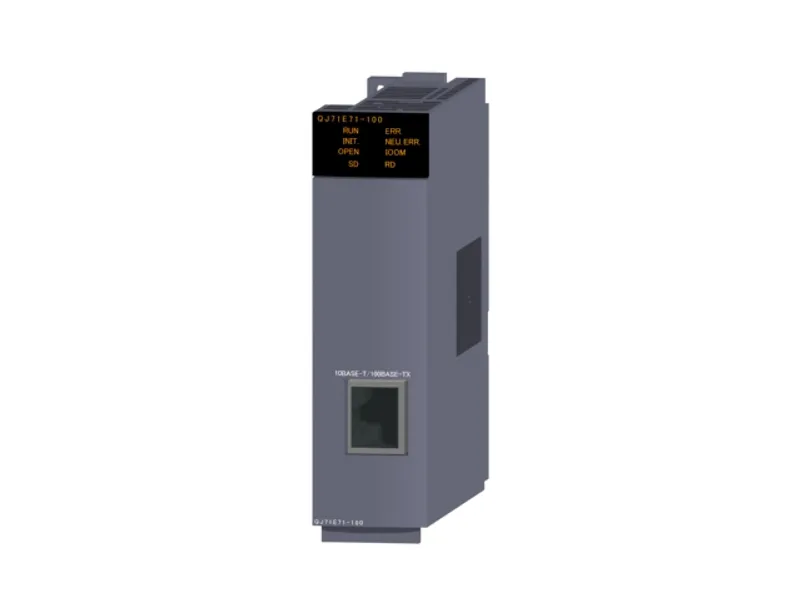

Mitsubishi Electric QJ71E71-100

Mitsubishi MELSEC-Q Series Ethernet

MPN
QJ71E71-100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71E71-100?

The Mitsubishi Electric QJ71E71-100 is a ethernet in the MELSEC-Q Series. 10BASE-T/100BASE-TX. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryEthernet
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline10BASE-T/100BASE-TX

Specifications

Transmission specifications: Type100BASE-TX/10BASE-T
Transmission specifications: Data transmission speed100 Mbps/10 Mbps
Transmission specifications: Flow control100BASE-TX: None 10BASE-T: Back pressure congestion control(Half-duplex)
Transmission specifications: Communication mode100BASE-TX: Full-duplex/half-duplex 10BASE-T: Half-duplex
Transmission specifications: InterfaceRJ45 (Fixed to MDI)
Transmission specifications: Transmission methodBase band
Transmission specifications: Maximum segment length100 m (length between hub and node)
Sending/receiving data storage memory: Number of simultaneously open connections16 connections (connections usable on a program)
Sending/receiving data storage memory: Fixed buffer1K words × 16
Sending/receiving data storage memory: Random access buffer6K words × 1
Sending/receiving data storage memory: E-mail: Attached file6K words × 1
Sending/receiving data storage memory: E-mail: Main text960 words × 1
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.50 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.11 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

QJ71E71-100: frequently asked questions

When can QJ71E71-100 be shipped?

QJ71E71-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71E71-100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71E71-100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71E71-100, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric QJ71C24N-R4 – Mitsubishi MELSEC-Q Series Serial communication
Mitsubishi Electric
QJ71C24N-R4

Mitsubishi MELSEC-Q Series Serial communication

Mitsubishi Electric QJ71DC96 – Mitsubishi MELSEC-Q Series High speed data communication
Mitsubishi Electric
QJ71DC96

Mitsubishi MELSEC-Q Series High speed data communication

Mitsubishi Electric QJ71DN91 – Mitsubishi MELSEC-Q Series DeviceNet
Mitsubishi Electric
QJ71DN91

Mitsubishi MELSEC-Q Series DeviceNet

Mitsubishi Electric QJ71E71 – Mitsubishi MELSEC-Q Series Ethernet
Mitsubishi Electric
QJ71E71

Mitsubishi MELSEC-Q Series Ethernet

Mitsubishi Electric QJ71E71-B2 – Mitsubishi MELSEC-Q Series Ethernet
Mitsubishi Electric
QJ71E71-B2

Mitsubishi MELSEC-Q Series Ethernet

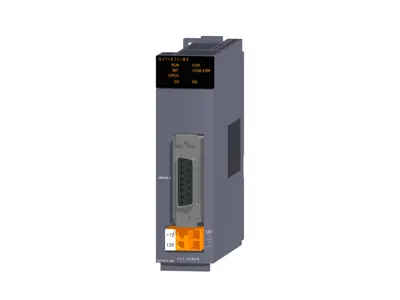

Mitsubishi Electric QJ71E71-B5 – Mitsubishi MELSEC-Q Series Ethernet
Mitsubishi Electric
QJ71E71-B5

Mitsubishi MELSEC-Q Series Ethernet

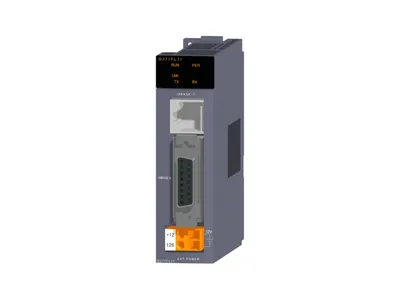

Mitsubishi Electric QJ71FL71 – Mitsubishi MELSEC-Q Series FL-net (OPCN-2)
Mitsubishi Electric
QJ71FL71

Mitsubishi MELSEC-Q Series FL-net (OPCN-2)

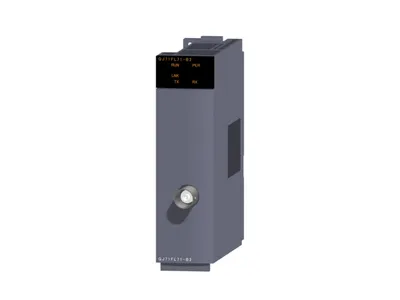

Mitsubishi Electric QJ71FL71-B2 – Mitsubishi MELSEC-Q Series FL-net (OPCN-2)
