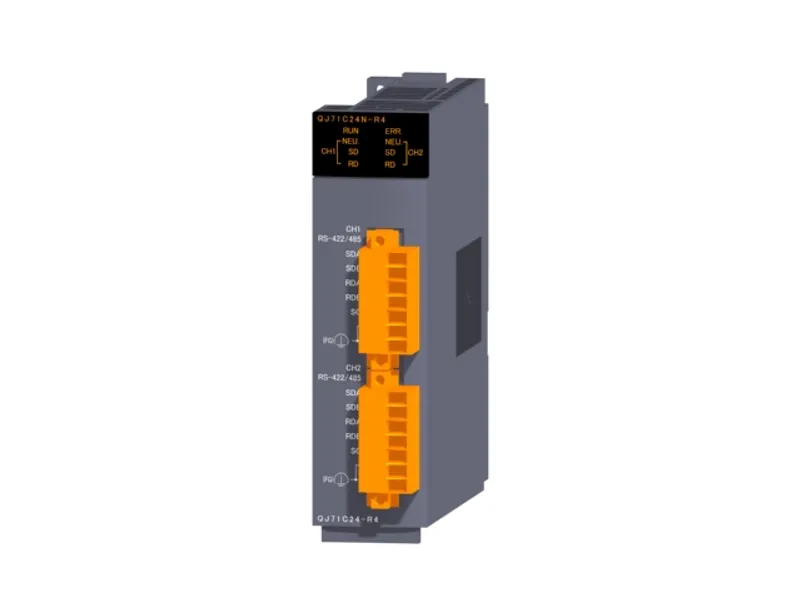

Mitsubishi Electric QJ71C24N-R4

Mitsubishi MELSEC-Q Series Serial communication

MPN
QJ71C24N-R4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71C24N-R4?

The Mitsubishi Electric QJ71C24N-R4 is a serial communication in the MELSEC-Q Series. RS-422/485: 2 channels, transmission speed: 230.4 kbps with 2 channels. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategorySerial communication
TypeRS-422/485
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineRS-422/485: 2 channels, transmission speed: 230.4 kbps with 2 channels

Specifications

Interface: CH1RS-422/485-compliance (2-piece plug-in connector socket block)
Interface: CH2RS-422/485-compliance (2-piece plug-in connector socket block)
Communication method: LineFull-duplex/half-duplex communications
Communication method: MC protocol communicationHalf-duplex communications
Communication method: Predefined protocol communicationFull-duplex/half-duplex communications
Communication method: Nonprocedural protocol communicationFull-duplex/half-duplex communications
Communication method: Bidirectional protocol communicationFull-duplex/half-duplex communications
Synchronization methodStart-stop synchronization method
Transmission speed50, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400 bps • Transmission speed 230400 bps is available for only CH1. (Not available for CH2) • Total transmission speed of two interfaces is available up to 230400 bps. • Total transmission speed of two interfaces is available up to 115200 bps when the communication data monitoring function is used.
Transmission distance: RS-422/485Maximum 1200 m (overall distance)
Data format: Start bits1
Data format: Data bits7/8
Data format: Parity bits1 (vertical parity) or none
Data format: Stop bits1/2
Access cycle: MC protocol communicationProcesses one request during the END processing of the CPU module of the station. Number of scans that must be processed/number of link scans depends on the contents of the request.
Access cycle: Predefined protocol communicationSends or receives data when requested with the dedicated instruction.
Access cycle: Nonprocedural protocol communicationSends each time a send request is issued. Can receive at any time.
Access cycle: Bidirectional protocol communicationSends each time a send request is issued. Can receive at any time.
Error detection: Parity checkSelected for all protocols and when this check is enabled, ODD or EVEN is selected by a parameter.
Error detection: Sum check codeFor the MC or bidirectional protocol, selected by a parameter. For the predefined protocol, whether or not a sum check code is needed depends on the selected protocol. For the nonprocedural protocol, selected in the user frame.
Transmission control: RS-422/485: DTR/DSR controlDisabled
Transmission control: RS-422/485: RS/CS controlDisabled
Transmission control: RS-422/485: CD (DCD) signal controlDisabled
Transmission control: RS-422/485: DC1/DC3 (Xon/Xoff) controlEnabled
Transmission control: RS-422/485: DC2/DC4 controlEnabled
Line configuration for connection (Target device side : CPU module side): RS-422/4851:1,1:n,n:1,m:n (The total number of 'n' or 'm+n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: MC protocol communication1:1,1:n,m:n (The total number of 'n' or 'm+n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Predefined protocol communication1:1,n:1 (The total number of 'n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Nonprocedural protocol communication1:1, 1:n, n:1 (The total number of 'n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Bidirectional protocol communication1:1
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.39 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

QJ71C24N-R4: frequently asked questions

When can QJ71C24N-R4 be shipped?

QJ71C24N-R4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71C24N-R4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71C24N-R4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71C24N-R4, subject to availability and destination.
