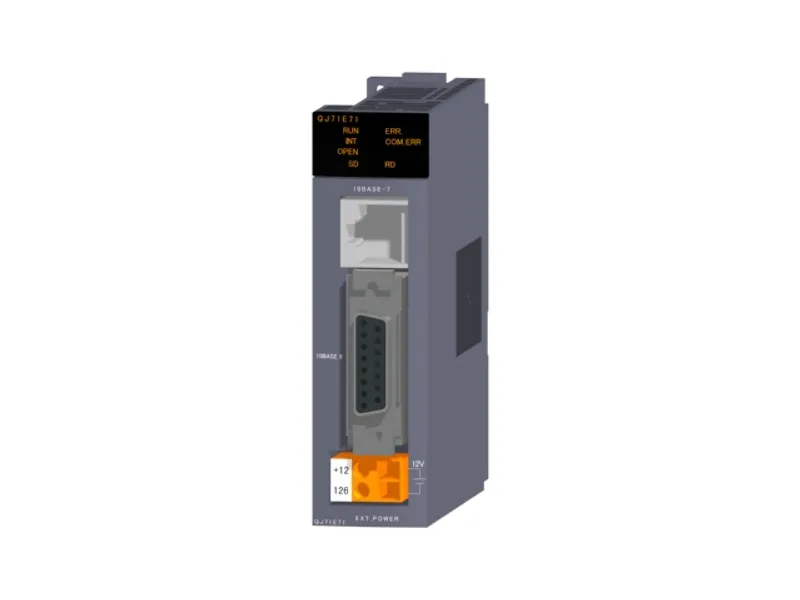

Mitsubishi Electric QJ71E71

Mitsubishi MELSEC-Q Series Ethernet

MPN
QJ71E71
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QJ71E71 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71E71?

The Mitsubishi Electric QJ71E71 is a ethernet in the MELSEC-Q Series. 10BASE-T/10BASE5. Mitsubishi Electric has discontinued it (2003/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryEthernet
Sales status2003/04 Discontinued (Mitsubishi Electric)
Outline10BASE-T/10BASE5

Specifications

Transmission specifications: Type10BASE-T/10BASE5
Transmission specifications: Data transmission speed10 Mbps
Transmission specifications: Flow controlBack pressure congestion control(Half-duplex)
Transmission specifications: Communication modeHalf-duplex
Transmission specifications: Interface10BASE-T: RJ45 10BASE5: AUI
Transmission specifications: Transmission methodBase band
Transmission specifications: Maximum segment length100 m (10BASE-T) 500 m (10BASE5)
Transmission specifications: Maximum node-to-node distance2500 m (10BASE5)
Transmission specifications: Maximum number of nodes/connection100 units/segment (10BASE5)
Transmission specifications: Interval between the minimum nodes2.5 m (10BASE5)
Sending/receiving data storage memory: Number of simultaneously open connections16 connections (connections usable on a program)
Sending/receiving data storage memory: Fixed buffer1K words × 16
Sending/receiving data storage memory: Random access buffer6K words × 1
Sending/receiving data storage memory: E-mail: Attached file6K words × 1
Sending/receiving data storage memory: E-mail: Main text960 words × 1
12 V DC external power supply capacity (Transceiver)It is necessary to apply a transceiver, or a device that meets AUI cable specifications.
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.50 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.13 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

QJ71E71: frequently asked questions

Can I still buy the QJ71E71 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QJ71E71, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QJ71E71 be shipped?

QJ71E71 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71E71 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71E71 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71E71, subject to availability and destination.
