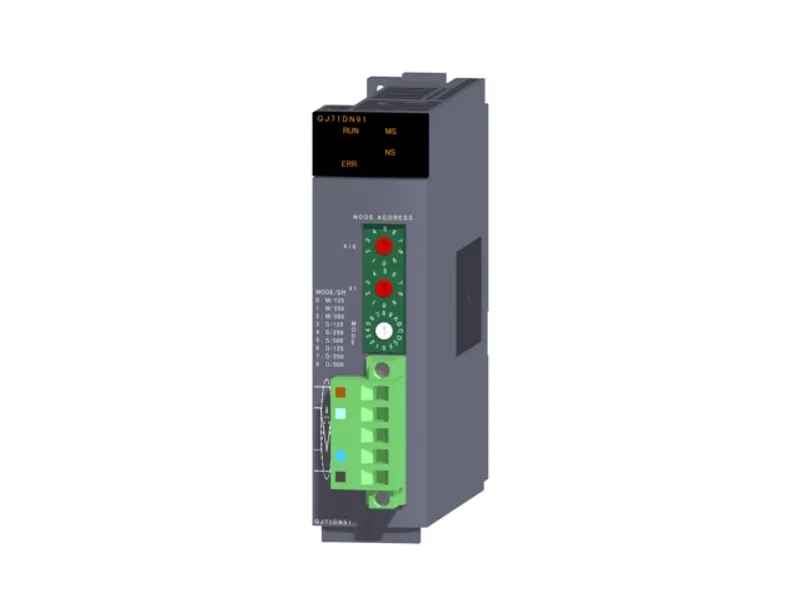

Mitsubishi Electric QJ71DN91

Mitsubishi MELSEC-Q Series DeviceNet

MPN
QJ71DN91
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71DN91?

The Mitsubishi Electric QJ71DN91 is a deviceNet in the MELSEC-Q Series. DeviceNet ® master/slave shared module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryDeviceNet
OutlineDeviceNet ® master/slave shared module

Communication specifications

Master function: Node typeDeviceNet master (Group 2 only client)
Master function: Node No.0...63
Master function: Number of connections: Message connection63
Master function: Number of connections: I/O connection63 (polling, bit strobe, change of state, cyclic)
Master function: Communication data size: I/O communication (Send)Maximum 4096 points (512 bytes), maximum 256 bytes per node
Master function: Communication data size: I/O communication (Receive)Maximum 4096 points (512 bytes), maximum 256 bytes per node
Master function: Communication data size: Message communication (Send)Maximum 240 bytes
Master function: Communication data size: Message communication (Receive)Maximum 240 bytes
Slave function: Node typeDeviceNet slaves (Group 2 server)
Slave function: Node No.0...63
Slave function: Number of connections: I/O connection1 (polling)
Slave function: Communication data size: I/O communication (Send)Maximum 1024 points (128 bytes)
Slave function: Communication data size: I/O communication (Receive)Maximum 1024 points (128 bytes)
Communication speedSelectable from 125 kbaud, 250 kbaud and 500 kbaud.
Maximum cable lengthThe maximum cable length complies with the DeviceNet Specifications (Release 2.0) Volumes 1 and 2.
Current consumption required on the network0.03 A
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.17 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.13 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ71DN91: frequently asked questions

When can QJ71DN91 be shipped?

QJ71DN91 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71DN91 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71DN91 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71DN91, subject to availability and destination.
