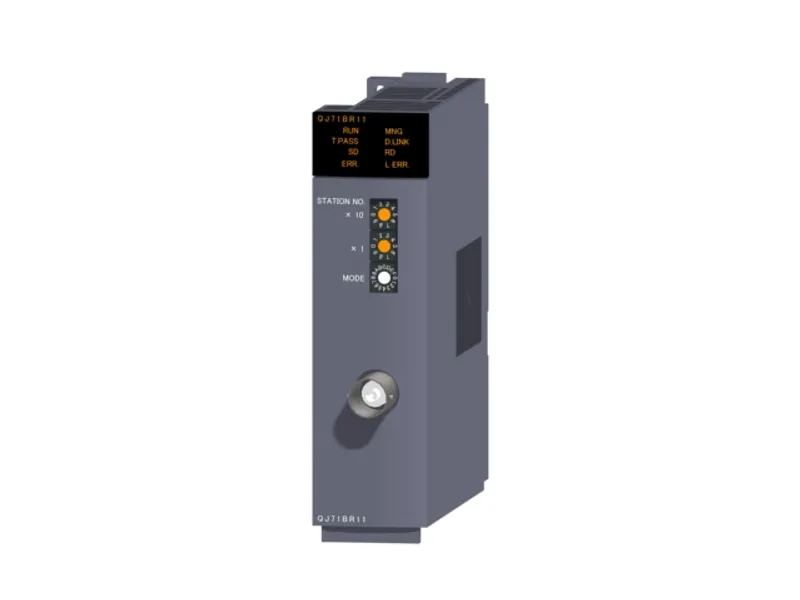

Mitsubishi Electric QJ71BR11

Mitsubishi MELSEC-Q Series MELSECNET/H

MPN
QJ71BR11
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71BR11?

The Mitsubishi Electric QJ71BR11 is a MELSECNET/H in the MELSEC-Q Series. MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, coaxial bus system, connection cable: 3C-2V/5C-2V/5C-FB, coaxial cable, transmission path format: single bus. Mitsubishi Electric has announced its discontinuation (2029/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMELSECNET/H
TypeCoaxial bus
Sales status2029/02 To be end of order (Mitsubishi Electric)
OutlineMELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, coaxial bus system, connection cable: 3C-2V/5C-2V/5C-FB, coaxial cable, transmission path format: single bus

Specifications

Maximum number of link points per network: LX/LY8192 points
Maximum number of link points per network: LB16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per station: PLC to PLC network• MELSECNET/H mode, MELSECNET/10 mode: {(LY+LB)/8+(2×LW)}≦2000 bytes • MELSECNET/H Extended mode: {(LY+LB)/8+(2×LW)}≦35840 bytes
Maximum number of link points per station: Remote I/O network• Remote master station to remote I/O station: {(LY+LB)/8+(2×LW)}≦1600 bytes • Remote I/O station to remote master station: {(LX+LB)/8+(2+LW)}≦1600 bytes • Multiplexed remote master station to multiplexed remote sub-master station, multiplexed remote sub-master station to multiplexed remote master station: {(LY+LB)/8+(2×LW)}≦2000 bytes
Maximum I/O points per remote I/O stationX + Y ≦ 4096 points If the X/Y numbers are duplicate, only one side is taken into consideration.
Device points per remote I/O station: M8192 points
Device points per remote I/O station: SM2048 points
Device points per remote I/O station: D12288 points
Device points per remote I/O station: SD2048 points
Communication speed10 Mbps
Maximum number of connectable stations: PLC to PLC network32 stations (Control station: 1, Normal stations: 31)
Maximum number of connectable stations: Remote I/O network33 stations (Remote master station: 1, Remote I/O stations: 32)
Overall cable distance3C-2V: 300 m 5C-2V, 5C-FB: 500 m Can be extended up to 2.5 km with the use of a repeater unit (A6BR10, A6BR10-DC)
Communication cableHigh frequency coaxial cables: 3C-2V, 5C-2V (JIS C 3501 compliant), 5C-FB (JIS C 3502 compliant)
Applicable connectorConnector plug for 3C-2V Connector plug for 5C-2V Connector plug for 5C-FB
Maximum number of networks239
Maximum number of groups32 (MELSECNET/10 mode: 9)
Network topologySingle bus
Communication methodToken bus
Synchronization methodFrame synchronization method
Encoding methodManchester code
Transmission formatHDLC compliant (frame type)
Error control systemRetries based on CRC (X 16 + X 12 + X 5 + 1) and timeover
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.75 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.11 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
