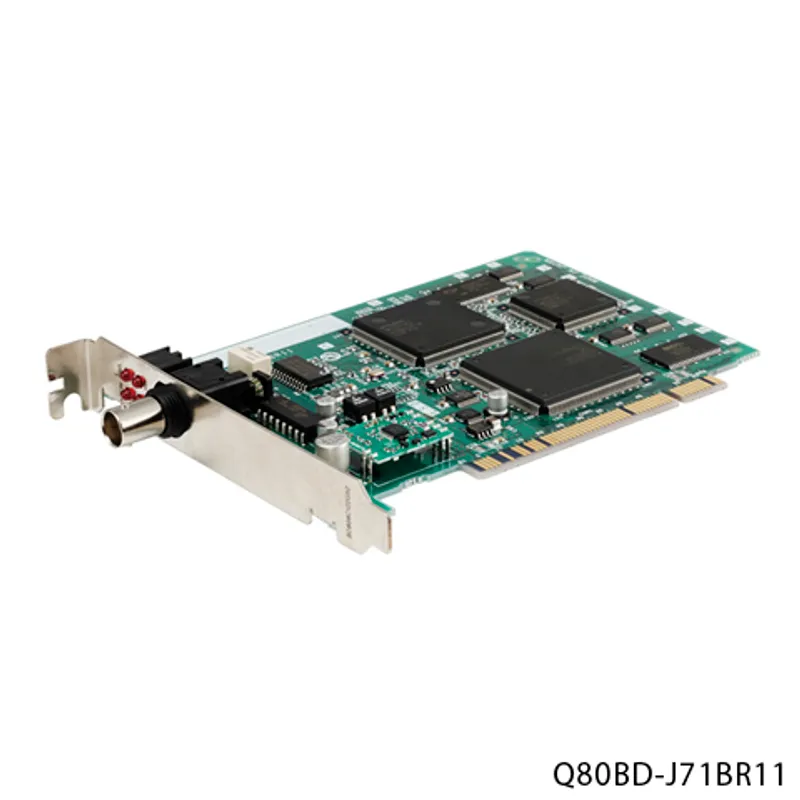

What is the Mitsubishi Electric Q80BD-J71BR11?

The Mitsubishi Electric Q80BD-J71BR11 is a network interface boards in the MELSEC network modules. MELSECNET/H PLC to PLC network, control/normal station, 3C-2V/5C-2V coaxial cable, single bus, PCI slot, Japanese/English OS supported. Mitsubishi Electric has announced its discontinuation (2028/12 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeCoaxial bus
SubtypePLC to PLC network
Sales status2028/12 To be end of order (Mitsubishi Electric)
OutlineMELSECNET/H PLC to PLC network, control/normal station, 3C-2V/5C-2V coaxial cable, single bus, PCI slot, Japanese/English OS supported

Specifications

Maximum number of link points per network: LX/LY8192 points
Maximum number of link points per network: LB16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per station: PLC to PLC network• MELSECNET/H mode, MELSECNET/10 mode: {(LY+LB)/8+(2×LW)}≦2000 bytes • MELSECNET/H Extended mode: {(LY+LB)/8+(2×LW)}≦35840 bytes
Communication speed10 Mbps
Maximum number of connectable stations: PLC to PLC network32 stations (Control station: 1, Normal stations: 31)
Overall cable distance3C-2V: 300 m 5C-2V, 5C-FB: 500 m Can be extended up to 2.5 km with the use of a repeater unit (A6BR10, A6BR10-DC)
Communication cableHigh frequency coaxial cables: 3C-2V, 5C-2V (JIS C 3501 compliant), 5C-FB (JIS C 3502 compliant)
Applicable connectorConnector plug for 3C-2V Connector plug for 5C-2V Connector plug for 5C-FB
Maximum number of networks239
Maximum number of groups32 (MELSECNET/10 mode: 9)
Network topologySingle bus
Communication methodToken bus
Synchronization methodFrame synchronization method
Encoding methodManchester code
Transmission formatHDLC compliant (frame type)
Error control systemRetries based on CRC (X 16 + X 12 + X 5 + 1) and timeover
Number of installable boardsMaximum 4 boards
Installation slotPCI slot (half size)
Exclusive slots1 slot
Internal current consumption (5 V DC)0.67 A
Weight0.11 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q80BD-J71BR11: frequently asked questions

When can Q80BD-J71BR11 be shipped?

Q80BD-J71BR11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q80BD-J71BR11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q80BD-J71BR11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q80BD-J71BR11, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric Q6TE-18SN – Mitsubishi MELSEC-Q Series Spring-clamp terminal block
Mitsubishi Electric
Q6TE-18SN

Mitsubishi MELSEC-Q Series Spring-clamp terminal block

Mitsubishi Electric Q7BAT – Mitsubishi MELSEC-Q Series Battery
Mitsubishi Electric
Q7BAT

Mitsubishi MELSEC-Q Series Battery

Mitsubishi Electric Q7BATN – Mitsubishi MELSEC-Q Series Battery
Mitsubishi Electric
Q7BATN

Mitsubishi MELSEC-Q Series Battery

Mitsubishi Electric Q80BD-J61BT11N – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q80BD-J61BT11N

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric Q80BD-J71GF11-T2 – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q80BD-J71GF11-T2

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric Q80BD-J71GP21-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q80BD-J71GP21-SX

Mitsubishi MELSEC network modules Network interface boards

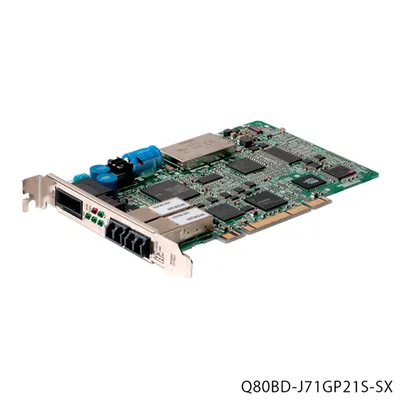

Mitsubishi Electric Q80BD-J71GP21S-SX – Mitsubishi MELSEC network modules Network interface boards
