Mitsubishi Electric Q80BD-J61BT11N

Mitsubishi MELSEC network modules Network interface boards

MPN
Q80BD-J61BT11N
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

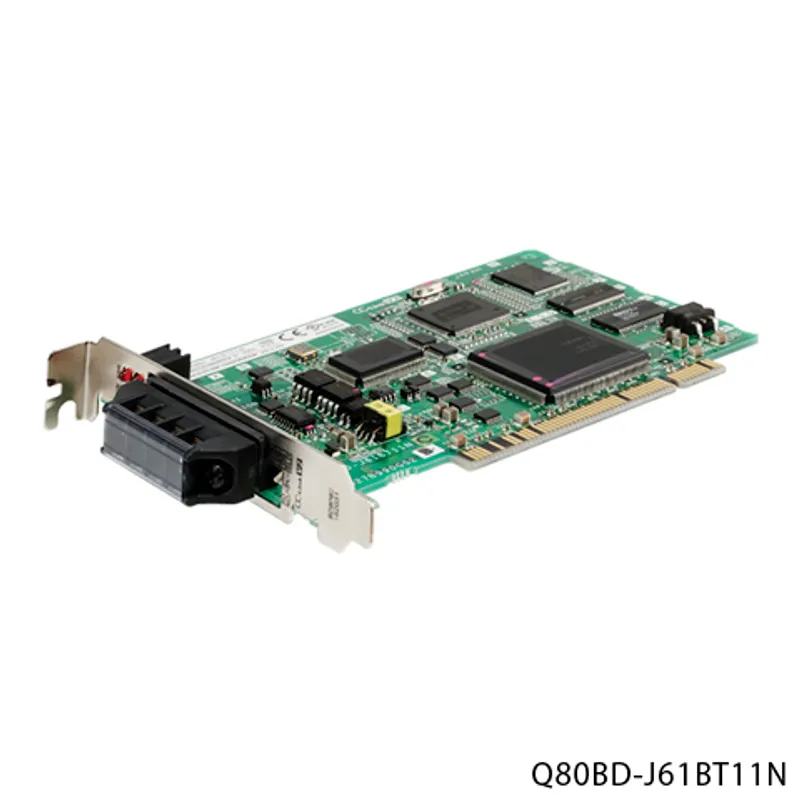

What is the Mitsubishi Electric Q80BD-J61BT11N?

The Mitsubishi Electric Q80BD-J61BT11N is a network interface boards in the MELSEC network modules. CC-Link Ver.2 compatible manager/local station PCI slot, Japanese/English OS supported. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeManager/local station
SubtypeVer.2 compatible
OutlineCC-Link Ver.2 compatible manager/local station PCI slot, Japanese/English OS supported

Specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps1200 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps900 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps400 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps160 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps100 m
Station typeManager station (Ver. 1 manager station or Ver. 2 manager station) Local station (Ver. 1 local station or Ver. 2 local station)
Maximum number of connected stations: Manager station64
Number of occupied stations: Local stationIn remote net Ver. 1 mode: 1 or 4 stations In remote net Ver. 2 mode, remote net additional mode: 1 ... 4 stations
Maximum number of link points per system: CC-Link Ver.1Remote I/O (RX, RY) : 2048 points Remote register (RWw) : 256 points Remote register (RWr) : 256 points
Maximum number of link points per system: CC-Link Ver.2Remote I/O (RX, RY) : 8192 points Remote register (RWw) : 2048 points Remote register (RWr) : 2048 points
Number of link points per station: CC-Link Ver.1Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: SingleRemote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: DoubleRemote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 8 points Remote register (RWr) : 8 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: QuadrupleRemote I/O (RX, RY) : 64 points (local station is 62 points) Remote register (RWw) : 16 points Remote register (RWr) : 16 points
Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: OctupleRemote I/O (RX, RY) : 128 points (local station is 126 points) Remote register (RWw) : 32 points Remote register (RWr) : 32 points
Communication methodBroadcast polling method
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Network topologyBus (RS-485)
Transmission formatHDLC compliant
Error control systemCRC (X 16 + X 12 + X 5 + 1)
Communication cableVer.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Number of installable boardsMaximum 4 boards
Installation slotPCI slot (half size)
Exclusive slots1 slot
Internal current consumption (5 V DC)0.56 A
Weight0.11 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Q80BD-J61BT11N: frequently asked questions

When can Q80BD-J61BT11N be shipped?

Q80BD-J61BT11N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q80BD-J61BT11N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q80BD-J61BT11N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q80BD-J61BT11N, subject to availability and destination.
