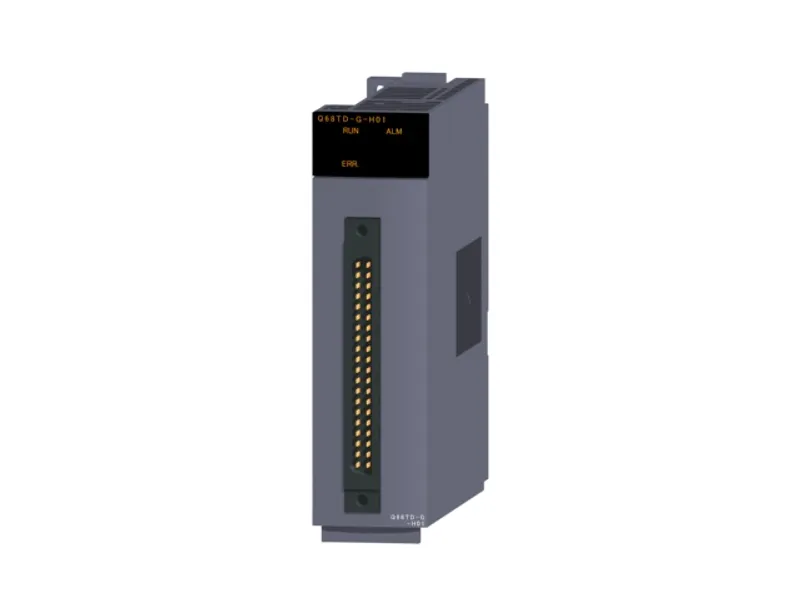

Mitsubishi Electric Q68TD-G-H01

Mitsubishi MELSEC-Q Series Temperature input

MPN
Q68TD-G-H01
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q68TD-G-H01?

The Mitsubishi Electric Q68TD-G-H01 is a temperature input in the MELSEC-Q Series. 8 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 320 ms/8 channels, 40-pin connector, channel isolated, disconnection monitoring. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryTemperature input
TypeThermocouple input
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline8 channels, thermocouple (B, R, S, K, E, J, T, N), conversion speed: 320 ms/8 channels, 40-pin connector, channel isolated, disconnection monitoring

Specifications

Number of analog input points8 points (8 channels + cold junction compensation channels)
Number of channels8 channels
Digital output: Temperature measured value16-bit signed binary value (-2700...18200)
Digital output: Scaling value16-bit signed binary value
Thermocouple compliance standardsJIS C1602-1995, IEC 60584-1 (1995), IEC60584-2 (1982)
ResolutionB, R, S, N: 0.3 ˚C K, E, J, T: 0.1 ˚C
Accuracy: Thermocouple type: Measured temperature rangeAccuracy (℃) = (Conversion accuracy) + (Temperature characteristics) Conversion accuracy (at operating ambient temperature 25±5 ゚C) Temperature characteristic (per operating ambient temperature variation of 1 ゚C) Maximum temperature error at ambient temperature 55゚C Effect per wiring resistance 1Ω
Accuracy: B: 0...600 ゚C―
Accuracy: B: 600...800 ゚CConversion accuracy: ±3.0 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±13.0 ˚C
Accuracy: B: 800...1700 ゚CConversion accuracy: ±2.5 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±12.5 ˚C
Accuracy: B: 1700...1820 ゚C―
Accuracy: R: -50...0 ゚C―
Accuracy: R: 0...300 ゚CConversion accuracy: ±2.5 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±12.5 ˚C
Accuracy: R: 300...1600 ゚CConversion accuracy: ±2.0 ˚C Temperature characteristic: ±0.3 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±9.5 ˚C
Accuracy: R: 1600...1760 ゚C―
Accuracy: S: -50...0 ゚C―
Accuracy: S: 0...300 ゚CConversion accuracy: ±2.5 ˚C Temperature characteristic: ±0.4 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±12.5 ˚C
Accuracy: S: 300...1600 ゚CConversion accuracy: ±2.0 ˚C Temperature characteristic: ±0.3 ˚C Maximum temperature error at ambient temperature 55 ゚C: ±9.5 ˚C
Accuracy: S: 1600...1760 ゚C―
Accuracy: K: -270...-200 ゚C―
Accuracy: K: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.5 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.2 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±11.0 ˚C
Accuracy: K: 0...1200 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±9.0 ˚C
Accuracy: K: 1200...1370 ゚C―
Accuracy: E: -270...-200 ゚C―
Accuracy: E: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.5 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.15 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±8.5 ˚C
Accuracy: E: 0...900 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±6.75 ˚C
Accuracy: E: 900...1000 ゚C―
Accuracy: J: -210...-40 ゚C―
Accuracy: J: -40...750 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±5.625 ˚C
Accuracy: J: 750...1200 ゚C―
Accuracy: T: -270...-200 ゚C―
Accuracy: T: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.5 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.1 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±6.0 ˚C
Accuracy: T: 0...350 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±2.625 ˚C
Accuracy: T: 350...400 ゚C―
Accuracy: N: -270...-200 ゚C―
Accuracy: N: -200...0 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.5 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.2 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±11.0 ˚C
Accuracy: N: 0...1250 ゚CConversion accuracy: Larger value of ±0.5 ˚C and ±0.25 % of measured temperature Temperature characteristic: Larger value of ±0.06 ˚C and ±0.02 % of measured temperature Maximum temperature error at ambient temperature 55 ゚C: ±9.375 ˚C
Accuracy: N: 1250...1300 ゚C―
Accuracy: Cold junction compensation accuracy±1.0 ˚C
Sampling cycle320 ms/8 channels
Conversion speed320 ms/8 channels
Disconnection detectionNone
Isolation methodBetween thermocouple input channel and programmable controller power supply: Transformer Between thermocouple input channels: Transformer Between cold junction compensation channel and programmable controller power supply: Non-isolation
Dielectric withstand voltageBetween thermocouple input channel and programmable controller power supply: 500 V AC rms for 1 minute Between thermocouple input channels: 1000 V AC rms for 1 minute
Insulation resistanceBetween thermocouple input channel and programmable controller power supply, between thermocouple input channels: 500 V DC, 10 MΩ or higher
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.49 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.18 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
