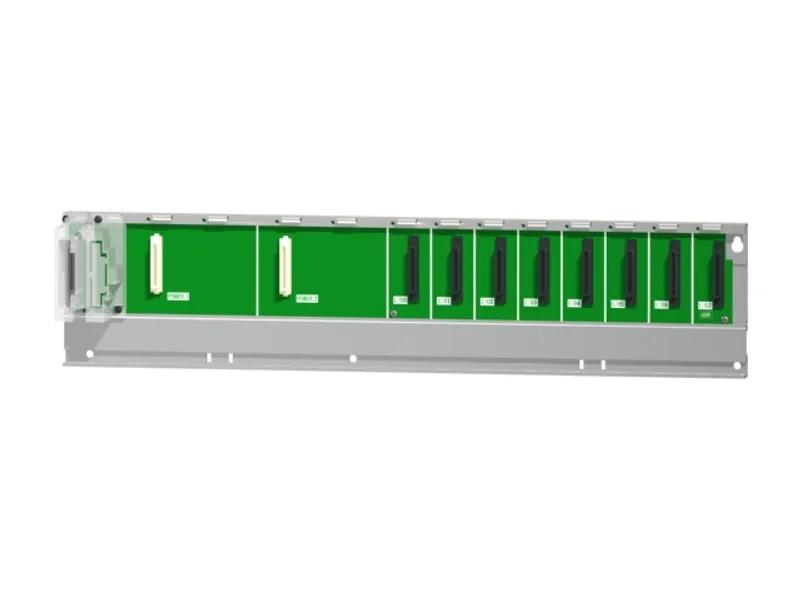

Q68RB Mitsubishi MELSEC-Q Series Extension base
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Base |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Q68RB be shipped?
Q68RB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q68RB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q68RB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68RB, subject to availability and destination.
The Mitsubishi Electric Q68RB is a extension base in the MELSEC-Q Series. 8 slots, two redundant power supply modules required, for Q Series modules. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Extension base |
| Type | Redundant power supply type |
| Outline | 8 slots, two redundant power supply modules required, for Q Series modules |
Specifications
| Number of mountable I/O modules | 8 |
| Possibility of extension | Extendable |
| Applicable module | MELSEC-Q series modules |
| Applicable power supply module | MELSEC-Q series redundant power supply modules x2 |
| Internal current consumption (5 V DC) | 0.12 A |
| Mounting hole size | M4 screw hole or ø4.5 hole (for M4 screw) |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 439 mm |
| External dimensions: Depth | 44.1 mm |
| Weight | 0.49 kg |
| DIN rail mounting adapter type | Q6DIN1 (sold separately) |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| QCPU User's Manual (Hardware Design, Maintenance and Inspection) (SH-080483ENG-BC) | PDF · 11.02MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestQ68DAI Mitsubishi MELSEC-Q Series Analog output
Available on requestQ68DAIN Mitsubishi MELSEC-Q Series Analog output
Available on requestQ68DAV Mitsubishi MELSEC-Q Series Analog output
Available on requestQ68DAVN Mitsubishi MELSEC-Q Series Analog output
Available on requestQ68RD3-G Mitsubishi MELSEC-Q Series Temperature input
Available on requestQ68TD-G-H01 Mitsubishi MELSEC-Q Series Temperature input
Available on requestQ68TD-G-H02 Mitsubishi MELSEC-Q Series Temperature input

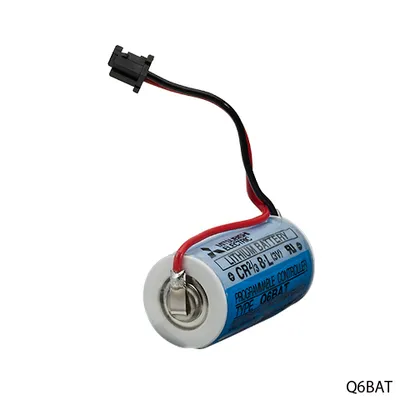

Available on requestQ6BAT Mitsubishi MELSEC-Q Series Battery
