Mitsubishi Electric Q68RD3-G

Mitsubishi MELSEC-Q Series Temperature input

MPN
Q68RD3-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q68RD3-G?

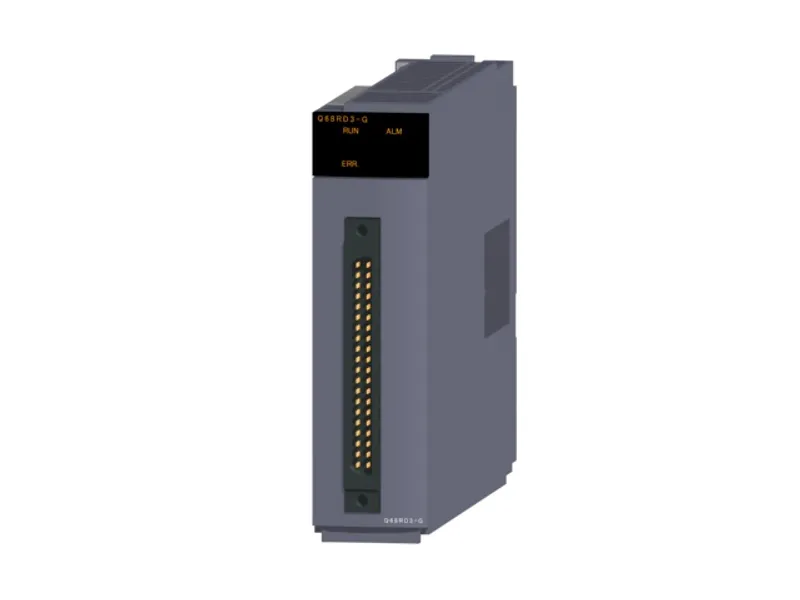

The Mitsubishi Electric Q68RD3-G is a temperature input in the MELSEC-Q Series. 8 channels, RTD (Pt100, JPt100, Ni100), conversion speed: 320 ms/8 channels, 40-pin connector, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryTemperature input
TypeRTD input
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline8 channels, RTD (Pt100, JPt100, Ni100), conversion speed: 320 ms/8 channels, 40-pin connector, channel isolated

Specifications

Number of analog input points8 points (8 channels)
Number of channels8 channels
Digital output: Temperature measured value16-bit signed binary value (-2000...8500)
Digital output: Scaling value16-bit signed binary value
Applicable resistance temperature detectorPt100, JPt100, Ni100
Measured temperature range: Pt100-200...850 ˚C
Measured temperature range: JPt100-180...600 ˚C
Measured temperature range: Ni100-60...180 ˚C
Temperature detecting output current1.0 mA or less
Resolution0.1 ˚C
AccuracyAccuracy (゚C) = (Conversion accuracy) + (Allowable difference of resistance temperature detector used)
Conversion accuracy: Pt100: -200...850 ゚C±0.8 ˚C (ambient temperature: 25±5 ゚C), ±2.4 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt100: -20...120 ゚C±0.3 ˚C (ambient temperature: 25±5 ゚C), ±1.1 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt100: 0...200 ゚C±0.4 ˚C (ambient temperature: 25±5 ゚C), ±1.2 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: -180...600 ゚C±0.8 ˚C (ambient temperature: 25±5 ゚C), ±2.4 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: -20...120 ゚C±0.3 ˚C (ambient temperature: 25±5 ゚C), ±1.1 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: 0...200 ゚C±0.4 ˚C (ambient temperature: 25±5 ゚C), ±1.2 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: Ni100: -60...180 ゚C±0.4 ˚C (Ambient temperature: 25±5 ゚C), ±1.2 ˚C (Ambient temperature: 0...55 ゚C)
Conversion speed320 ms/8 channels
Disconnection detectionAvailable (each channel independent)
Isolation methodBetween RTD input and programmable controller power supply, between RTD input channels: transformer isolation
Dielectric withstand voltageBetween RTD input and programmable controller power supply: 500 V AC rms for 1 minute Between RTD input channels: 1000 V AC rms for 1 minute
Insulation resistanceBetween RTD input and programmable controller power supply, between RTD input channels: 500 V DC, 10 MΩ or higher
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.54 A
External dimensions: Height102 mm
External dimensions: Width27.4 mm
External dimensions: Depth130 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q68RD3-G: frequently asked questions

When can Q68RD3-G be shipped?

Q68RD3-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q68RD3-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q68RD3-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68RD3-G, subject to availability and destination.
