Q6TA32 Mitsubishi MELSEC-Q Series Terminal block adapter
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Option |
| Lifecycle | Active mature |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Q6TA32 be shipped?
Q6TA32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q6TA32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q6TA32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q6TA32, subject to availability and destination.
The Mitsubishi Electric Q6TA32 is a terminal block adapter in the MELSEC-Q Series. For 32-point input modules, 0.5 mm 2 (20 AWG). Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Terminal block adapter |
| Sales status | 2029/09 To be end of order (Mitsubishi Electric) |
| Outline | For 32-point input modules, 0.5 mm 2 (20 AWG) |
Specifications
| Applicable wire | Polyvinyl chloride wire (twisted wire) Nominal 0.5 mm 2 (20AWG) max. Insulation diameter: ø 1.9 mm |
| Number of connectable wires | 1 |
| Number of wire insertion/disconnection times | 30 times |
| Maximum allowable voltage | 250 V AC |
| Maximum allowable current | 3 A DC |
| Contact resistance | 100 mΩ or less |
| Weight | 0.08 kg |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Insulation Displacement Connector for MELSEC-Q Series 32-Point I/O Module User's Manual (IB-0800228E-F) | PDF · 0.22MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestQ68RD3-G Mitsubishi MELSEC-Q Series Temperature input
Available on requestQ68TD-G-H01 Mitsubishi MELSEC-Q Series Temperature input
Available on requestQ68TD-G-H02 Mitsubishi MELSEC-Q Series Temperature input
Available on requestQ6BAT Mitsubishi MELSEC-Q Series Battery
Available on requestQ6TE-18S Mitsubishi MELSEC-Q Series Spring-clamp terminal block
Available on requestQ6TE-18SN Mitsubishi MELSEC-Q Series Spring-clamp terminal block
Available on requestQ7BAT Mitsubishi MELSEC-Q Series Battery

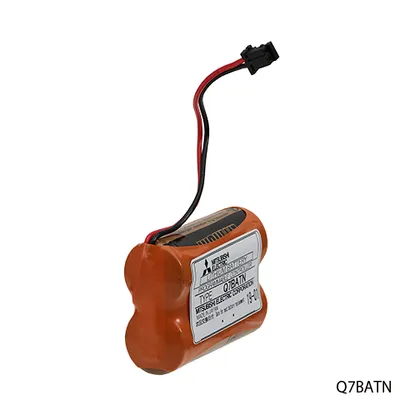

Available on requestQ7BATN Mitsubishi MELSEC-Q Series Battery
