Mitsubishi Electric Q68DAI

Mitsubishi MELSEC-Q Series Analog output

MPN
Q68DAI
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q68DAI (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q68DAI?

The Mitsubishi Electric Q68DAI is a analog output in the MELSEC-Q Series. 8 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, output: 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block. Mitsubishi Electric has discontinued it (2007/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog output
TypeCurrent output
Sales status2007/12 Discontinued (Mitsubishi Electric)
Outline8 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, output: 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

Output specifications

Number of analog output points8 points (8 channels)
Digital inputNormal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383
Analog output: Current0...20 mA DC (external load resistance 0...600 Ω) When the voltage of the external power supply is 22.85...28.8 V DC
I/O characteristics, resolution: Output rangeDigital input value (maximum resolution)
I/O characteristics, resolution: Current output: 0...20 mANormal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA)
I/O characteristics, resolution: Current output: 4...20 mANormal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA)
I/O characteristics, resolution: Current output: User range settingNormal resolution mode: -4000...4000 (1.5 µA) High resolution mode: -12000...12000 (0.83 µA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ゚CWithin ±0.1 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ゚CWithin ±0.3 %
D/A conversion speed80 µs/channel
Absolute maximum output: Current21 mA
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Non-isolation Between external power supply and analog output: Non-isolation
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 500 V AC for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 20 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.28 A (inrush current: 3.1 A, 75 µs or lower)
External interface18-point terminal block (M3 screw), FG terminal
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.38 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.18 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q68DAI: frequently asked questions

Can I still buy the Q68DAI now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q68DAI, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q68DAI be shipped?

Q68DAI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q68DAI in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q68DAI and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68DAI, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric Q68BL-E – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BL-E

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68BLS – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BLS

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68BLS-D – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BLS-D

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68CT – Mitsubishi MELSEC-Q Series CT input
Mitsubishi Electric
Q68CT

Mitsubishi MELSEC-Q Series CT input

Mitsubishi Electric Q68DAIN – Mitsubishi MELSEC-Q Series Analog output
Mitsubishi Electric
Q68DAIN

Mitsubishi MELSEC-Q Series Analog output

Mitsubishi Electric Q68DAV – Mitsubishi MELSEC-Q Series Analog output
Mitsubishi Electric
Q68DAV

Mitsubishi MELSEC-Q Series Analog output

Mitsubishi Electric Q68DAVN – Mitsubishi MELSEC-Q Series Analog output
Mitsubishi Electric
Q68DAVN

Mitsubishi MELSEC-Q Series Analog output

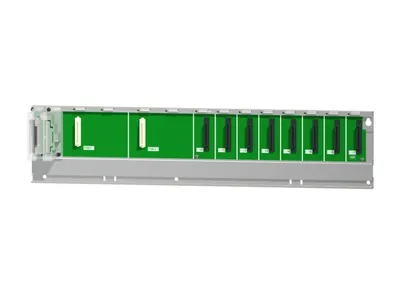

Mitsubishi Electric Q68RB – Mitsubishi MELSEC-Q Series Extension base
