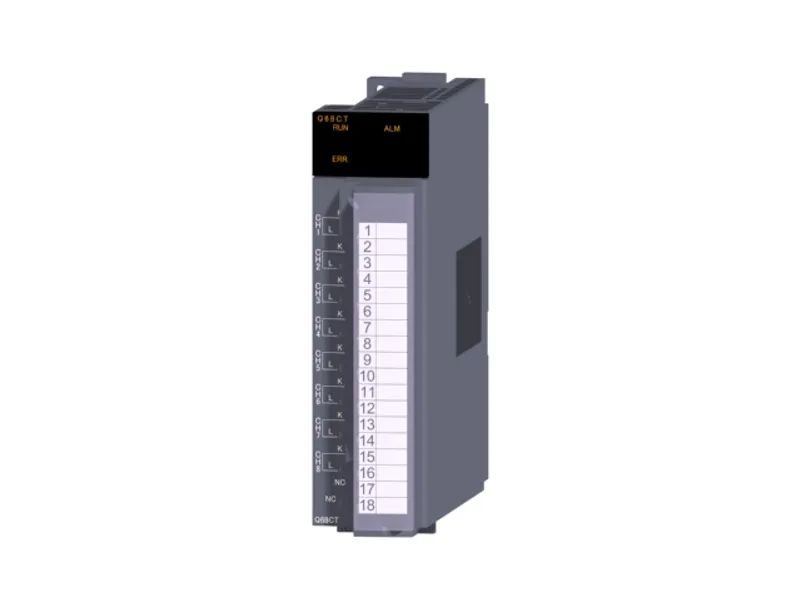

Mitsubishi Electric Q68CT

Mitsubishi MELSEC-Q Series CT input

MPN
Q68CT
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q68CT?

The Mitsubishi Electric Q68CT is a CT input in the MELSEC-Q Series. 8 channels, input: CT 0...5 A AC, 0...50 A AC, 0...100 A AC, 0...200 A AC, 0...400 A AC, 0...600 A AC, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryCT input
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline8 channels, input: CT 0...5 A AC, 0...50 A AC, 0...100 A AC, 0...200 A AC, 0...400 A AC, 0...600 A AC, 18-point terminal block

Input specifications

Number of analog input points8 points (8 channels)
Operation methodEffective value operation
Input range0...5 A AC 0...50 A AC 0...100 A AC 0...200 A AC 0...400 A AC 0...600 A AC
Digital output: Converted current value0...12000
Digital output: Scaling value-32768...32767
Input frequency50/60 Hz
Excessive input200 % for 1 minute, 150 % for continuous time
I/O characteristics, resolution: Input rangeDigital output value (maximum resolution)
I/O characteristics, resolution: Current input: 0...5 A AC0...10000 (0.5 mA)
I/O characteristics, resolution: Current input: 0...50 A AC0...10000 (5 mA)
I/O characteristics, resolution: Current input: 0...100 A AC0...10000 (10 mA)
I/O characteristics, resolution: Current input: 0...200 A AC0...10000 (20 mA)
I/O characteristics, resolution: Current input: 0...400 A AC0...10000 (40 mA)
I/O characteristics, resolution: Current input: 0...600 A AC0...10000 (60 mA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ゚CWithin ±0.5 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚CWithin ±1.0 %
Sampling cycle10 ms/8 CH, 20 ms/8 CH, 50 ms/8 CH, 100 ms/8 CH
Response time0.4 s or less

Common specifications

Isolation methodBetween input terminals and the programmable controller power supply: Transformer Between input channels: Non-isolation
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 1500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.35 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q68CT: frequently asked questions

When can Q68CT be shipped?

Q68CT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q68CT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q68CT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68CT, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric Q68BL – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BL

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68BL-E – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BL-E

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68BLS – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BLS

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68BLS-D – Mitsubishi MELSEC-Q Series Extension base
Mitsubishi Electric
Q68BLS-D

Mitsubishi MELSEC-Q Series Extension base

Mitsubishi Electric Q68DAI – Mitsubishi MELSEC-Q Series Analog output
Mitsubishi Electric
Q68DAI

Mitsubishi MELSEC-Q Series Analog output

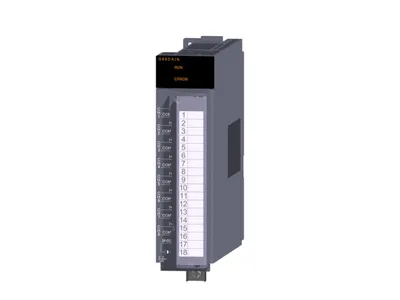

Mitsubishi Electric Q68DAIN – Mitsubishi MELSEC-Q Series Analog output
Mitsubishi Electric
Q68DAIN

Mitsubishi MELSEC-Q Series Analog output

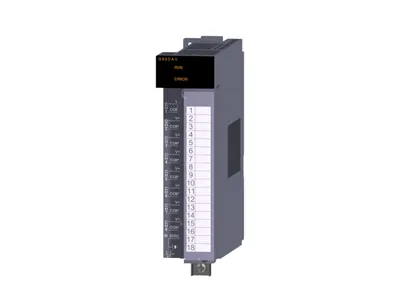

Mitsubishi Electric Q68DAV – Mitsubishi MELSEC-Q Series Analog output
