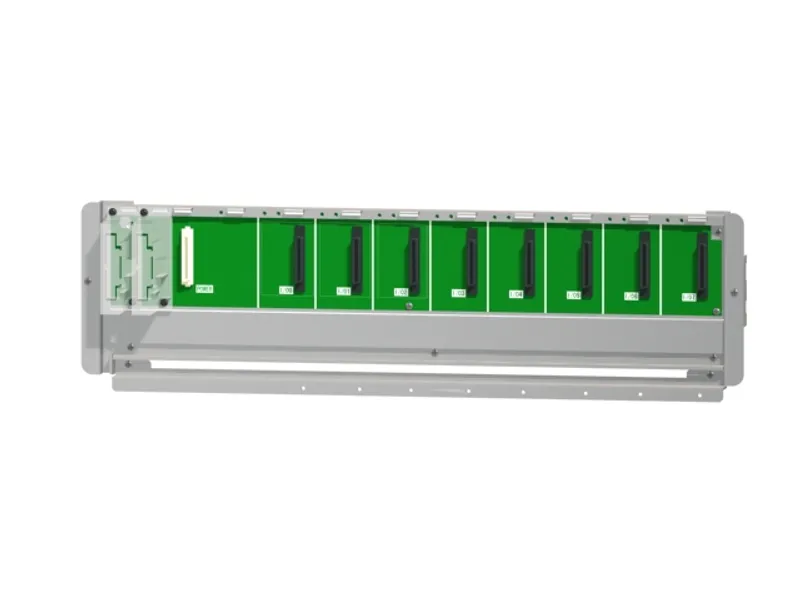

Q68BLS-D Mitsubishi MELSEC-Q Series Extension base
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Base |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Q68BLS-D be shipped?
Q68BLS-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q68BLS-D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q68BLS-D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68BLS-D, subject to availability and destination.
The Mitsubishi Electric Q68BLS-D is a extension base in the MELSEC-Q Series. 8 slots, power supply module required, for Q Series I/O modules (DIN rail installation). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Extension base |
| Type | AnS size Q large type |
| Outline | 8 slots, power supply module required, for Q Series I/O modules (DIN rail installation) |
Specifications
| Number of mountable I/O modules | 8 |
| Possibility of extension | Extendable |
| Applicable module | MELSEC-Q series modules |
| Applicable power supply module | MELSEC-Q series power supply module |
| Internal current consumption (5 V DC) | 0.12 A |
| External dimensions: Height | 118 mm |
| External dimensions: Width | 409 mm |
| External dimensions: Depth | 48.5 mm |
| Weight | 0.74 kg |
| DIN rail mounting adapter type | Q6DIN1 (accessory) |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Q Series Large Type Base Unit/Blank Cover (AnS Series Size) User's Manual (IB-0800495E-H) | PDF · 0.98MB |
