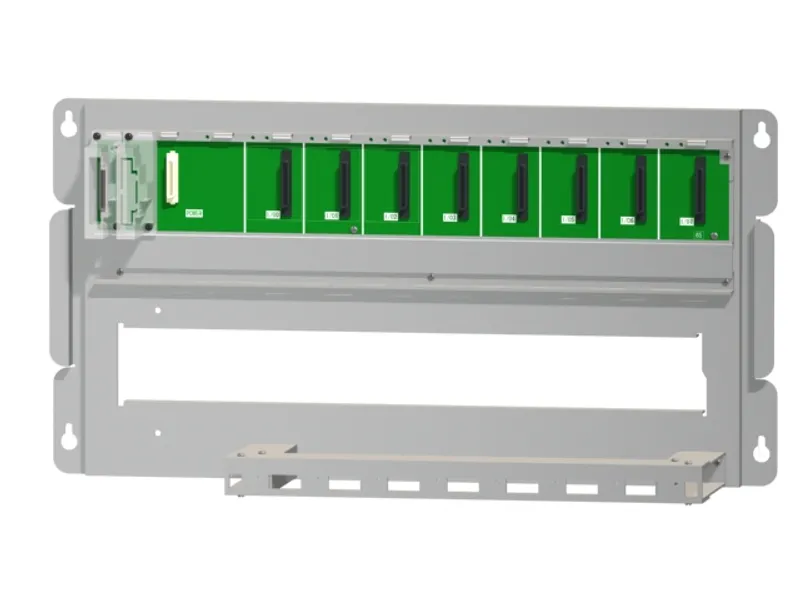

Q68BL Mitsubishi MELSEC-Q Series Extension base
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Base |
| Lifecycle | Active mature |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can Q68BL be shipped?
Q68BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q68BL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q68BL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68BL, subject to availability and destination.
The Mitsubishi Electric Q68BL is a extension base in the MELSEC-Q Series. 8 slots, power supply module required, for Q Series large type I/O modules. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Extension base |
| Type | Large type |
| Sales status | 2029/09 To be end of order (Mitsubishi Electric) |
| Outline | 8 slots, power supply module required, for Q Series large type I/O modules |
Specifications
| Number of mountable I/O modules | 8 |
| Possibility of extension | Extendable |
| Applicable module | MELSEC-Q series modules, MELSEC-Q Series Large Type I/O Modules |
| Applicable power supply module | MELSEC-Q series power supply module |
| Internal current consumption (5 V DC) | 0.12 A |
| Mounting hole size | M5 screw hole or ø5.5 hole (for M5 screw) |
| External dimensions: Height | 240 mm |
| External dimensions: Width | 466 mm |
| External dimensions: Depth | 110 mm |
| Weight | 2.32 kg |
| DIN rail mounting adapter type | ― |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Q Series Large Type Base Unit / I/O Module / Blank Cover User's Manual (IB-0800407E-Q) | PDF · 1.60MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestQ68AD-G Mitsubishi MELSEC-Q Series Analog input
Available on requestQ68ADI Mitsubishi MELSEC-Q Series Analog input
Available on requestQ68ADV Mitsubishi MELSEC-Q Series Analog input
Available on requestQ68B Mitsubishi MELSEC-Q Series Extension base
Available on requestQ68BL-E Mitsubishi MELSEC-Q Series Extension base
Available on requestQ68BLS Mitsubishi MELSEC-Q Series Extension base

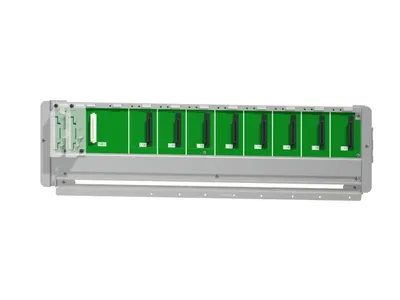

Available on requestQ68BLS-D Mitsubishi MELSEC-Q Series Extension base

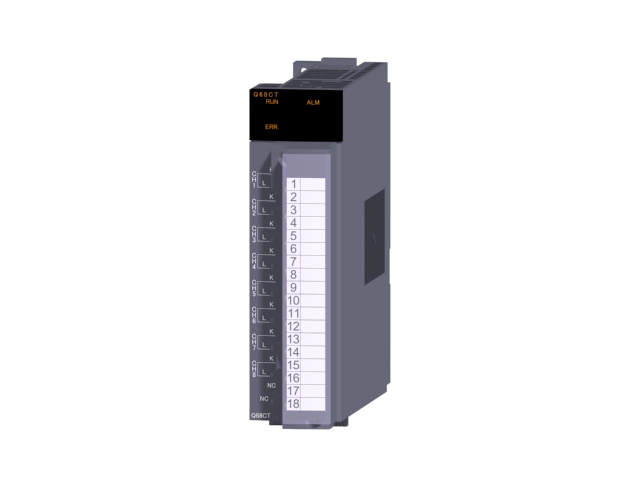

Available on requestQ68CT Mitsubishi MELSEC-Q Series CT input
