Mitsubishi Electric Q68AD-G

Mitsubishi MELSEC-Q Series Analog input

MPN
Q68AD-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q68AD-G?

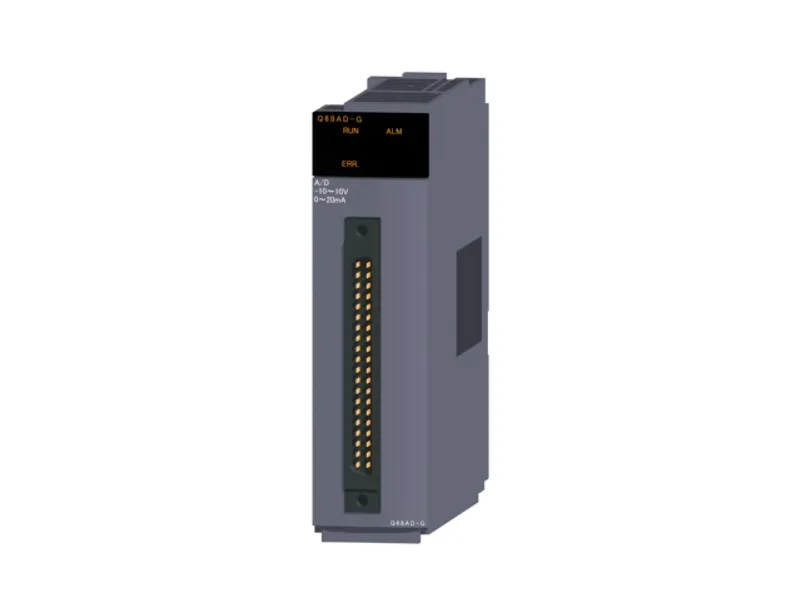

The Mitsubishi Electric Q68AD-G is a analog input in the MELSEC-Q Series. 8 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, 0...16000, -16000...16000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog input
TypeVoltage/current input
SubtypeChannel isolated
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline8 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, 0...16000, -16000...16000, conversion speed: 10 ms/channel, 40-pin connector, channel isolated

Input specifications

Number of analog input points8 points (8 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ or more)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital outputNormal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 (When the scaling function is used: -32768...32767)
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 VNormal resolution mode: 0...4000 (2.5 mV) High resolution mode: 0...16000 (0.625 mV)
I/O characteristics, resolution: Voltage input: 0...5 VNormal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage input: 1...5 VNormal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)Normal resolution mode: -1000...4500 (1.0 mV) High resolution mode: -3000...13500 (0.333 mV)
I/O characteristics, resolution: Voltage input: -10...10 VNormal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV)
I/O characteristics, resolution: Voltage input: User range settingNormal resolution mode: -4000...4000 (0.375 mV) High resolution mode: -12000...12000 (0.333 mV)
I/O characteristics, resolution: Current input: 0...20 mANormal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA)
I/O characteristics, resolution: Current input: 4...20 mANormal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)Normal resolution mode: -1000...4500 (4 µA) High resolution mode: -3000...13500 (1.33 µA)
I/O characteristics, resolution: Current input: User range settingNormal resolution mode: -4000...4000 (1.37 µA) High resolution mode: -12000...12000 (1.33 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracy±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±71.4 ppm/˚C (0.00714 %/˚C)
Common mode characteristicCommon mode voltage Input-Common ground (input voltage 0 V): 500 VAC Common mode voltage rejection ratio (VCM
Sampling cycle10 ms/1 channel
Response time20 ms
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween input terminals and programmable controller power supply, between analog input channels: Transformer
Dielectric withstand voltageBetween input terminals and programmable controller power supply: 500 V AC rms for 1 minute Between analog input channels: 1000 V AC rms for 1 minute
Insulation resistanceBetween input terminals and programmable controller power supply, between analog input channels: 500 V DC, 10 MΩ or higher
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.46 A
External dimensions: Height102 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.16 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q68AD-G: frequently asked questions

When can Q68AD-G be shipped?

Q68AD-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q68AD-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q68AD-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q68AD-G, subject to availability and destination.
