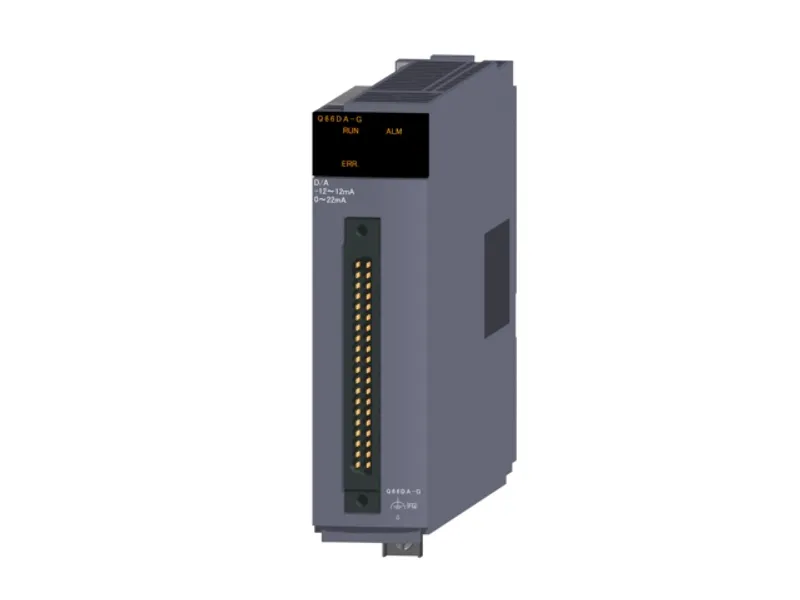

Mitsubishi Electric Q66DA-G

Mitsubishi MELSEC-Q Series Analog output

MPN
Q66DA-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q66DA-G?

The Mitsubishi Electric Q66DA-G is a analog output in the MELSEC-Q Series. 6 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: 0...5 V DC, -10...10 V DC, 0...20 mA DC, 4...20 mA DC, conversion speed: 6 ms/channel, 40-pin connector, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog output
TypeVoltage/current output
SubtypeChannel isolated
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline6 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: 0...5 V DC, -10...10 V DC, 0...20 mA DC, 4...20 mA DC, conversion speed: 6 ms/channel, 40-pin connector, channel isolated

Output specifications

Number of analog output points6 points (6 channels)
Digital inputNormal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383 (When the scaling function is used: -32768...32767)
Analog output: Voltage-12...+12 V DC (external load resistance 1 kΩ...1 MΩ)
Analog output: Current0...20 mA DC (external load resistance 0...600 Ω) 0...22 mA DC (external load resistance 0...500 Ω)
I/O characteristics, resolution: Output rangeDigital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 VNormal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage output: 1...5 VNormal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage output: 1...5 V (extended mode)Normal resolution mode: -1000...4500 (1.0 mV) High resolution mode: -3000...13500 (0.333 mV)
I/O characteristics, resolution: Voltage output: -10...10 VNormal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV)
I/O characteristics, resolution: Voltage output: User range setting 2Normal resolution mode: -4000...4000 (0.75 mV) High resolution mode: -12000...12000 (0.400 mV)
I/O characteristics, resolution: Voltage output: User range setting 3Normal resolution mode: -4000...4000 (0.375 mV) High resolution mode: -12000...12000 (0.210 mV)
I/O characteristics, resolution: Current output: 0...20 mANormal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA)
I/O characteristics, resolution: Current output: 4...20 mANormal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA)
I/O characteristics, resolution: Current output: 4...20 mA (extended mode)Normal resolution mode: -1000...4500 (4 µA) High resolution mode: -3000...13500 (1.33 µA)
I/O characteristics, resolution: Current output: User range setting 1Normal resolution mode: -4000...4000 (1.5 µA) High resolution mode: -12000...12000 (0.95 µA)
Accuracy (accuracy relative to maximum value of analog output value): Reference accuracyWithin ±0.1 %
Accuracy (accuracy relative to maximum value of analog output value): Temperature coefficient±80 ppm/˚C (0.0080 %/˚C)
D/A conversion speed6 ms/channel
Absolute maximum output: Voltage±13 V
Absolute maximum output: Current23 mA
Output short protectionProtected

Common specifications

Isolation methodBetween output terminals and programmable controller power supply, between analog output channels, between external power supply and analog output: Transformer
Dielectric withstand voltageBetween output terminals and programmable controller power supply: 500 V AC rms/minute Between analog output channels: 1000 V AC rms/minute Between external power supply and analog outputs: 500 V AC rms/minute
Insulation resistanceBetween output terminals and programmable controller power supply, between analog output channels, between external power supply and analog output: 500 V DC, 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.26 A (inrush current: 4.8 A, 800 µs or lower)
External interface40-pin connector
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.62 A
External dimensions: Height102 mm
External dimensions: Width27.4 mm
External dimensions: Depth130 mm
Weight0.22 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q66DA-G: frequently asked questions

When can Q66DA-G be shipped?

Q66DA-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q66DA-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q66DA-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q66DA-G, subject to availability and destination.
