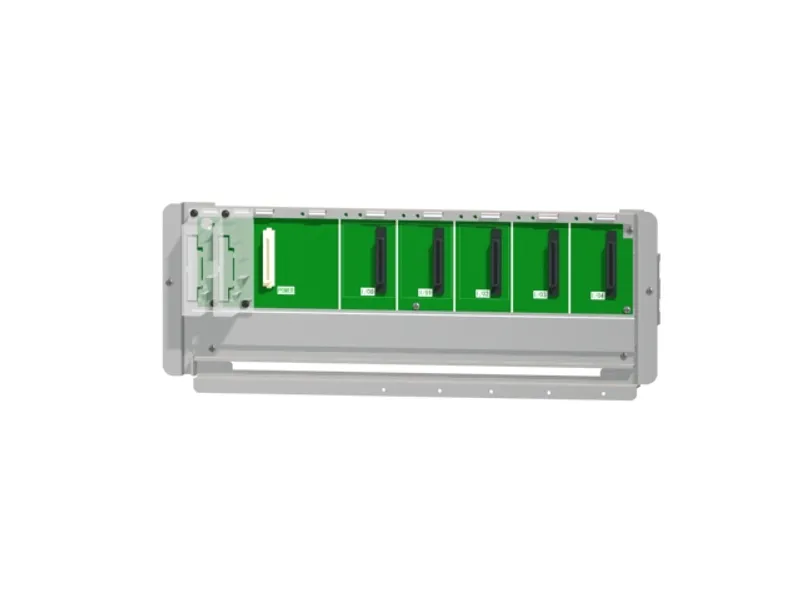

Mitsubishi Electric Q65BLS-D

Mitsubishi MELSEC-Q Series Extension base

MPN
Q65BLS-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q65BLS-D?

The Mitsubishi Electric Q65BLS-D is a extension base in the MELSEC-Q Series. 5 slots, power supply module required, Q Series I/O modules (DIN rail installation). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryExtension base
TypeAnS size Q large type
Outline5 slots, power supply module required, Q Series I/O modules (DIN rail installation)

Specifications

Number of mountable I/O modules5
Possibility of extensionExtendable
Applicable moduleMELSEC-Q series modules
Applicable power supply moduleMELSEC-Q series power supply module
Internal current consumption (5 V DC)0.11 A
External dimensions: Height118 mm
External dimensions: Width304 mm
External dimensions: Depth48.5 mm
Weight0.57 kg
DIN rail mounting adapter typeQ6DIN2 (accessory)

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q65BLS-D: frequently asked questions

When can Q65BLS-D be shipped?

Q65BLS-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q65BLS-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q65BLS-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q65BLS-D, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

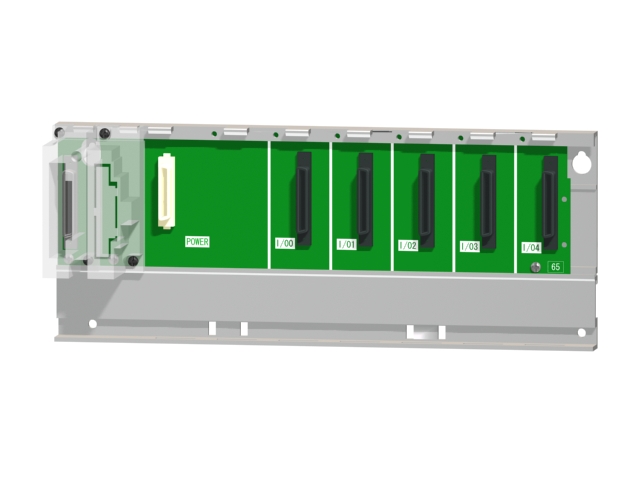

Mitsubishi Electric Q65B – Mitsubishi MELSEC-Q Series Extension base
