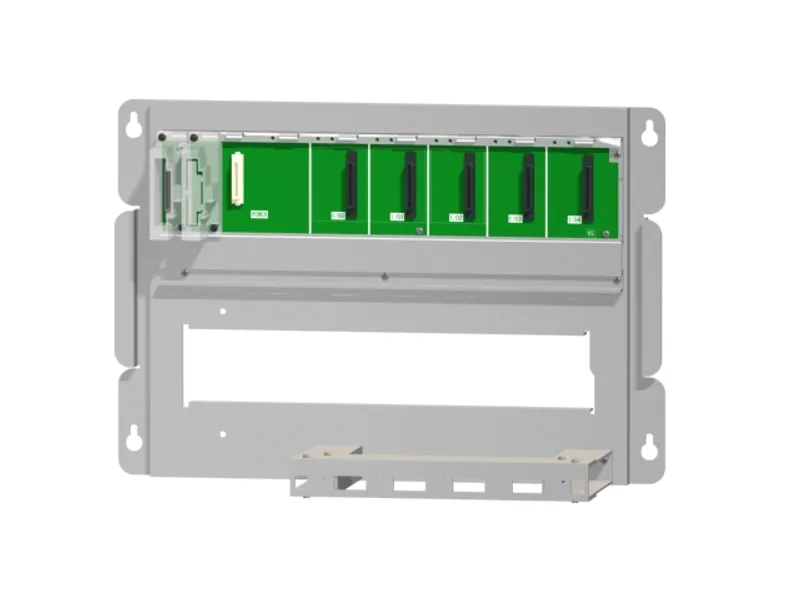

Q65BL Mitsubishi MELSEC-Q Series Extension base

MPN: Q65BL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Base
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q65BL be shipped?

Q65BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q65BL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q65BL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q65BL, subject to availability and destination.

The Mitsubishi Electric Q65BL is a extension base in the MELSEC-Q Series. 5 slots, power supply module required, for Q Series large type I/O modules. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Extension base
Type	Large type
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	5 slots, power supply module required, for Q Series large type I/O modules

Specifications

Number of mountable I/O modules	5
Possibility of extension	Extendable
Applicable module	MELSEC-Q series modules, MELSEC-Q Series Large Type I/O Modules
Applicable power supply module	MELSEC-Q series power supply module
Internal current consumption (5 V DC)	0.11 A
Mounting hole size	M5 screw hole or ø5.5 hole (for M5 screw)
External dimensions: Height	240 mm
External dimensions: Width	352 mm
External dimensions: Depth	110 mm
Weight	1.81 kg
DIN rail mounting adapter type	―
