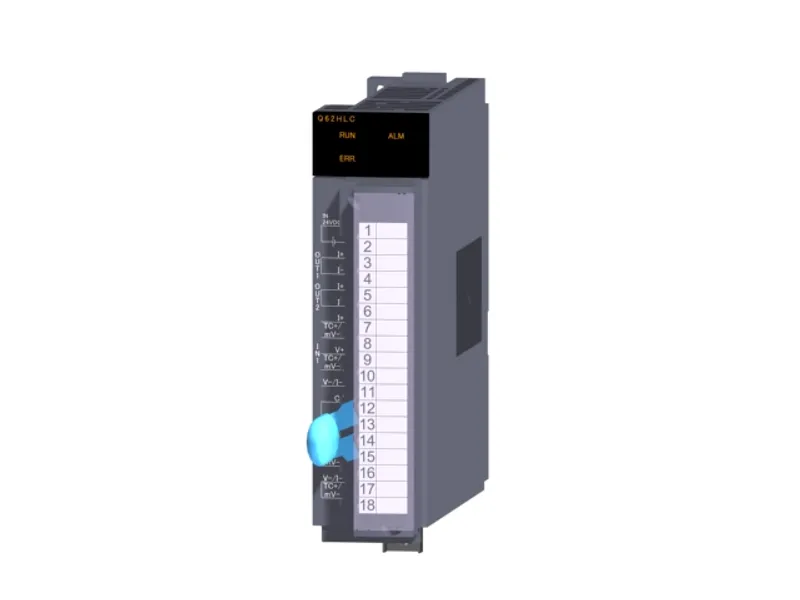

What is the Mitsubishi Electric Q62HLC?
The Mitsubishi Electric Q62HLC is a loop control in the MELSEC-Q Series. 2 channels, input: thermocouple/micro voltage/voltage/current, output: 4...20 mA, 18-point terminal block, channel isolated, 5 PID control modes. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Loop control |
| Sales status | 2029/09 To be end of order (Mitsubishi Electric) |
| Outline | 2 channels, input: thermocouple/micro voltage/voltage/current, output: 4...20 mA, 18-point terminal block, channel isolated, 5 PID control modes |
Specifications
| Number of analog I/O points | 2 points (2 channels) |
Analog input specifications
| Number of input points | 2 points (2 channels) |
| Analog input | Refer to input characteristics and maximum resolution |
| Digital output | 16-bit signed binary |
| Applicable thermocouple | K, J, T, S, R, N, E, B, PLII, W5Re/W26Re |
| Input characteristics, resolution: Input sensor type: Input range | Digital output value (maximum resolution) |
| Input characteristics, resolution: Thermocouple input: K (-200...1372 ˚C) | -2000...13720 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: J (-200...1200 ˚C) | -2000...12000 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: T (-200...400 ˚C) | -2000...4000 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: S (-50...1768 ˚C) | -500...17680 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: R (-50...1768 ˚C) | -500...17680 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: N (0...1300 ˚C) | 0...13000 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: E (-200...1000 ˚C) | -2000...10000 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: B (0...1800 ˚C) | 0...18000 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: PLII (0...1390 ˚C) | 0...13900 (0.1 ˚C) |
| Input characteristics, resolution: Thermocouple input: W5Re/W26Re (0...2300 ˚C) | 0...23000 (0.1 ˚C) |
| Input characteristics, resolution: Micro voltage input: 0...10 mV | 0...20000 (0.5 µV) |
| Input characteristics, resolution: Micro voltage input: 0...100 mV | 0...20000 (5 µV) |
| Input characteristics, resolution: Micro voltage input: -10...10 mV | -10000...10000 (1 µV) |
| Input characteristics, resolution: Micro voltage input: -100...100 mV | -10000...10000 (10 µV) |
| Input characteristics, resolution: Voltage input: 0...1 V | 0...20000 (0.05 mV) |
| Input characteristics, resolution: Voltage input: 1...5 V | 0...20000 (0.2 mV) |
| Input characteristics, resolution: Voltage input: 0...5 V | 0...20000 (0.25 mV) |
| Input characteristics, resolution: Voltage input: 0...10 V | 0...20000 (0.5 mV) |
| Input characteristics, resolution: Voltage input: -1...1 V | -10000...10000 (0.1 mV) |
| Input characteristics, resolution: Voltage input: -5...5 V | -10000...10000 (0.5 mV) |
| Input characteristics, resolution: Voltage input: -10...10 V | -10000...10000 (1 mV) |
| Input characteristics, resolution: Current input: 4...20 mA | 0...20000 (0.8 µA) |
| Input characteristics, resolution: Current input: 0...20 mA | 0...20000 (1 µA) |
| Indication accuracy: Ambient temperature: 23±2 ˚C: Thermocouple (K, J, T, E, PLII) | Less than -100 ˚C: ±1.0 ˚C -100 to less than 500 ˚C: ±0.5 ˚C 500 ˚C or more: ±(indication value (0.1 %) + 1 digit) |
| Indication accuracy: Ambient temperature: 23±2 ˚C: Thermocouple (S, R, N, W5Re/W26Re) | -50 to less than 1000 ˚C: ±1.0 ˚C 1000 ˚C or more: ±(indication value (0.1 %) + 1 digit) |
| Indication accuracy: Ambient temperature: 23±2 ˚C: Thermocouple (B) | Less than 400 ˚C: ±70.0 ˚C 400 to less than 1000 ˚C: ±1.0 ˚C 1000 ˚C or more: ±(indication value (0.1 %) + 1 digit) |
| Indication accuracy: Ambient temperature: 23±2 ˚C: Micro voltage | Full scale × (±0.1 %) |
| Indication accuracy: Ambient temperature: 23±2 ˚C: Voltage | Full scale × (±0.1 %) |
| Indication accuracy: Ambient temperature: 23±2 ˚C: Current | Full scale × (±0.1 %) |
| Indication accuracy: Ambient temperature: 0...55 ゚C: Thermocouple (K, J, T, E, PLII) | Less than -100 ˚C: ±2.0 ˚C -100 to less than 500 ˚C: ±1.0 ˚C 500 ˚C or more: ±(indication value (0.2 %) + 1 digit) |
| Indication accuracy: Ambient temperature: 0...55 ゚C: Thermocouple (S, R, N, W5Re/W26Re) | -50 to less than 1000 ˚C: ±2.0 ˚C 1000 ˚C or more: ±(indication value (0.2 %) + 1 digit) |
| Indication accuracy: Ambient temperature: 0...55 ゚C: Thermocouple (B) | Less than 400 ˚C: ±140.0 ˚C 400 to less than 1000 ˚C: ±2.0 ˚C 1000 ˚C or more: ±(indication value (0.2 %) + 1 digit) |
| Indication accuracy: Ambient temperature: 0...55 ゚C: Micro voltage | Full scale × (±0.2 %) |
| Indication accuracy: Ambient temperature: 0...55 ゚C: Voltage | Full scale × (±0.2 %) |
| Indication accuracy: Ambient temperature: 0...55 ゚C: Current | Full scale × (±0.2 %) |
| Cold junction compensation accuracy: Ambient temperature: 23±2 ˚C | ±0.5 ˚C |
| Cold junction compensation accuracy: Ambient temperature: 0...55 ゚C | ±1.0 ˚C |
| Sampling cycle | 25 ms/2 channels (Stable regardless of the number of used channels) |
| Absolute maximum input: Micro voltage | ±12 V |
| Absolute maximum input: Voltage | ±15 V |
| Absolute maximum input: Current | ±30 mA |
| Input impedance | Thermocouple, Micro voltage, Voltage: 1 MΩ Current: 250 Ω |
| Normal mode rejection ratio | 60 dB or more (50/60 Hz) |
| Common mode rejection ratio | 120 dB or more (50/60 Hz) |
| Input filter: Primary delay digital filter | 0.0...100.0 s (0: Input filter OFF) |
| Sensor correction value setting | Thermocouple: -500.0...500.0 ˚C Micro voltage, voltage, current: -50.00...50.00 % |
| Operation at input wire disconnection: Input: Input range | Operation |
| Operation at input wire disconnection: Thermocouple: All | Up scale |
| Operation at input wire disconnection: Micro voltage: All | Up scale |
| Operation at input wire disconnection: Voltage: 1...5 V | Down scale |
| Operation at input wire disconnection: Voltage: 0...1 V, -1...1 V, 0...5 V, -5...5 V, 0...10 V , -10...10 V | Value near 0 V is displayed. |
| Operation at input wire disconnection: Current: 4...20 mA | Down scale |
| Operation at input wire disconnection: Current: 0...20 mA | Value near 0 mA is displayed. |
Analog output specifications
| Number of output points | 2 points (2 channels) |
| Digital input | 16-bit signed binary |
| Analog output | Current |
| Output characteristics | Digital input value: 0...1000 (when using simplified analog output: 0...4000) Output range : 4...20 mA |
| Maximum resolution | 4 µA |
| Output accuracy: Ambient temperature: 23±2 ˚C | Full scale × (±0.2 %) |
| Output accuracy: Ambient temperature: 0...55 ゚C | Full scale × (±0.4 %) |
| Control output updating period | 25 ms/2 channels (Stable regardless of the number of used channels) |
| Allowable load resistance | 600 Ω or less |
| Output impedance | 5 MΩ |
Common specifications
| Control method | Continuous proportional control |
| PID constants range: PID constants setting | Can be set by auto tuning. |
| PID constants range: Proportional band (P) | Thermocouple: 0.1 to full-scale ˚C Micro voltage, Voltage, Current: 0.1...1000.0 % |
| PID constants range: Integral time (I) | 0.0...3276.7 s |
| PID constants range: Derivative time (D) | 0.0...3276.7 s |
| Set value (SV) setting range | Thermocouple: Input range of the thermocouple to be used Micro voltage, Voltage, Current: Set input range |
| Dead band setting range | Thermocouple: 0.0...100.0 ˚C Micro voltage, Voltage, Current: 0.00...10.00 % |
| Time accuracy | ±0.2 % |
| Isolation method | Between input and grounding, between input channels: Transformer |
| Dielectric withstand voltage | Between input and grounding, between input channels: 500 V AC for 1 minute |
| Insulation resistance | Between input and grounding, between input channels: 500 V DC, 20 MΩ or higher |
| External interface | 18-point terminal block (M3 screw), FG terminal |
| External power supply: Voltage | 24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower) |
| External power supply: Current | 0.07 A (inrush current: 3.6 A, 4 ms or lower) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Internal current consumption (5 V DC) | 0.27 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 112 mm |
| Weight | 0.25 kg |
Specifications
