What is the Mitsubishi Electric Q62DA-FG?

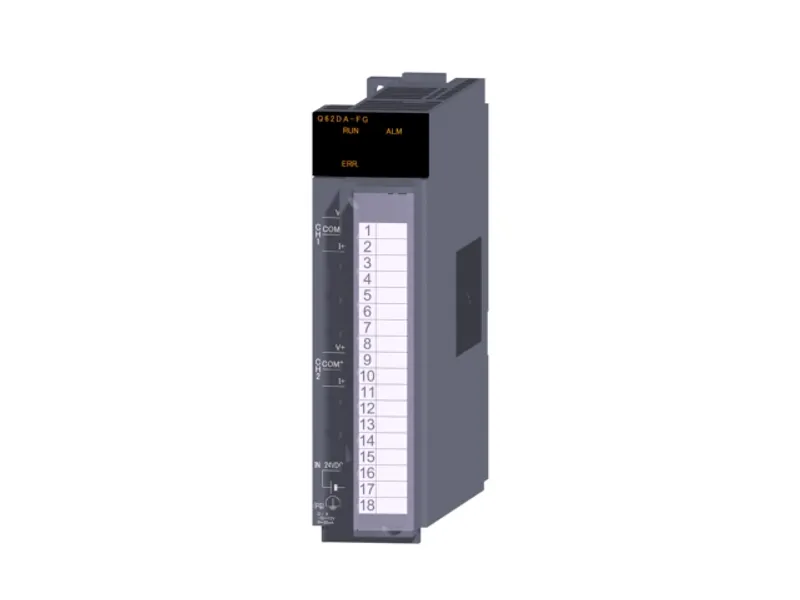

The Mitsubishi Electric Q62DA-FG is a analog output in the MELSEC-Q Series. 2 channels, input (resolution): 0...12000, -12000...12000, -16000...16000: output, -10...10 V DC, 0...20 mA DC, conversion speed: 10 ms/2 channels, 18-point terminal block, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog output
TypeVoltage/current output
SubtypeChannel isolated
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline2 channels, input (resolution): 0...12000, -12000...12000, -16000...16000: output, -10...10 V DC, 0...20 mA DC, conversion speed: 10 ms/2 channels, 18-point terminal block, channel isolated

Output specifications

Number of analog output points2 points (2 channels)
Digital input-12288...+12287, -16384...+16383
Analog output: Voltage-12...+12 V DC (external load resistance 1 kΩ...1 MΩ)
Analog output: Current0...20 mA DC (external load resistance 0...600 Ω) 0...22 mA DC (external load resistance 0...500 Ω)
I/O characteristics, resolution: Output rangeDigital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 V0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage output: 1...5 V0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage output: 1...5 V (extended mode)-3000...13500 (0.333 mV)
I/O characteristics, resolution: Voltage output: -10...10 V-16000...16000 (0.625 mV)
I/O characteristics, resolution: Voltage output: User range setting 2-12000...12000 (0.366 mV)
I/O characteristics, resolution: Voltage output: User range setting 3-12000...12000 (0.183 mV)
I/O characteristics, resolution: Current output: 0...20 mA0...12000 (1.66 µA)
I/O characteristics, resolution: Current output: 4...20 mA0...12000 (1.33 µA)
I/O characteristics, resolution: Current output: 4...20 mA (extended mode)-3000...13500 (1.33 µA)
I/O characteristics, resolution: Current output: User range setting 1-12000...12000 (0.671 µA)
Accuracy (accuracy relative to maximum value of analog output value): Reference accuracyWithin ±0.1 %
Accuracy (accuracy relative to maximum value of analog output value): Temperature coefficient±80 ppm/˚C (0.0080 %/˚C)
D/A conversion speed10 ms/2 channels
Absolute maximum output: Voltage±13 V
Absolute maximum output: Current23 mA
Output monitor: Resolution12 bit
Output monitor: Reference accuracy±0.2 %
Output monitor: Temperature coefficient±160 ppm/˚C (0.0160 %/˚C)
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Transformer Between external power supply and analog output: Transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply, between analog output channels, between external power supply and analog outputs: 1780 V AC rms/3 cycles (altitude 2000 m)
Insulation resistanceBetween I/O terminals and programmable controller power supply, between analog output channels, between external power supply and analog output: 500 V DC, 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.3 A (inrush current: 5.2 A, 300 µs or lower)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.37 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
