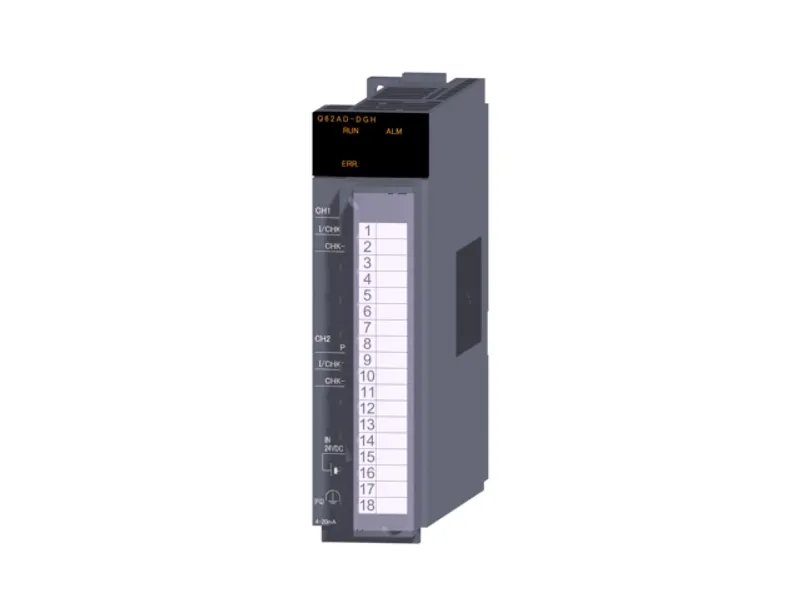

What is the Mitsubishi Electric Q62AD-DGH?

The Mitsubishi Electric Q62AD-DGH is a analog input in the MELSEC-Q Series. 2 channels, input: 4...20 mA DC, output (resolution): 0...32000, 0...64000, conversion speed: 10 ms/2 channels, 18-point terminal block, channel isolated, power supply to 2-wire transmitter. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog input
TypeSignal conditioning
SubtypeChannel isolated
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline2 channels, input: 4...20 mA DC, output (resolution): 0...32000, 0...64000, conversion speed: 10 ms/2 channels, 18-point terminal block, channel isolated, power supply to 2-wire transmitter

Input specifications

Number of analog input points2 points (2 channels)
Analog input: Current4...20 mA DC (input resistance 250 Ω)
Power supply part for 2-wire transmitter: Supply voltage26 ±2 V DC
Power supply part for 2-wire transmitter: Maximum supply current24 mA DC
Power supply part for 2-wire transmitter: Short-circuit protectionAvailable Limit current: 25...35 mA
Power supply part for 2-wire transmitter: Check terminalsAvailable
Digital output16-bit signed binary value: -768...+32767 32-bit signed binary value: -1536...+65535
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Current input: 4...20 mA16-bit: 0...32000 (500.0 nA) 32-bit: 0...64000 (250.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)32-bit: -16000...72000 (250.0 nA)
I/O characteristics, resolution: Current input: User range setting16-bit: 0...32000 (303.2 nA) 32-bit: 0...64000 (151.6 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracy±0.05 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±71.4 ppm/˚C (0.00714 %/˚C)
A/D conversion speed10 ms/2 channels
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between analog input channels: Transformer Between external power supply and analog input: Transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply, between analog input channels, between external power supply and analog inputs: 1780 V AC rms/3 cycles (altitude 2000 m)
Insulation resistanceBetween I/O terminals and programmable controller power supply, between analog input channels, between external power supply and analog input: 500 V DC, 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.19 A (inrush current: 5.5 A, 200 µs or lower)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.33 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
