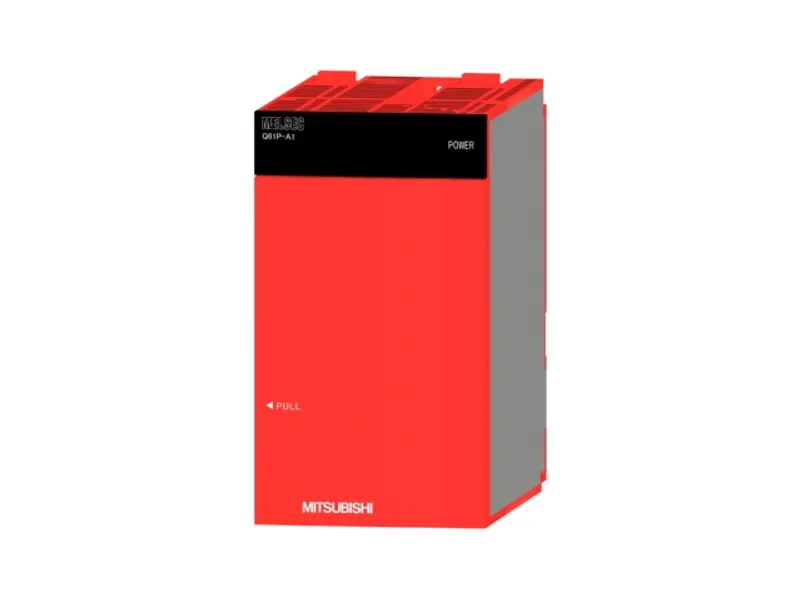

Mitsubishi Electric Q61P-A1

Mitsubishi MELSEC-Q Series Standard type

MPN
Q61P-A1
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q61P-A1 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q61P-A1?

The Mitsubishi Electric Q61P-A1 is a standard type in the MELSEC-Q Series. Input: 100...120 V AC, output: 5 V DC 6 A. Mitsubishi Electric has discontinued it (2009/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryStandard type
TypeAC input
Subtype100...120 V AC input
Sales status2009/03 Discontinued (Mitsubishi Electric)
OutlineInput: 100...120 V AC, output: 5 V DC 6 A

Specifications

Installation positionPower supply module installation slot
Applicable base unitQ3□B, Q3□DB, Q6□B
Input power supply voltage100...120 V AC (-15 %...+10 %)
Input frequency50/60 Hz ±5 %
Input voltage distortionWithin 5 %
Maximum input apparent power105 VA
Inrush current20 A, within 8 ms
Rated output current: 5 V DC6 A
Overcurrent protection: 5 V DC6.6 A or more
Overvoltage protection: 5 V DC5.5...6.5 V
Efficiency70 % or more
Allowable momentary power failure timeWithin 20 ms
Withstand voltageBetween the input and LG batched terminal and the output and FG batched terminal, 2300 V AC per minute (altitude 0...2000 m)
Insulation resistanceInput and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester
Operation indicationLED (Normal: On (green), error: Off)
FuseBuilt-in (user-unchangeable)
Contact output section: ApplicationERR. contact
Contact output section: Rated switching voltage/current24 V DC, 0.5 A
Contact output section: Minimum switching load5 V DC, 1 mA
Contact output section: Response time: OFF to ON10 ms or less
Contact output section: Response time: ON to OFF12 ms or less
Contact output section: Life: Mechanical20 million times or more
Contact output section: Life: ElectricalRated switching voltage/current load: More than 100 thousand times
Contact output section: Surge suppressorNone
Contact output section: FuseNone
External interfaceTerminal block (M3.5 screw)
External dimensions: Height98 mm
External dimensions: Width55.2 mm
External dimensions: Depth90 mm
Weight0.31 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q61P-A1: frequently asked questions

Can I still buy the Q61P-A1 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q61P-A1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q61P-A1 be shipped?

Q61P-A1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q61P-A1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q61P-A1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q61P-A1, subject to availability and destination.
