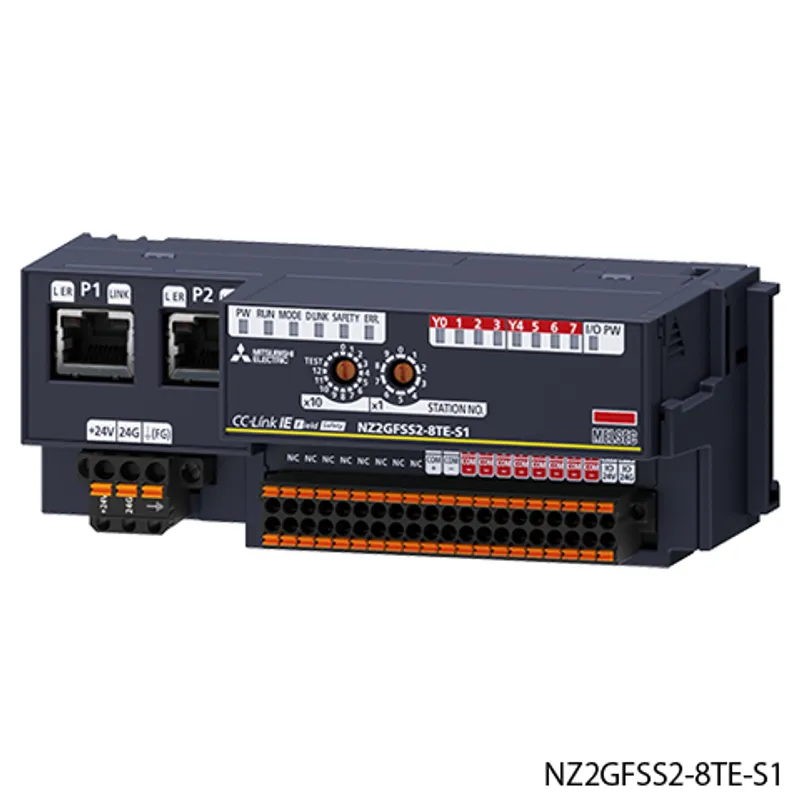

The Mitsubishi Electric NZ2GFSS2-8TE-S1 is a remote I/O in the MELSEC network modules. Transistor output: 8 points (single wiring), 4 points (double wiring), 24 V DC, 0.5 A/point, response time: 0.4 ms, 8 points/common, source + source type, spring-clamp terminal block, Safety protocol version: 2. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Safety I/O
Subtype	Output
Outline	Transistor output: 8 points (single wiring), 4 points (double wiring), 24 V DC, 0.5 A/point, response time: 0.4 ms, 8 points/common, source + source type, spring-clamp terminal block, Safety protocol version: 2

Specifications

Output type	Source + source type
Number of output points	8 points (single wiring), 4 points (double wiring)
Rated load voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current	0.5 A/point
Maximum inrush current	1.0 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.5 V DC (TYP.) 0.5 A, 0.8 V DC (MAX.) 0.5 A
Output circuit response time: OFF to ON	0.4 ms or less (24 V DC)
Output circuit response time: ON to OFF	0.4 ms or less (24 V DC)
Safety remote station refresh response processing time	2.0 ms
Output response time of safety remote station	Output circuit response time
Surge suppressor	Zener diode
Protection function	Output overload protection function
External power supply for output part: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for output part: Current	70 mA
External power supply for output part: Protection function	External power supply overvoltage protection function, external power supply overcurrent protection function
Output common terminal arrangement	8 points/common (two-piece spring clamp terminal block)
Output isolation method	Photocoupler
Availability of connecting extension module	Connectable (Max. one module)
Station type	Remote device station
Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Cyclic transmission: RX/RY points	80 points
Cyclic transmission: RWr/RWw points	32 points
Cyclic transmission: SA\X/SA\Y points	32 points
Applicable safety protocol version	2 (fixed)
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	160 mA
Module power supply: Protection function	Module power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse	1.6 A (not replaceable)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) Input part, external power supply part: 40-point two-piece spring clamp terminal block (push-in)
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	50 mm
External dimensions: Width	142 mm
External dimensions: Depth	68 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-40...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III
