What is the Mitsubishi Electric NZ2GFSS2-8D-S1?

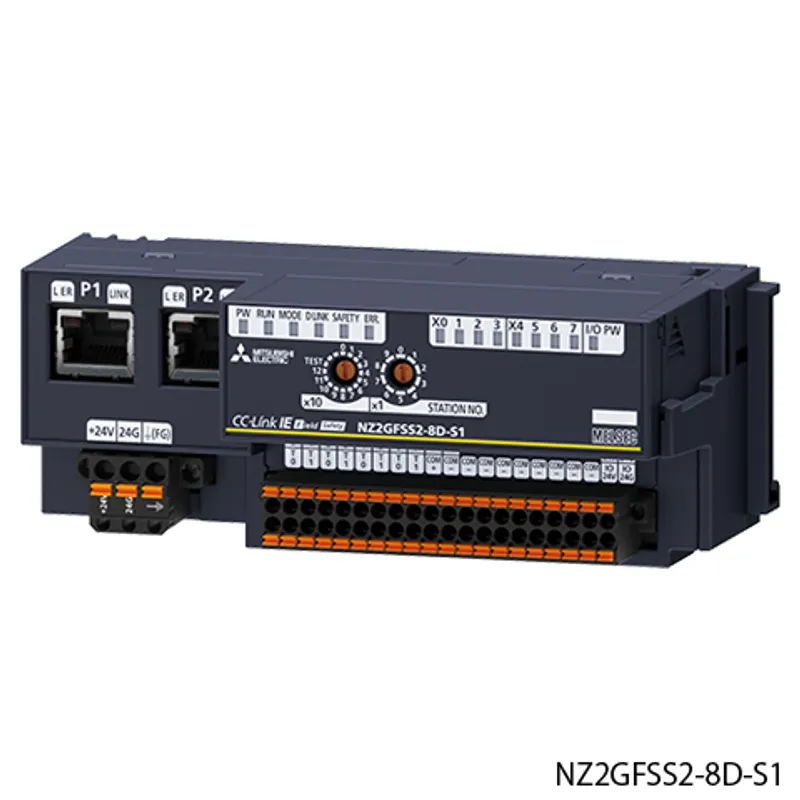

The Mitsubishi Electric NZ2GFSS2-8D-S1 is a remote I/O in the MELSEC network modules. DC input: 8 points (single wiring), 4 points (double wiring), 24 V DC, 7 mA, response time: 1...70 ms, 8 points/common, negative common type, spring-clamp terminal block, Safety protocol version: 2. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeSafety I/O
SubtypeInput
OutlineDC input: 8 points (single wiring), 4 points (double wiring), 24 V DC, 7 mA, response time: 1...70 ms, 8 points/common, negative common type, spring-clamp terminal block, Safety protocol version: 2

Specifications

Input typeDC input (negative common type)
Number of input points8 points (single wiring) 4 points (double wiring)
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current7.0 mA TYP. (24 V DC)
Maximum number of simultaneous input points100 %
ON voltage/ON current12 V DC or more/3 mA or more
OFF voltage/OFF current5 V DC or less/1.3 mA or less
Input resistanceApprox. 2.6 kΩ
Input circuit response time: OFF to ON0.4 ms or less (24 V DC)
Input circuit response time: ON to OFF0.4 ms or less (24 V DC)
Safety remote station refresh response processing time2.0 ms
Input response time of safety remote stationInput circuit response time + Input response time (1.0 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 50 ms, 70 ms)
External power supply for input part: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for input part: Current100 mA
External power supply for input part: Protection functionExternal power supply overvoltage protection function, external power supply overcurrent protection function
Power supply current for input device (COM+)0.4 A/terminal
Input common terminal arrangement8 points/common (two-piece spring clamp terminal block)
Input isolation methodPhotocoupler
Availability of connecting extension moduleConnectable (Max. one module)
Station typeRemote device station
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Cyclic transmission: RX/RY points80 points
Cyclic transmission: RWr/RWw points32 points
Cyclic transmission: SA\X/SA\Y points32 points
Applicable safety protocol version2 (fixed)
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current150 mA
Module power supply: Protection functionModule power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse1.6 A (not replaceable)
External interfaceCommunication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) Input part, external power supply part: 40-point two-piece spring clamp terminal block (push-in)
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height50 mm
External dimensions: Width142 mm
External dimensions: Depth68 mm
Weight0.25 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-40...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III
