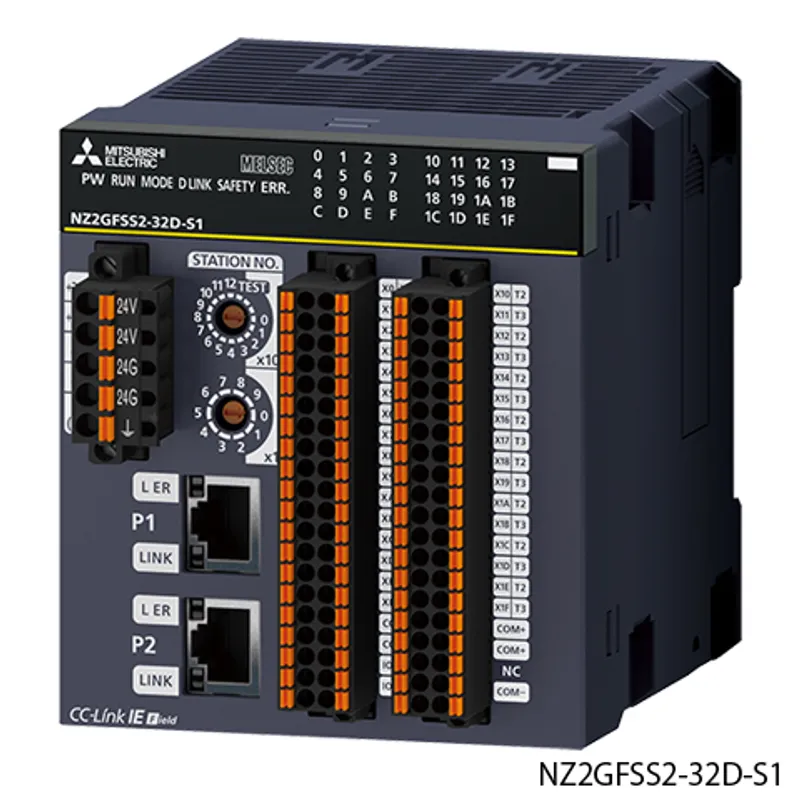

NZ2GFSS2-32D-S1 Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GFSS2-32D-S1 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GFSS2-32D-S1 be shipped?

NZ2GFSS2-32D-S1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GFSS2-32D-S1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GFSS2-32D-S1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GFSS2-32D-S1, subject to availability and destination.

The Mitsubishi Electric NZ2GFSS2-32D-S1 is a remote I/O in the MELSEC network modules. DC input: 32 points (single wiring), 16 points (double wiring), 24 V DC, 6 mA, response time: 1...50 ms, 32 points/common, negative common type, spring-clamp terminal block, Safety protocol version: 2. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Safety I/O
Subtype	Input
Outline	DC input: 32 points (single wiring), 16 points (double wiring), 24 V DC, 6 mA, response time: 1...50 ms, 32 points/common, negative common type, spring-clamp terminal block, Safety protocol version: 2

Specifications

Input type	DC input (negative common type)
Number of input points	32 points (single wiring) 16 points (double wiring)
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	6.0 mA TYP. (24 V DC)
Maximum number of simultaneous input points	100 % (front mounting), when any installation method other than the front mounting is performed, refer to the derating chart.
ON voltage/ON current	15 V DC or more/2 mA or more
OFF voltage/OFF current	5 V DC or less/0.5 mA or less
Input resistance	Approx. 2.0 kΩ
Input circuit response time: OFF to ON	0.4 ms or less (24 V DC)
Input circuit response time: ON to OFF	0.4 ms or less (24 V DC)
Safety remote station refresh response processing time	2.0 ms
Input response time of safety remote station	Input circuit response time + Input response time (1 ms, 5 ms, 10 ms, 20 ms, 50 ms)
External power supply for input part: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for input part: Current	40 mA
External power supply for input part: Protection function	External power supply overvoltage protection function, external power supply overcurrent protection function
External power supply for input part: Fuse	8 A (not replaceable)
Power supply current for input device (COM+)	0.4 A/terminal
Input common terminal arrangement	32 points/common (two-piece spring clamp terminal block)
Input isolation method	Photocoupler
Availability of connecting extension module	Connectable (Max. one module)
Station type	Remote device station
Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Cyclic transmission: RX/RY points	80 points
Cyclic transmission: RWr/RWw points	32 points
Cyclic transmission: SA\X/SA\Y points	64 points
Applicable safety protocol version	2 (fixed)
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	230 mA
Module power supply: Protection function	Module power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse	1.6 A (not replaceable)
Module power supply: Allowable momentary power failure time	Within 10 ms
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) Input part, external power supply part: 40-point two-piece spring clamp terminal block (push-in)
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	100 mm
External dimensions: Width	90 mm
External dimensions: Depth	113 mm
Weight	0.45 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-40...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R Safety Application Guide (SH-081538ENG-H)	PDF · 31.41MB
CC-Link IE Field Network Remote I/O Module (With Safety Functions) User's Manual (SH-082611ENG-E)	PDF · 12.59MB
Safety Guidelines (IB-0800686E-D)	PDF · 2.71MB
