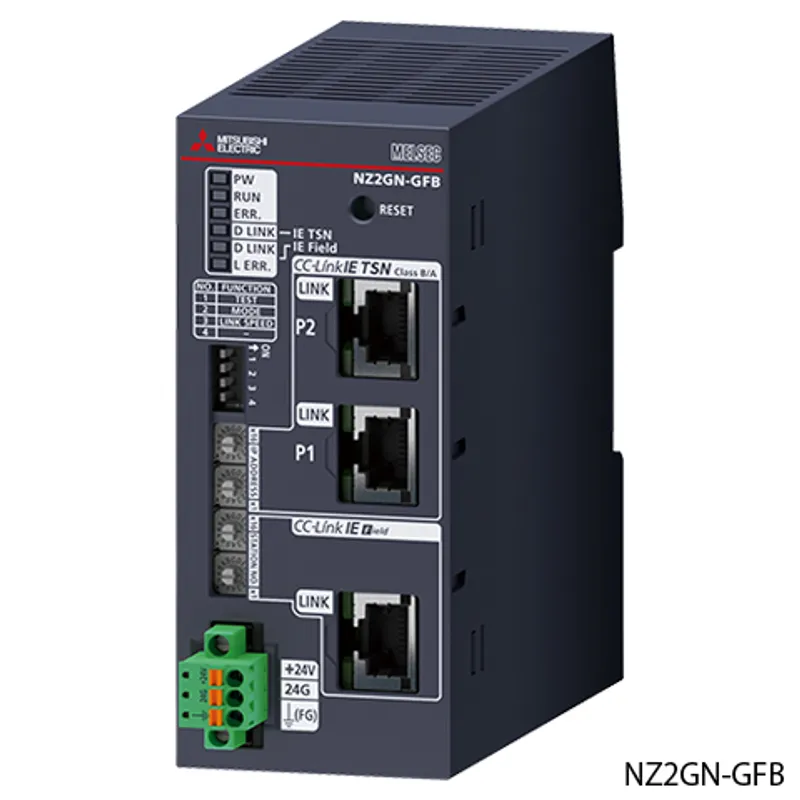

NZ2GN-GFB Mitsubishi MELSEC network modules Bridge

MPN: NZ2GN-GFB · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE TSN
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GN-GFB be shipped?

NZ2GN-GFB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GN-GFB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GN-GFB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GN-GFB, subject to availability and destination.

The Mitsubishi Electric NZ2GN-GFB is a bridge in the MELSEC network modules. CC-Link IE TSN-CC-Link IE Field Network bridge module, max. remote input: 16384 points, max. remote output: 16384 points. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge
Type	Bridge
Subtype	CC-Link IE Field bridge
Outline	CC-Link IE TSN-CC-Link IE Field Network bridge module, max. remote input: 16384 points, max. remote output: 16384 points

Specifications

CC-Link IE TSN side: Station type	Remote station
CC-Link IE TSN side: CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
CC-Link IE TSN side: CC-Link IE TSN Protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN side: CC-Link IE TSN Protocol version: CC-Link IE TSN Class A	Protocol version 2.0
CC-Link IE TSN side: Maximum response time for time-managed polling: CC-Link IE TSN Class A	8192 µs
CC-Link IE TSN side: Maximum number of link points: Remote input (RX)	16K points (16384 points, 2K bytes)
CC-Link IE TSN side: Maximum number of link points: Remote output (RY)	16K points (16384 points, 2K bytes)
CC-Link IE TSN side: Maximum number of link points: Remote register (RWw)	2080 points (4160 bytes)
CC-Link IE TSN side: Maximum number of link points: Remote register (RWr)	2080 points (4160 bytes)
CC-Link IE TSN side: Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
CC-Link IE TSN side: Multicast filter	Available
CC-Link IE Field Network side: Station type	Manager station and local stations
CC-Link IE Field Network side: Maximum number of link points per network: Remote input (RX)	16K points (16384 points, 2K bytes)
CC-Link IE Field Network side: Maximum number of link points per network: Remote output (RY)	16K points (16384 points, 2K bytes)
CC-Link IE Field Network side: Maximum number of link points per network: Remote register (RWw)	2K points (2048 points, 4K bytes)
CC-Link IE Field Network side: Maximum number of link points per network: Remote register (RWr)	2K points (2048 points, 4K bytes)
CC-Link IE Field Network side: Maximum number of link points per station: Remote input (RX)	Manager station: 16K points (16384 points, 2K bytes) Local station: 2K points (2048 points, 256 bytes)
CC-Link IE Field Network side: Maximum number of link points per station: Remote output (RY)	Manager station: 16K points (16384 points, 2K bytes) Local station: 2K points (2048 points, 256 bytes)
CC-Link IE Field Network side: Maximum number of link points per station: Remote register (RWw)	Manager station: 2K points (2048 points, 4K bytes) Local station: 1K points (1042 points, 2K bytes)
CC-Link IE Field Network side: Maximum number of link points per station: Remote register (RWr)	Manager station: 2K points (2048 points, 4K bytes) Local station: 1K points (1024 points, 2K bytes)
CC-Link IE Field Network side: Maximum number of connected stations: Manager station	32
CC-Link IE Field Network side: Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.)

Common specifications

Protection degree	IP2X
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block)
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	310 mA
External dimensions: Height	114.5 mm
External dimensions: Width	49 mm
External dimensions: Depth	124 mm
Weight	0.26 kg

Ethernet specifications

CC-Link IE TSN side: Data transmission speed	1 Gbps/100 Mbps
CC-Link IE TSN side: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
CC-Link IE TSN side: Interface	RJ45 (AUTO MDI/MDI-X)
CC-Link IE TSN side: Maximum frame size	1518 bytes
CC-Link IE TSN side: Maximum segment length	100 m
CC-Link IE TSN side: Number of cascaded connections	Consult the manufacturer of the switching hub used.
CC-Link IE TSN side: IP version	IPv4
CC-Link IE Field Network side: Data transmission speed	1 Gbps
CC-Link IE Field Network side: Communication mode	1000BASE-T: Full-duplex
CC-Link IE Field Network side: Interface	RJ45 (AUTO MDI/MDI-X)
CC-Link IE Field Network side: Maximum segment length	100 m (complies with ANSI/TIA/EIA-568-B (Category 5e))
CC-Link IE Field Network side: Number of cascaded connections	Maximum 20 modules

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE TSN-CC-Link IE Field Network Bridge Module User's Manual (SH-082571ENG-E)	PDF · 25.06MB
Before Using the Product (BCN-P5999-1540-A)	PDF · 0.32MB
