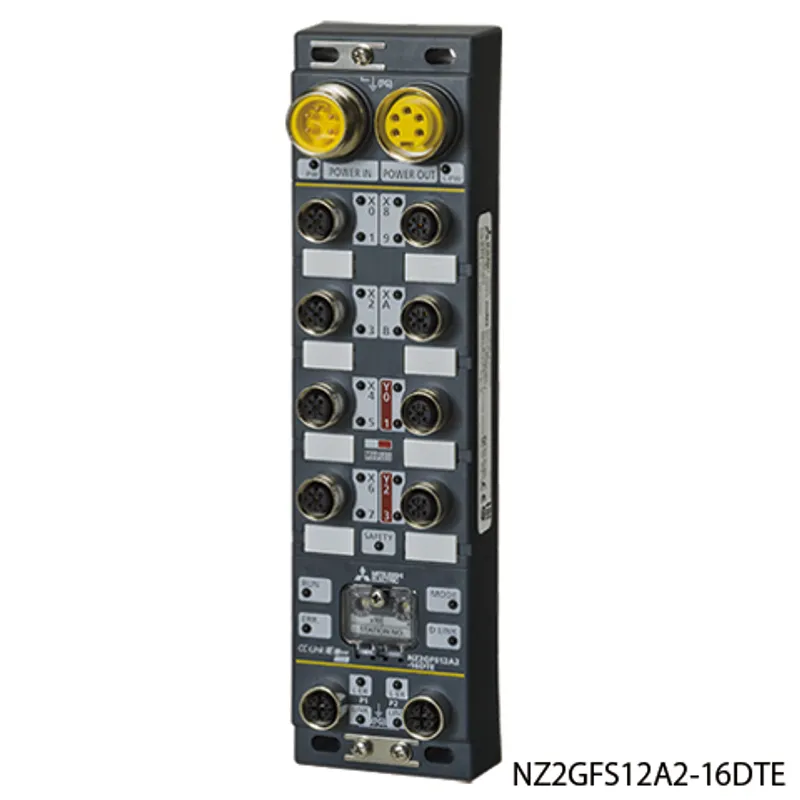

Mitsubishi Electric NZ2GFS12A2-16DTE

Mitsubishi MELSEC network modules Remote I/O

MPN
NZ2GFS12A2-16DTE
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2GFS12A2-16DTE (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric NZ2GFS12A2-16DTE?

The Mitsubishi Electric NZ2GFS12A2-16DTE is a remote I/O in the MELSEC network modules. DC input: 12 points (single wiring) 6 points (double wiring), 24 V DC, 6 mA, response time: 0...1000 ms, 12 points/common, negative common, transistor output: 4 points (single wiring), 2 points (double wiring), 24 V DC, 1 A/point, response time: 10 ms, 4 points/common, source + source type, waterproof connector type, Powered by Molex. Mitsubishi Electric has discontinued it (2023/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeSafety I/O
SubtypeI/O
Sales status2023/03 Discontinued (Mitsubishi Electric)
OutlineDC input: 12 points (single wiring) 6 points (double wiring), 24 V DC, 6 mA, response time: 0...1000 ms, 12 points/common, negative common, transistor output: 4 points (single wiring), 2 points (double wiring), 24 V DC, 1 A/point, response time: 10 ms, 4 points/common, source + source type, waterproof connector type, Powered by Molex

Specifications

Input typeDC input (negative common type)
Number of input points12 points (single wiring) 6 points (double wiring)
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current6 mA TYP. (24 V DC)
Maximum number of simultaneous input points100 %
ON voltage/ON current11 V DC or more/2 mA or more
OFF voltage/OFF current5 V DC or less/1.5 mA or less
Input resistanceApprox. 4 kΩ
Input circuit response time: OFF to ON0.5 ms or less (24 V DC)
Input circuit response time: ON to OFF1.5 ms or less (24 V DC)
Safety remote station refresh response processing time10 ms
Input response time of safety remote stationInput circuit response time + Input ON/OFF delay setting (0...1000 ms in 1 ms steps) (Initial setting: 5 ms)
Power supply current for input device0.4 A/terminal
Input common terminal arrangement12 points/common
Input isolation methodNon-isolation
Output typeTransistor output (source + source type)
Number of output points4 points (single wiring), 2 points (double wiring)
Rated load voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Load power supply: Protection functionLoad power supply overvoltage protection function, load power supply overcurrent protection function
Load power supply: Max. current8 A
Maximum load current1.0 A/point
Maximum inrush currentCurrent is limited by the overload protection function.
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON1.0 V DC or less
Output circuit response time: OFF to ON10 ms
Output circuit response time: ON to OFF10 ms
Output response time of safety remote stationOutput circuit response time
Surge suppressorZener diode
Protection functionOutput overload short circuit protection
Output common terminal arrangement4 points/common
Output isolation methodPhotocoupler
Station typeRemote device station
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP67
Interval of the input diagnostic function execution12 ms maximum
Interval of the output diagnostic function execution2 s maximum
Cyclic transmission: RX/RY points80 points
Cyclic transmission: RWr/RWw points16 points
Cyclic transmission: SA\X/SA\Y pointsSA\X: 28 points SA\Y: 4 points
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current190 mA
Module power supply: Protection functionModule power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Max. current8 A
External interfaceModule power supply part: 7/8" waterproof connector, 5 pins, male (IN)/female (OUT) (sold separately) I/O part: M12 waterproof connector, 5 pins, female, A-code (sold separately) Communication part: M12 waterproof connector, 8 pins, female, X-code (sold separately)
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height235 mm
External dimensions: Width60 mm
External dimensions: Depth48.5 mm
Weight0.89 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidityCompliant with IP67
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside/outside a control panel
Safety elementHFT=1, SIL3 PLe, SC 3, Type B
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2GFS12A2-16DTE: frequently asked questions

Can I still buy the NZ2GFS12A2-16DTE now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2GFS12A2-16DTE, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2GFS12A2-16DTE be shipped?

NZ2GFS12A2-16DTE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GFS12A2-16DTE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GFS12A2-16DTE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GFS12A2-16DTE, subject to availability and destination.
