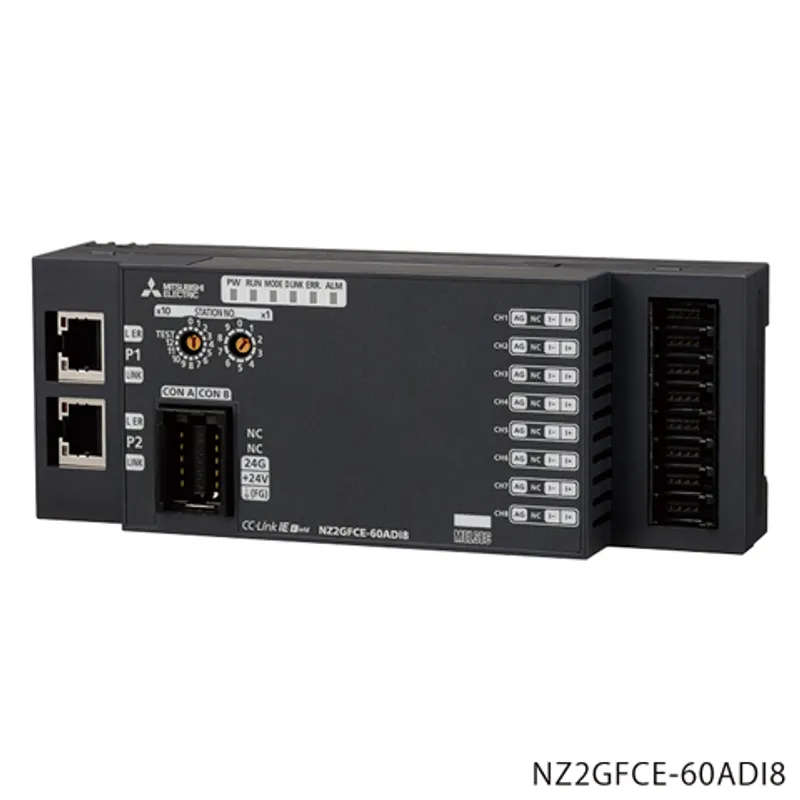

NZ2GFCE-60ADI8 Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GFCE-60ADI8 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GFCE-60ADI8 be shipped?

NZ2GFCE-60ADI8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GFCE-60ADI8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GFCE-60ADI8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GFCE-60ADI8, subject to availability and destination.

The Mitsubishi Electric NZ2GFCE-60ADI8 is a remote I/O in the MELSEC network modules. 8 channels, input: 0...20 mA DC, output (resolution): 0...16000, conversion speed: 1 ms/channel, e-CON type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Analog I/O
Subtype	Analog input
Outline	8 channels, input: 0...20 mA DC, output (resolution): 0...16000, conversion speed: 1 ms/channel, e-CON type

Input specifications

Number of analog input points	8 points (8 channels)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Digital output	-16384...16383
I/O characteristics, resolution: Input range	Digital output value (maximum resolution)
I/O characteristics, resolution: Current input: 0...20 mA	0...16000 (1.25 µA)
I/O characteristics, resolution: Current input: 4...20 mA	0...16000 (1 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ﾟC	±0.2 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ﾟC	±0.3 %
A/D conversion speed	1 ms/channel
Absolute maximum input: Current	±30 mA

Common specifications

Isolation method	Between communication system terminals and all analog inputs: Digital isolator Between power supply system terminals and all analog inputs: Transformer Between input channels: Non-isolation
Dielectric withstand voltage	Between all power supply and communication system terminals and all analog input terminals: 500 V DC for 1 minute
Availability of connecting extension module	Not connectable
Station type	Remote device station
Cyclic transmission: RX/RY points	48 points
Cyclic transmission: RWr/RWw points	24 points
Module power supply: Voltage	24 V DC (20.4...28.8 V DC)
Module power supply: Current	150 mA (inrush current: 13.0 A, 0.2 ms or less)
External interface	Communication part: RJ45 connector Module power supply part: One-touch connector plug for power supply and FG I/O part: Sensor connector (e-CON)
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	65 mm
External dimensions: Width	175 mm
External dimensions: Depth	43.5 mm
Weight	0.22 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
