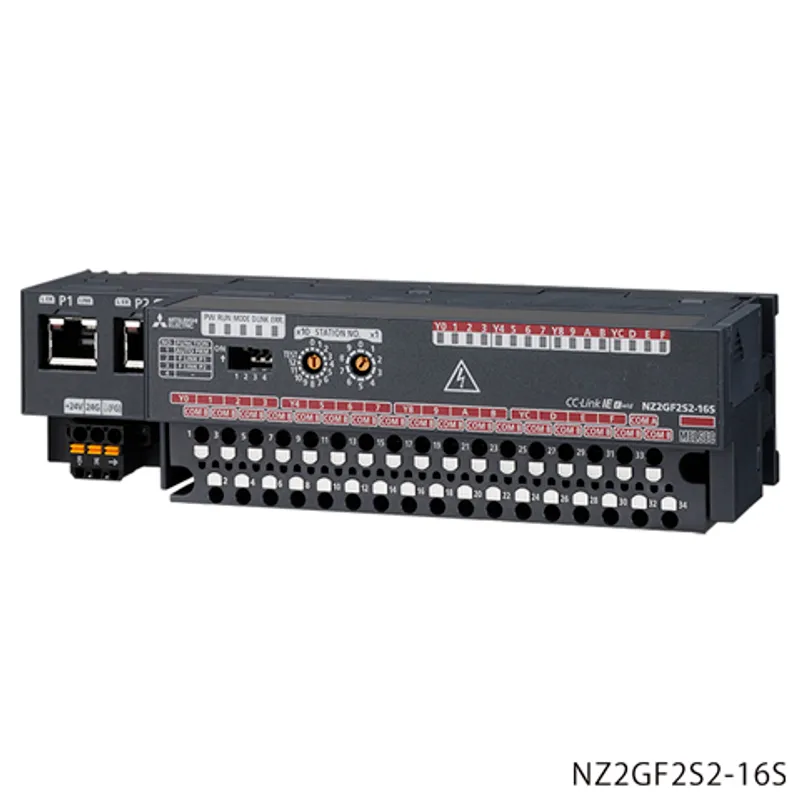

Mitsubishi Electric NZ2GF2S2-16S

Mitsubishi MELSEC network modules Remote I/O

MPN
NZ2GF2S2-16S
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2GF2S2-16S (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric NZ2GF2S2-16S?

The Mitsubishi Electric NZ2GF2S2-16S is a remote I/O in the MELSEC network modules. Triac output: 16 points, 100...240 V AC, 0.6 A/point, 4.8 A/common, response time: 1 ms + 0.5 cycles, 16 points/common, 2-wire terminal block type. Mitsubishi Electric has discontinued it (2024/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeOutput
Sales status2024/09 Discontinued (Mitsubishi Electric)
OutlineTriac output: 16 points, 100...240 V AC, 0.6 A/point, 4.8 A/common, response time: 1 ms + 0.5 cycles, 16 points/common, 2-wire terminal block type

Output specifications

Output typeTRIAC output
Number of output points16 points
Rated load voltage, frequency100...240 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Maximum load current0.6 A/point, 4.8 A/common
Load voltage distortion rateWithin 5 %
Minimum load voltage/current50 V AC 100 mA, 100 V AC 10 mA, 240 V AC 10 mA
Maximum inrush current25 A, 10 ms or less
Leakage current at OFF3 mA or less (at 200 V AC, 60 Hz), 1.5 mA or less (at 100 V AC, 60 Hz)
Maximum voltage drop at ON1.5 V or less (at 0.6 A)
Output response time: OFF to ON1 ms or less
Output response time: ON to OFF1 ms + 0.5 cycles or less (rated load, resistive load)
Surge suppressorCR absorber
FuseNone (attaching a fuse to each external wiring is recommended.)
Output common terminal arrangement16 points/common (2-wire, spring clamp terminal block type)

Common specifications

Dielectric withstand voltageBetween all AC external terminals and ground: 2300 V AC rms for 1 minute Between all DC external terminals and ground: 510 V AC rms for 1 minute
Insulation resistanceBetween all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP1X
Availability of connecting extension moduleConnectable (Max. one module)
Station typeRemote device station
Cyclic transmission: RX/RY points16 points × (1 + number of extension modules)
Cyclic transmission: RWr/RWw points20 points
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current170 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: Two-piece spring clamp terminal block
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height50 mm
External dimensions: Width200 mm
External dimensions: Depth68 mm
Weight0.45 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2GF2S2-16S: frequently asked questions

Can I still buy the NZ2GF2S2-16S now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2GF2S2-16S, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2GF2S2-16S be shipped?

NZ2GF2S2-16S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF2S2-16S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF2S2-16S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2S2-16S, subject to availability and destination.
