What is the Mitsubishi Electric NZ2GFCE3-16D?

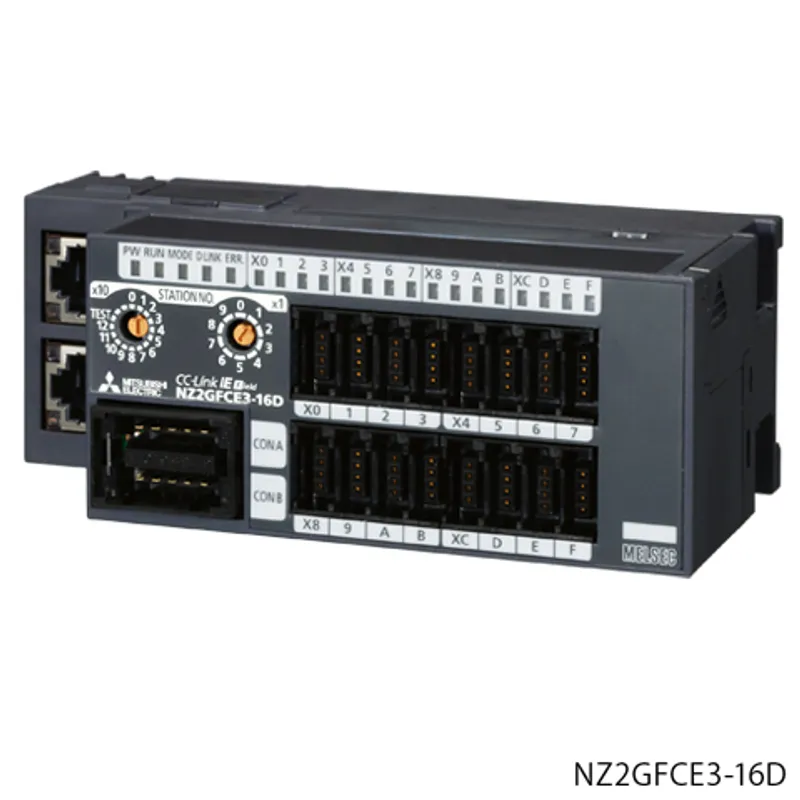

The Mitsubishi Electric NZ2GFCE3-16D is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC 4 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 16 points/common, positive common type, 3-wire sensor connector (e-CON) type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput
OutlineDC input: 16 points, 24 V DC 4 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 16 points/common, positive common type, 3-wire sensor connector (e-CON) type

Input specifications

Input typeDC input (positive common type)
Number of input points16 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current4.0 mA TYP. (24 V DC)
ON voltage/ON current17 V or more/3 mA or more
OFF voltage/OFF current5 V or less/1.5 mA or less
Input resistance5.7 kΩ
Input response time: OFF to ON0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement16 points/common (3-wire, sensor connector (e-CON) type)
Input isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Availability of connecting extension moduleConnectable (Max. one module)
Station typeRemote device station
Cyclic transmission: RX/RY points16 points × (1 + number of extension modules)
Cyclic transmission: RWr/RWw points8 points
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current180 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part: RJ45 connector Module power supply part: One-touch connector plug for power supply and FG I/O part: Sensor connector (e-CON)
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height50 mm
External dimensions: Width133 mm
External dimensions: Depth68 mm
Weight0.27 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2GFCE3-16D: frequently asked questions

When can NZ2GFCE3-16D be shipped?

NZ2GFCE3-16D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GFCE3-16D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GFCE3-16D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GFCE3-16D, subject to availability and destination.
