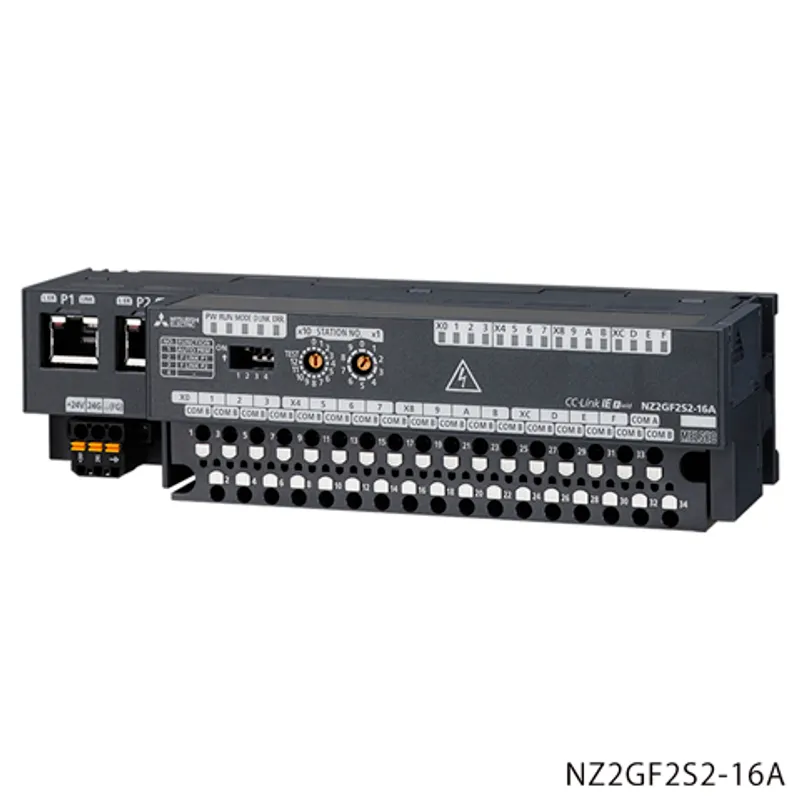

NZ2GF2S2-16A Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GF2S2-16A · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2GF2S2-16A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the NZ2GF2S2-16A now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2GF2S2-16A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2GF2S2-16A be shipped?

NZ2GF2S2-16A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF2S2-16A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF2S2-16A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2S2-16A, subject to availability and destination.

The Mitsubishi Electric NZ2GF2S2-16A is a remote I/O in the MELSEC network modules. AC input: 16 points, 100...120 V AC 8.2 mA (100 V AC, 60 Hz)/6.8 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 2-wire spring-clamp terminal block. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Sales status	2023/12 Discontinued (Mitsubishi Electric)
Outline	AC input: 16 points, 100...120 V AC 8.2 mA (100 V AC, 60 Hz)/6.8 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 2-wire spring-clamp terminal block

Input specifications

Input type	AC input
Number of input points	16 points
Rated input voltage, frequency	100...120 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortion	Within 5 %
Rated input current	8.2 mA (100 V AC, 60 Hz) 6.8 mA (100 V AC, 50 Hz)
Inrush current	Maximum 200 mA, within 1 ms
ON voltage/ON current	80 V AC or more/5 mA or more (50 Hz, 60 Hz)
OFF voltage/OFF current	30 V AC or less/1.7 mA or less (50 Hz, 60 Hz)
Input impedance	Approx. 15 kΩ (60 Hz), approx. 18 kΩ (50 Hz)
Input response time: OFF to ON	20 ms or less (100 V AC, 60 Hz)
Input response time: ON to OFF	20 ms or less (100 V AC, 60 Hz)
Input common terminal arrangement	16 points/common (2-wire, spring clamp terminal block type)

Common specifications

Dielectric withstand voltage	Between all AC external terminals and ground: 1400 V AC rms for 1 minute Between all DC external terminals and ground: 510 V AC rms for 1 minute
Insulation resistance	Between all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP1X
Availability of connecting extension module	Connectable (Max. one module)
Station type	Remote device station
Cyclic transmission: RX/RY points	16 points × (1 + number of extension modules)
Cyclic transmission: RWr/RWw points	20 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	130 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: Two-piece spring clamp terminal block
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	50 mm
External dimensions: Width	200 mm
External dimensions: Depth	68 mm
Weight	0.4 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
