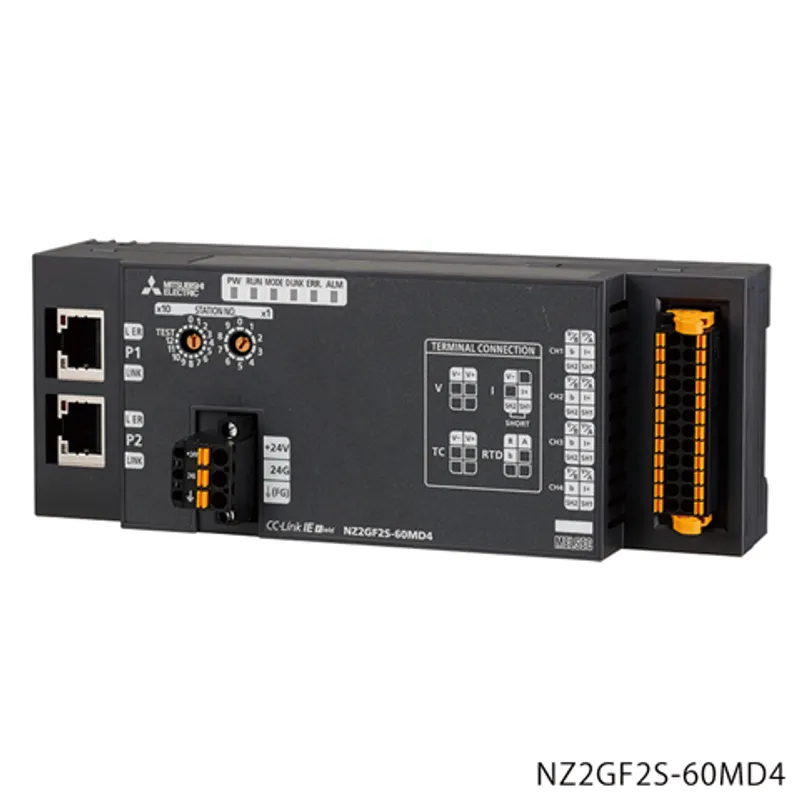

NZ2GF2S-60MD4 Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GF2S-60MD4 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GF2S-60MD4 be shipped?

NZ2GF2S-60MD4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF2S-60MD4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF2S-60MD4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2S-60MD4, subject to availability and destination.

The Mitsubishi Electric NZ2GF2S-60MD4 is a remote I/O in the MELSEC network modules. 4 channels, 5 input types (voltage, current, micro voltage, thermocouple, RTD), conversion speed: 40 ms/4 channels. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Analog I/O
Subtype	Multiple input
Outline	4 channels, 5 input types (voltage, current, micro voltage, thermocouple, RTD), conversion speed: 40 ms/4 channels

Specifications

Number of analog input points	4 points (4 channels)
Analog input: Voltage	-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Analog input: Micro voltage	-100...100 mV DC
Analog input: Thermocouple: Available type	K, J, T, E, N, R, S, B, U, L, PLII, W5Re/W26Re
Analog input: Thermocouple: Cold junction compensation	Use the internal sensor.
Analog input: Resistance temperature detector: Available type	Pt100, JPt100, Pt50, Pt500, Pt1000, Ni100, Ni120, Ni500, Cu50, Cu100
Analog input: Resistance temperature detector: Measurement method	3-wire system
Digital output: Voltage, current, micro voltage	-32000...32000
Digital output: Thermocouple	-2700...18200
Digital output: Resistance temperature detector: Resolution 0.025 ˚C	-200000...850000
Digital output: Resistance temperature detector: Resolution 0.1 ˚C	-2000...8500
Resolution: Input range	Digital output value (resolution)
Resolution: Voltage input: 0...10 V	0...32000 (312.5 µV)
Resolution: Voltage input: 0...5 V	0...32000 (156.25 µV)
Resolution: Voltage input: 1...5 V	0...32000 (125 µV)
Resolution: Voltage input: -10...10 V	-32000...32000 (312.5 µV)
Resolution: Current input: 0...20 mA	0...32000 (625 nA)
Resolution: Current input: 4...20 mA	0...32000 (500 nA)
Resolution: Micro voltage: -100...100 mV	-32000...32000 (3.125 µV)
Resolution: Thermocouple	B, R, S, N, PL II, W5Re/W26Re: 0.3 ˚C K, E, J, T, U, L: 0.1 ˚C
Resolution: Resistance temperature detector	0.025 ˚C/0.1 ˚C
Accuracy: Voltage, current, micro voltage: Ambient temperature: 25±5 ˚C	Within ±0.1 %
Accuracy: Voltage, current, micro voltage: Ambient temperature: 0...55 ˚C	Within ±0.2 %
Accuracy: Thermocouple type: Measured temperature range	Accuracy (ﾟC) = (Conversion accuracy) + (Cold junction compensation accuracy) + (Allowable difference of thermocouple used)
Accuracy: B: 0...600 ﾟC	―
Accuracy: B: 600...1700 ﾟC	Conversion accuracy: 0.7 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.1 ˚C Effect per wiring resistance: 0.021 ˚C/Ω
Accuracy: B: 1700...1820 ﾟC	―
Accuracy: R: -50...0 ﾟC	―
Accuracy: R: 0...1600 ﾟC	Conversion accuracy: 1.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.7 ˚C Effect per wiring resistance: 0.025 ˚C/Ω
Accuracy: R: 1600...1760 ﾟC	―
Accuracy: S: -50...0 ﾟC	―
Accuracy: S: 0...1600 ﾟC	Conversion accuracy: 1.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.8 ˚C Effect per wiring resistance: 0.025 ˚C/Ω
Accuracy: S: 1600...1760 ﾟC	―
Accuracy: K: -270...-200 ﾟC	―
Accuracy: K: -200...-150 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.7 ˚C Effect per wiring resistance: 0.008 ˚C/Ω
Accuracy: K: -150...-100 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.7 ˚C Effect per wiring resistance: 0.005 ˚C/Ω
Accuracy: K: -100...1200 ﾟC	Conversion accuracy: 0.8 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.4 ˚C Effect per wiring resistance: 0.004 ˚C/Ω
Accuracy: K: 1200...1370 ﾟC	―
Accuracy: E: -270...-200 ﾟC	―
Accuracy: E: -200...-150 ﾟC	Conversion accuracy: 0.3 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.4 ˚C Effect per wiring resistance: 0.005 ˚C/Ω
Accuracy: E: -150...-100 ﾟC	Conversion accuracy: 0.7 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.7 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: E: -100...900 ﾟC	Conversion accuracy: 0.9 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.3 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: E: 900...1000 ﾟC	―
Accuracy: J: -210...-40 ﾟC	―
Accuracy: J: -40...0 ﾟC	Conversion accuracy: 0.3 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.5 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: J: 0...750 ﾟC	Conversion accuracy: 0.3 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.5 ˚C Effect per wiring resistance: 0.002 ˚C/Ω
Accuracy: J: 750...1200 ﾟC	―
Accuracy: T: -270...-200 ﾟC	―
Accuracy: T: -200...-150 ﾟC	Conversion accuracy: 1.2 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.2 ˚C Effect per wiring resistance: 0.008 ˚C/Ω
Accuracy: T: -150...-100 ﾟC	Conversion accuracy: 1.2 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.2 ˚C Effect per wiring resistance: 0.006 ˚C/Ω
Accuracy: T: -100...0 ﾟC	Conversion accuracy: 1.2 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.2 ˚C Effect per wiring resistance: 0.004 ˚C/Ω
Accuracy: T: 0...350 ﾟC	Conversion accuracy: 0.3 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.4 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: T: 350...400 ﾟC	―
Accuracy: N: -270...-200 ﾟC	―
Accuracy: N: -200...-150 ﾟC	Conversion accuracy: 1.0 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.2 ˚C Effect per wiring resistance: 0.013 ˚C/Ω
Accuracy: N: -150...-100 ﾟC	Conversion accuracy: 0.9 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.9 ˚C Effect per wiring resistance: 0.008 ˚C/Ω
Accuracy: N: -100...0 ﾟC	Conversion accuracy: 0.9 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.9 ˚C Effect per wiring resistance: 0.006 ˚C/Ω
Accuracy: N: 0...1250 ﾟC	Conversion accuracy: 0.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.9 ˚C Effect per wiring resistance: 0.005 ˚C/Ω
Accuracy: N: 1250...1300 ﾟC	―
Accuracy: U: -200...-150 ﾟC	Conversion accuracy: 3.4 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 3.4 ˚C Effect per wiring resistance: 0.013 ˚C/Ω
Accuracy: U: -150...-100 ﾟC	Conversion accuracy: 2.0 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 2.1 ˚C Effect per wiring resistance: 0.006 ˚C/Ω
Accuracy: U: -100...0 ﾟC	Conversion accuracy: 2.1 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 2.1 ˚C Effect per wiring resistance: 0.006 %/Ω
Accuracy: U: 0...600 ﾟC	Conversion accuracy: 0.2 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.4 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: L: -200...-150 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.5 ˚C Effect per wiring resistance: 0.006 ˚C/Ω
Accuracy: L: -150...-100 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.5 ˚C Effect per wiring resistance: 0.004 ˚C/Ω
Accuracy: L: -100...900 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.9 ˚C Effect per wiring resistance: 0.003 ˚C/Ω
Accuracy: PLII: 0...1390 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.2 ˚C Effect per wiring resistance: 0.004 ˚C/Ω
Accuracy: W5Re/W26Re: 0...1000 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.9 ˚C Effect per wiring resistance: 0.009 ˚C/Ω
Accuracy: W5Re/W26Re: 1000...1500 ﾟC	Conversion accuracy: 0.5 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.1 ˚C Effect per wiring resistance: 0.008 ˚C/Ω
Accuracy: W5Re/W26Re: 1500...2000 ﾟC	Conversion accuracy: 1.0 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 2.1 ˚C Effect per wiring resistance: 0.010 ˚C/Ω
Accuracy: W5Re/W26Re: 2000...2300 ﾟC	Conversion accuracy: 1.9 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 3.5 ˚C Effect per wiring resistance: 0.013 ˚C/Ω
Accuracy: Cold junction compensation accuracy: Measured temperature: -100 ˚C or more	±2 ˚C
Accuracy: Cold junction compensation accuracy: Measured temperature: -150...-100 ˚C	±3 ˚C
Accuracy: Cold junction compensation accuracy: Measured temperature: -200...-150 ˚C	±5 ˚C
Accuracy: Resistance temperature detector type: Measured temperature range	Accuracy (ﾟC) = (Conversion accuracy) + (Allowable difference of resistance temperature detector used)
Accuracy: Pt100: -200...850 ﾟC	Conversion accuracy: 0.350 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.800 ˚C
Accuracy: Pt100: -20...120 ﾟC	Conversion accuracy: 0.250 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.800 ˚C
Accuracy: Pt100: 0...200 ﾟC	Conversion accuracy: 0.300 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.900 ˚C
Accuracy: JPt100: -180...600 ﾟC	Conversion accuracy: 0.300 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.400 ˚C
Accuracy: JPt100: -20...120 ﾟC	Conversion accuracy: 0.250 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.800 ˚C
Accuracy: JPt100: 0...200 ﾟC	Conversion accuracy: 0.250 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.900 ˚C
Accuracy: Pt1000: -200...850 ﾟC	Conversion accuracy: 0.300 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.600 ˚C
Accuracy: Pt50: -200...650 ﾟC	Conversion accuracy: 0.400 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.800 ˚C
Accuracy: Pt500: -200...850 ﾟC	Conversion accuracy: 0.400 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.700 ˚C
Accuracy: Ni100: -60...250 ﾟC	Conversion accuracy: 0.200 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.100 ˚C
Accuracy: Ni120: -60...250 ﾟC	Conversion accuracy: 0.200 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.900 ˚C
Accuracy: Ni500: -60...250 ﾟC	Conversion accuracy: 0.200 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.900 ˚C
Accuracy: Cu50: -180...200 ﾟC	Conversion accuracy: 0.250 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 1.000 ˚C
Accuracy: Cu100: -180...200 ﾟC	Conversion accuracy: 0.200 ˚C Maximum temperature error at ambient temperature 55 ﾟC: 0.800 ˚C
Conversion speed	40 ms/4 channels
Absolute maximum input: Voltage	±15 V
Absolute maximum input: Current	±30 mA
Isolation method	Between communication system and analog input: Transformer Between power supply system and analog input: Transformer Between analog input channels: Transformer
Dielectric withstand voltage	Between power supply/communication system batch and analog input: 500 V AC for 1 minute Between analog input channels: 500 V AC for 1 minute
Insulation resistance	Between power supply/communication system batch and analog input: 500 V DC, 10 MΩ or higher Between analog input channels: 500 V DC, 10 MΩ or higher
Availability of connecting extension module	Not connectable
Station type	Remote device station
Cyclic transmission: RX/RY points	32 points
Cyclic transmission: RWr/RWw points	24 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	325 mA
Module power supply: Inrush current	16 A, 0.5 ms or less
External interface	Communication part: RJ45 connector Module power supply part: A 3-point spring clamp terminal block Analog input part: A 24-point spring clamp terminal block
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
External dimensions: Height	65 mm
External dimensions: Width	175 mm
External dimensions: Depth	43.5 mm
Weight	0.23 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE Field Network Multiple Input (Voltage/Current/Temperature) Module User's Manual (SH-081682ENG-D)	PDF · 5.82MB
Before Using the Product (BCN-P5999-0693E-B)	PDF · 0.22MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
