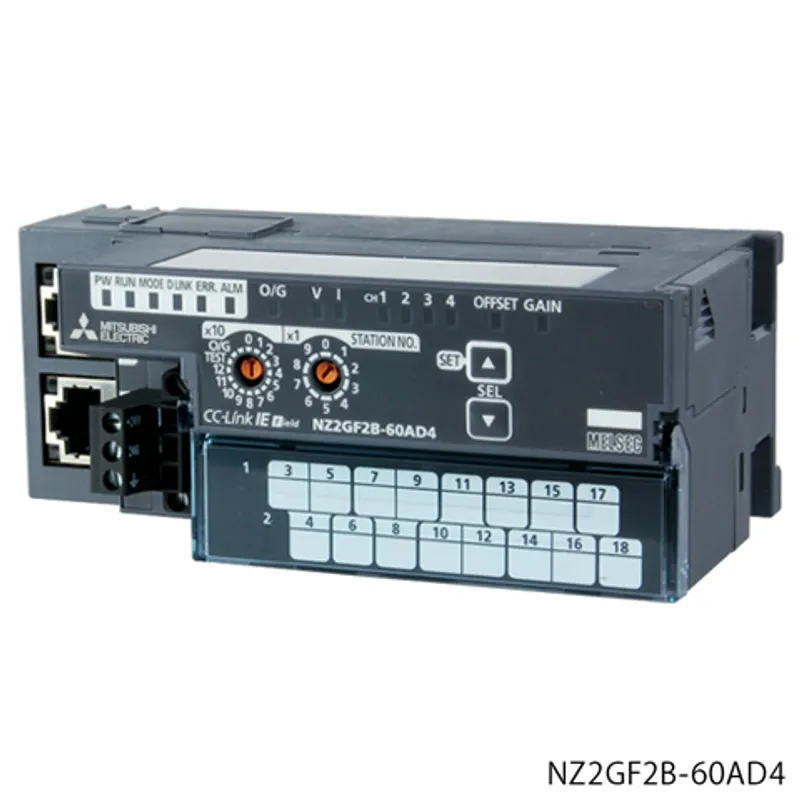

NZ2GF2B-60AD4 Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2GF2B-60AD4 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link IE Field |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the NZ2GF2B-60AD4 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2GF2B-60AD4, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NZ2GF2B-60AD4 be shipped?
NZ2GF2B-60AD4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NZ2GF2B-60AD4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NZ2GF2B-60AD4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF2B-60AD4, subject to availability and destination.
The Mitsubishi Electric NZ2GF2B-60AD4 is a remote I/O in the MELSEC network modules. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 400 µs/channel, 1 ms/channel. Mitsubishi Electric has discontinued it (2015/11 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | Analog I/O |
| Subtype | Analog input |
| Sales status | 2015/11 Discontinued (Mitsubishi Electric) |
| Outline | 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 400 µs/channel, 1 ms/channel |
Input specifications
| Number of analog input points | 4 points (4 channels) |
| Analog input: Voltage | -10...+10 V DC (input resistance 1 MΩ) |
| Analog input: Current | 0...20 mA DC (input resistance 250 Ω) |
| Digital output | -16384...+16383 |
| I/O characteristics, resolution: Input range | Digital output value (maximum resolution) |
| I/O characteristics, resolution: Voltage input: 0...5 V | 0...16000 (0.3125 mV) |
| I/O characteristics, resolution: Voltage input: 1...5 V | 0...16000 (0.25 mV) |
| I/O characteristics, resolution: Voltage input: -10...10 V | -16000...16000 (0.625 mV) |
| I/O characteristics, resolution: Voltage input: User range setting 1 (-10...10 V) | -16000...16000 (0.5 mV) |
| I/O characteristics, resolution: Voltage input: User range setting 2 (-5...5 V) | -16000...16000 (0.25 mV) |
| I/O characteristics, resolution: Current input: 0...20 mA | 0...16000 (1.25 µA) |
| I/O characteristics, resolution: Current input: 4...20 mA | 0...16000 (1 µA) |
| I/O characteristics, resolution: Current input: User range setting 2 (-20...20 mA) | -16000...16000 (1 µA) |
| Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ﾟC | ±0.2 % |
| A/D conversion speed | 400 µs/channel 1 ms/channel |
| Absolute maximum input: Voltage | ±15 V |
| Absolute maximum input: Current | ±30 mA |
Common specifications
| Isolation method | Between communication system terminals and all analog inputs: Photocoupler Between power supply system terminals and all analog inputs: Transformer Between input channels: Non-isolation |
| Dielectric withstand voltage | Between all power supply and communication system terminals and all analog input terminals: 500 V AC for 1 minute |
| Availability of connecting extension module | Connectable (Max. one module) |
| Station type | Remote device station |
| Cyclic transmission: RX/RY points | 32 points + 16 points × number of extension modules |
| Cyclic transmission: RWr/RWw points | 16 points + points of each extension module |
| Module power supply: Voltage | 24 V DC (20.4...28.8 V DC) |
| Module power supply: Current | 230 mA (inrush current: 31.2 A, 1.5 ms or less) |
| External interface | Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (M2.5 screw) I/O part: 18-point two-piece terminal block (M3 screw) |
| Communication cable | An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable |
| External dimensions: Height | 50 mm |
| External dimensions: Width | 133 mm |
| External dimensions: Depth | 68 mm |
| Weight | 0.30 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -25...75 ˚C |
| Operating ambient humidity | 5...95 %RH, non-condensing |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
| Equipment class | Class I |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link IE Field Network Analog-Digital Converter Module User's Manual (SH-081110ENG-D) | PDF · 8.22MB |
| Before Using the Product (BCN-P5989) | PDF · 0.25MB |
