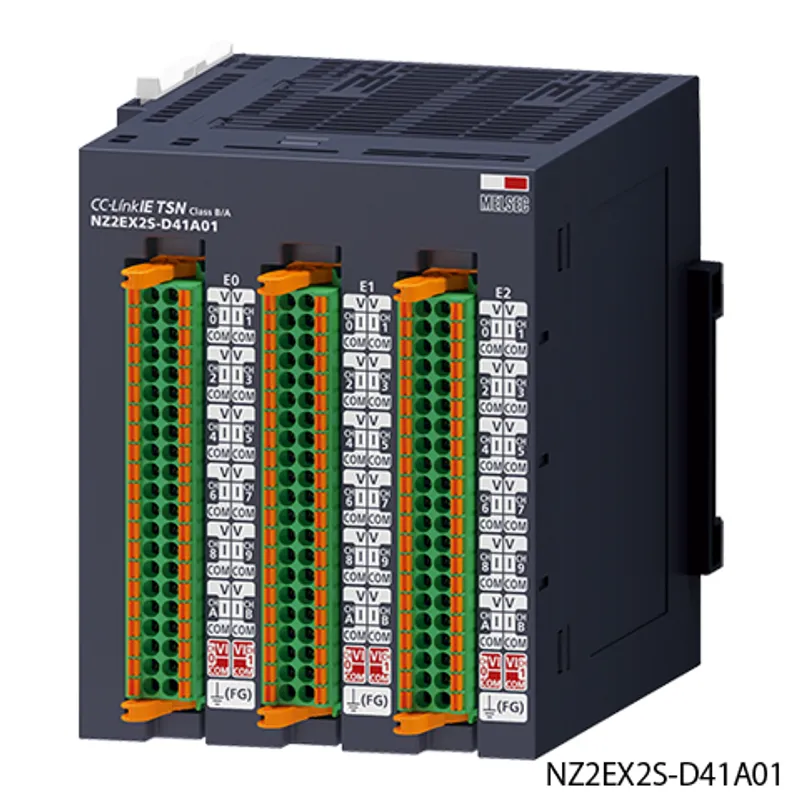

NZ2EX2S-D41A01 Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2EX2S-D41A01 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE TSN
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2EX2S-D41A01 be shipped?

NZ2EX2S-D41A01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2EX2S-D41A01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2EX2S-D41A01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2EX2S-D41A01, subject to availability and destination.

The Mitsubishi Electric NZ2EX2S-D41A01 is a remote I/O in the MELSEC network modules. Input: 36 points, -9.9...9.9 V DC, -19.8...19.8 mA Output: 6 points, -9.9...9.9 V DC, 2...19.8 mA. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	FPGA
Subtype	Extension
Outline	Input: 36 points, -9.9...9.9 V DC, -19.8...19.8 mA Output: 6 points, -9.9...9.9 V DC, 2...19.8 mA

Analog input specifications

Number of points	36 points
Input range: Voltage	-9.9...9.9 V DC (input resistance: 800 kΩ or more)
Input range: Current	-19.8...19.8 mA DC (input resistance: 125 Ω±0.1 %)
Digital output	16 bits signed binary value (-32768...32767)
I/O characteristics, resolution: Input range	A/D conversion value (maximum resolution)
I/O characteristics, resolution: Voltage: -9.9...9.9 V	-32440...32439 (305.2 µV)
I/O characteristics, resolution: Current: -19.8...19.8 mA	-32440...32439 (610.4 nA)
Conversion accuracy: Voltage	Within ±0.2 % (25±5 ˚C) Within ±0.2 % (0...55 ˚C)
Conversion accuracy: Current	Within ±0.3 % (25±5 ˚C) Within ±0.3 % (0...55 ˚C)
Sampling cycle	4 µs/36 channels
Input band	22.5 kHz (sampling cycle: 4 µs)
Input response time: Voltage input	50 µs maximum (-9.9...9.9 V)
Input response time: Current input	50 µs maximum (-19.8...19.8 mA)
Absolute maximum input: Voltage	±15 V
Absolute maximum input: Current	±30 mA

Analog output specifications

Number of points	6 points
Output range: Voltage	-9.9...9.9 V DC (external load resistance value: 1 kΩ...1 MΩ)
Output range: Current	0.2...19.8 mA DC (external load resistance value: 50 Ω...600 Ω)
Digital input	16 bits unsigned binary value (0...65535)
I/O characteristics, resolution: Output range	D/A conversion value (Maximum resolution)
I/O characteristics, resolution: Voltage: -9.9...9.9 V	328...65207 (305.2 µV)
I/O characteristics, resolution: Current: 0.2...19.8 mA	655...64880 (305.2 nA)
Conversion accuracy: Voltage	Within ±0.2 % (25±5 ˚C) Within ±0.2 % (0...55 ˚C)
Conversion accuracy: Current	Within ±0.3 % (25±5 ˚C) Within ±0.3 % (0...55 ˚C)
Conversion speed	6 µs/6 channels
Output response time: Voltage output	50 µs maximum (-9.9...9.9 V)
Output response time: Current output	50 µs maximum (0.2...19.8 mA)
Absolute maximum output: Voltage	±15 V
Absolute maximum output: Current	±23 mA

Common specifications

Station type	Remote station
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	Protocol version 2.0
Cyclic transmission: RX/RY points	112 points
Cyclic transmission: RWr/RWw points	144 points
Maximum response time for time-managed polling: CC-Link IE TSN Class A	2048 µs
Multicast filter	Available
FTP client: Operability verified FTP server software	Microsoft ® Internet Information Services
FTP client: Number of transfer destination settings	1 maximum
Communication speed	1 Gbps/100 Mbps
Communication cable: 1Gbps	Ethernet cable (Category 5e or higher, straight cable)
Communication cable: 100 Mbps	Ethernet cable (Category 5 or higher, straight cable)
Insulated area	Between power supply system and I/O part: Insulation Between communication system and I/O part: Insulation Between terminal blocks of I/O part: Insulation Between channels of I/O part: Non-insulation
Dielectric withstand voltage	Between power supply/communication system terminals and I/O terminals, between earth and I/O terminals: 500 V DC for 1 minute
Insulation resistance	Between power supply/communication system terminals and I/O terminals, between earth and I/O terminals: 10 MΩ or higher by 500 V DC insulation resistance tester
Noise immunity	Noise voltage 500 Vp-p, noise width 1 µs, noise frequency 25...60 Hz (noise simulator condition)
Protection degree	IP2X
External interface	Communication part: RJ45 connector Module power supply part: Spring clamp terminal block I/O part: Spring clamp terminal block
External power supply	24 V DC (ripple rate: 5 % or less) (allowable voltage range: 20.4...28.8 V DC) Current consumption: Total current consumption of main module and extension module
Incorporated FPGA: Device name	5CGXFC7D6F27I7N (Cyclone ® V series manufactured by Intel ® )
Incorporated FPGA: Circuit capacity	LUTs = 149.5K (650K gates), block RAM = 7000K bits
Available capacity for user	LUTs = 35K (150K gates), block RAM = 4400K bits
FPGA system clock	100 MHz
Power consumption	440 mA
External dimensions: Height	114 mm
External dimensions: Width	103.5 mm
External dimensions: Depth	116.5 mm
Weight	0.41 kg

Ethernet specifications

Transmission specifications: Data transmission speed	1 Gbps/100 Mbps
Transmission specifications: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Maximum segment length	100 m
Transmission specifications: Number of cascaded connections	Consult the manufacturer of the switching hub used.
Transmission specifications: IP version	IPv4

FPGA Performance

Operating frequency: Input clock	25 MHz
Operating frequency: Internal logic operating frequency	100 MHz
Operating frequency: External memory operating frequency (DDR3L SDRAM interface)	400 MHz (maximum value)
Series: Manufacturer	Intel
Series	Cyclone V series
Series: Master (frame)	5CGXFC7D6F27I7N
IP, macro (standard circuit part)	PLL SRAM DDR3 SDRAM controller (with UniPHY)
Connected device: MCU	R-IN32M4-CL3 manufactured by Renesas
Connected device: Memory for logging	DDR3L SDRAM
Input/output performance: DC input/output: Input cycle	100 ns (10 MHz)
Input/output performance: DC input/output: Output cycle	100 ns (10 MHz)
Input/output performance: DC input/output: Latency	130 ns
Input/output performance: Differential input/output: Input cycle	10 ns (100 MHz)
Input/output performance: Differential input/output: Output cycle	10 ns (100 MHz)
Input/output performance: Differential input/output: Latency	90 ns
Input/output performance: Analog input/output: Input cycle (ADC)	4 µs (250 kHz)
Input/output performance: Analog input/output: Output cycle (DAC)	6 µs (166.67 kHz)
Input/output performance: Logging: Logging cycle	1 µs (1 MHz)

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
