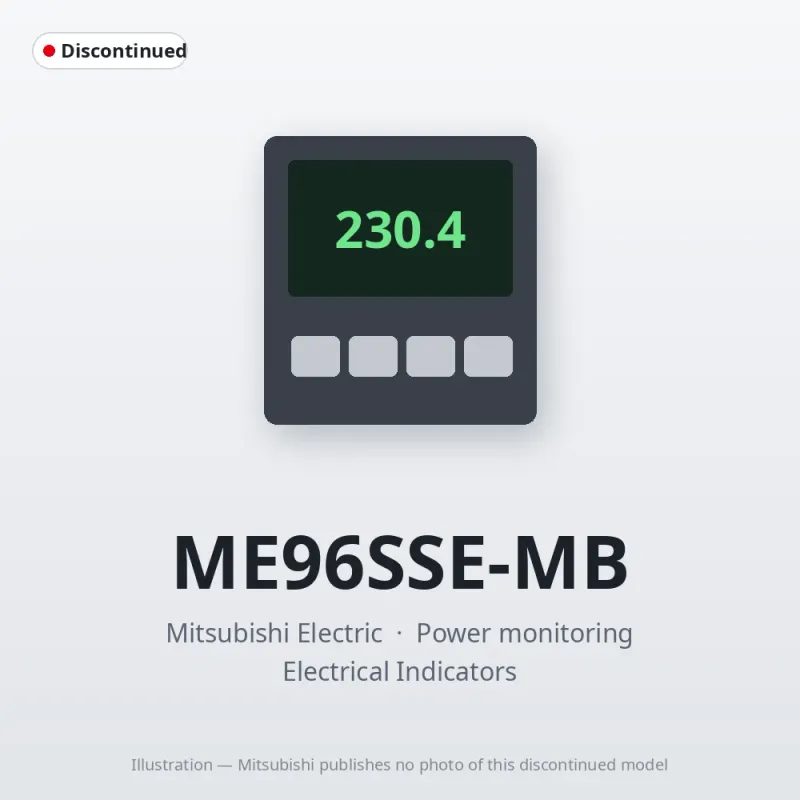

ME96SSE-MB Mitsubishi Power monitoring MODBUS RTU
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original ME96SSE-MB (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi Power monitoring – Meters |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the ME96SSE-MB now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the ME96SSE-MB, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can ME96SSE-MB be shipped?
ME96SSE-MB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ME96SSE-MB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ME96SSE-MB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ME96SSE-MB, subject to availability and destination.
The Mitsubishi Electric ME96SSE-MB is a MODBUS RTU in the Power monitoring. Mitsubishi Electric has discontinued it (2013/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | Power monitoring |
| Category | MODBUS RTU |
| Sales status | 2013/12 Discontinued (Mitsubishi Electric) |
Specifications
| Category | Electrical Indicators |
| Group | Electronic Multi-Measuring Instrument |
| Model | ME96 series economy model |
| Model name | ME96SSE-MB |
| Phase wire system | 3-phase 4-wire, 3-phase 3-wire (3CT, 2CT), 1-phase 3-wire, 1-phase 2-wire (common use) |
| Rating: Current | 5A AC, 1A AC (common use) |
| Rating: Voltage | 3-phase 4-wire : max 277/480V AC 3-phase 3-wire : (DELTA) max 220V AC, (STAR) max 440V AC 1-phase 3-wire : max 220/440V AC 1-phase 2-wire : (DELTA) max 220V AC, (STAR) max 440V AC |
| Rating: Frequency | 50/60Hz (common use) |
| Measuring element: Current (A): Measuring Item | A1, A2, A3, AN, A AVG |
| Measuring element: Current (A): Class | ±0.5% |
| Measuring element: Voltage (V): Measuring Item | V12, V23, V31, V AVG (L-L), V1N, V2N, V3N, V AVG (L-N) |
| Measuring element: Voltage (V): Class | ±0.5% |
| Measuring element: Active power (W): Measuring Item | W1, W2, W3, ΣW |
| Measuring element: Active power (W): Class | ±0.5% |
| Measuring element: Power factor (PF): Measuring Item | PF1, PF2, PF3, ΣPF |
| Measuring element: Power factor (PF): Class | ±2.0% |
| Measuring element: Frequency (Hz): Measuring Item | Hz |
| Measuring element: Frequency (Hz): Class | ±0.5% |
| Measuring element: Active energy (Wh): Measuring Item | Imported |
| Measuring element: Active energy (Wh): Class | class 1.0 (IEC62053-21) |
| Measuring element: Operating time (h): Measuring Item | Operating time 1, Operating time 2 |
| Measuring element: Operating time (h): Class | (Reference) |
| Measuring method: Instantaneous value | A/V: RMS calculation, W: Digital multiplication, PF: Power ratio calculation, Hz: Zero-cross |
| Display: Display type | LCD with LED backlight |
| Display: Number of display digits or segments: Digital section | 6 digits each at upper, middle, and lower line A, V, W, PF: 4 digits Hz: 3 digits Wh: 9 digits (6 or 12 possible) Operating time: 6 digits |
| Display: Number of display digits or segments: Bar graph | 21 segment bar graph, 22 segment indicator |
| Display: Display update time interval | 0.5s or 1s (selectable) |
| Transmission function: Transmission type | MODBUS RTU |
| Transmission function: Transmission speed | 2400, 4800, 9600, 19200, 38400bps |
| Transmission function: Connection method | Multi-drop |
| Transmission function: Transmission distance | 1,200m (max) |
| Transmission function: Number of connectable units | 31 units |
| Connectable Optional Plug-in Module | Cannot connect optional module |
| Power interruption backup | Non-volatile memory used (items: setting value, max/min value, active energy, operating time) |
| VA Consumption: Voltage circuit | Each phase 0.1VA (110V AC), 0.2VA (220V AC) |
| VA Consumption: Current circuit | Each phase 0.1VA (5A AC) |
| VA Consumption: Auxiliary power circuit | 7VA (at 110V AC), 8VA (at 220V AC), 5W (at 100V DC) |
| Auxiliary power | 100-240V AC (±15%), 100-240V DC (-30% +15%) |
| Weight | 0.5kg |
| Dimensions | 96 (H) x 96 (W) x 86 (D) |
| Mounting method | Embedded |
| Operating temperature | -5 to +55°C (Average: 35°C or less) |
| Operating humidity | 0 to 85%RH (non condensing) |
| Storage temperature | -25 to +75°C (Average: 35°C or less) |
| Storage humidity | 0 to 85%RH (non condensing) |
