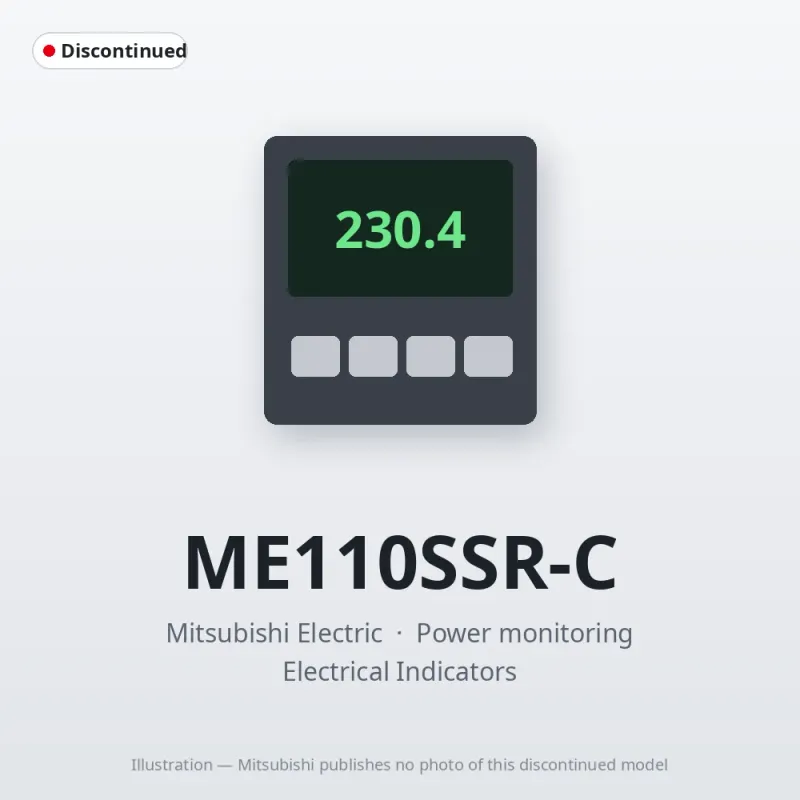

ME110SSR-C Mitsubishi Power monitoring CC-Link

MPN: ME110SSR-C · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original ME110SSR-C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi Power monitoring – Meters
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the ME110SSR-C now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the ME110SSR-C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can ME110SSR-C be shipped?

ME110SSR-C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ME110SSR-C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ME110SSR-C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ME110SSR-C, subject to availability and destination.

The Mitsubishi Electric ME110SSR-C is a CC-Link in the Power monitoring. Mitsubishi Electric has discontinued it (2024/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	Power monitoring
Category	CC-Link
Sales status	2024/03 Discontinued (Mitsubishi Electric)

Specifications

Category	Electrical Indicators
Group	Electronic Multi-Measuring Instrument
Model	ME110 Super-S Series (CC-Link Communication)
Model name	ME110SSR-C
Phase wire system	3-phase 4-wire, 3-phase 3-wire (3CT, 2CT), 1-phase 3-wire, 1-phase 2-wire (common use)
Rating: Current	5A AC, 1A AC (1A AC is special-purpose item)
Rating: Voltage	3-phase 4-wire : max 277/480V AC 3-phase 3-wire : 110V AC, 220V AC 1-phase 3-wire : 220V AC (110/220V AC) 1-phase 2-wire : 110V AC, 220V AC
Rating: Frequency	50-60Hz
Measuring element: Current (A): Measuring Item	3P4W : A1, A2, A3, AN, A AVG 3P3W, 1P3W : A1, A2, A3 1P2W : A1
Measuring element: Current (A): Class	0.5%
Measuring element: Current demand (DA): Measuring Item	3P4W : DA1, DA2, DA3, DAN, DA AVG 3P3W, 1P3W : DA1, DA2, DA3 1P2W : DA1
Measuring element: Current demand (DA): Class	0.5%
Measuring element: Voltage (V): Measuring Item	3P4W : V12, V23, V31, V AVG (L-L), V1N, V2N, V3N, V AVG (L-N) 3P3W, 1P3W : V12, V23, V31 1P2W : V12
Measuring element: Voltage (V): Class	0.5%
Measuring element: Active power (W): Measuring Item	3P4W : ΣW, W1, W2, W3 3P3W, 1P3W, 1P2W : ΣW
Measuring element: Active power (W): Class	0.5%
Measuring element: Active demand power (DW): Measuring Item	3P4W : ΣDW, DW1, DW2, DW3 3P3W, 1P3W, 1P2W : ΣDW
Measuring element: Active demand power (DW): Class	0.5%
Measuring element: Reactive power (var): Measuring Item	3P4W : Σvar, var1, var2, var3 3P3W, 1P3W, 1P2W : Σvar
Measuring element: Reactive power (var): Class	0.5%
Measuring element: Apparent power (VA): Measuring Item	3P4W : ΣVA, VA1, VA2, VA3
Measuring element: Apparent power (VA): Class	0.5%
Measuring element: Power factor: Measuring Item	3P4W : Σcosφ, cosφ1, cosφ2, cosφ3 3P3W, 1P3W, 1P2W : Σcosφ
Measuring element: Power factor: Class	2.0%
Measuring element: Frequency (Hz): Measuring Item	Hz
Measuring element: Frequency (Hz): Class	0.5%
Measuring element: Active energy (Wh): Measuring Item	Imported, Exported
Measuring element: Active energy (Wh): Class	2.0%
Measuring element: Reactive energy (varh): Measuring Item	Import Capacitive, Import Inductive, Export Capacitive, Export Inductive
Measuring element: Reactive energy (varh): Class	2.0%
Measuring element: Harmonic current (HI): Measuring Item	3P4W : HI1, HI2, HI3, HIN 3P3W, 1P3W : HI1, HI3 1P2W : HI1 THD, h1...h13 (without even number) RMS value and Distortion ratio (max.100%)
Measuring element: Harmonic current (HI): Class	2.5% (Total RMS, 0 to Rated x 60%)
Measuring element: Harmonic voltage (HV): Measuring Item	3P4W : HV1N, HV2N, HV3N 3P3W, 1P3W : HV12, HV23 1P2W : HV12 THD, h1...h13 (without even number) RMS value and Distortion ratio (max.20%)
Measuring element: Harmonic voltage (HV): Class	2.5% (THD, 0 to 20%)
Measuring Method: Instantaneous Value	A, V : RMS calculation, W, var, VA, Wh, varh : Digital multiplication, cosφ: Power ratio calculation, Hz : Zero-cross, HV, HI : FTT
Measuring Method: Demand Value	Thermal type calculation
Display: Display type	LCD with backlight
Display: Number of display digits or segments: Digital section	A, DA, V, W, DW, var, VA, cosφ: 4 digits Hz, HI, HV : 3 digits Wh, varh : 6 digits
Display: Number of display digits or segments: Bar graph	21 Segment-Bar graph, 22 Segment-Indicator
Display: Display update time interval	0.5s / 1s
Transmission function: Transmission type	CC-Link
Transmission function: Transmission speed	10M, 5M, 2.5M, 625k, 156kbps
Transmission function: Connection method	Bus connection method
Transmission function: Transmission distance	100m (10Mbps) to 1200m (156kbps)
Transmission function: Number of connectable units	42 units (remote device station)
Response time	Display : 4s or less, Analog output : 4s or less In HI and HV, 10s or less
Power interruption backup	Non volatile memory (Items : setting value, max/min value, active/reactive energy)
VA Consumption: Voltage circuit	0.1VA/phase, 0.2VA/phase (at direct input)
VA Consumption: Current circuit	0.1VA/phase
VA Consumption: Auxiliary power circuit	8VA at 110VAC, 9VA at 220VAC, 6W at 100VDC
VA Consumption: Digital input	DC19-30V, under 7mA
Auxiliary power	100 to 240VAC (+10%, -15%) 50/60Hz 100VDC (+10%, -30%)
Weight	0.5kg
Dimensions	110(H) x 110(W) x 98(D)
Enclosure	Thermoplastic self-extinguish (UL94V0)
Operating temperature	-5°C to +50°C (average operating temperature : 35°C or less per day)
Operating humidity	85%RHmax, non condensing
Storage temperature	-20°C to +60°C

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Electronic Multi-Measuring Instrument User's Manual : Simple version (ME110SS Series) (IB63661E--)	PDF · 2.79MB
Electronic Multi-Measuring Instrument User's Manual : Detailed Edition (ME110SS Series) (IB63660-A)	PDF · 9.61MB
