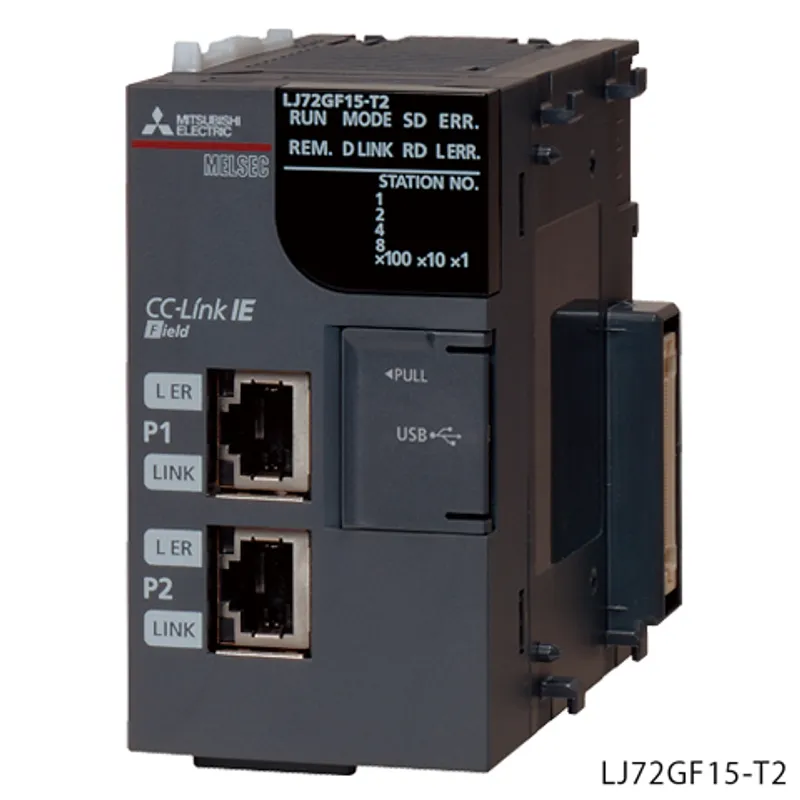

LJ72GF15-T2 Mitsubishi MELSEC-L Series CC-Link IE Field

MPN: LJ72GF15-T2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – Network
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LJ72GF15-T2 be shipped?

LJ72GF15-T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LJ72GF15-T2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LJ72GF15-T2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LJ72GF15-T2, subject to availability and destination.

The Mitsubishi Electric LJ72GF15-T2 is a CC-Link IE Field in the MELSEC-L Series. CC-Link IE Field Network head module. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	CC-Link IE Field
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	CC-Link IE Field Network head module

CC-Link IE Field Network specifications

Maximum number of link points per station: RWw	1024 points, 2K bytes
Maximum number of link points per station: RWr	1024 points, 2K bytes
Maximum number of link points per station: RX	2048 points, 256 bytes
Maximum number of link points per station: RY	2048 points, 256 bytes
Station type	Intelligent device station
Station number	1...120
Network number	1...239

Ethernet specifications

Communication speed	1 Gbps
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Maximum station-to-station distance	Up to 100 m (compliant with ANSI/TIA/EIA-568-B (category 5e))
Overall cable distance	Line topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected)
Number of cascade connections	20 levels maximum

Head module part

Number of I/O points: Input (X)	4096 points, 512 bytes (Number of points accessible to the actual module)
Number of I/O points: Output (Y)	4096 points, 512 bytes (Number of points accessible to the actual module)
No. of device points: Input (X)	8192 points, 1K bytes (Number of usable points on programs) (RX0 is assigned from X0.)
No. of device points: Output (Y)	8192 points, 1K bytes (Number of usable points on programs) (RY0 is assigned from Y0.)
No. of device points: Link register (W)	8192 points, 16K bytes (Assign 1024 points (W0...3FF) from RWw0. Assign 1024 points (W1000...13FF) from RWr0.)
No. of device points: Link special relay (SB)	8192 points (SB0000 to SB0FFF are used by the system. SB1000 to SB1FFF can be modified by the user.)
No. of device points: Link special register (SW)	8192 points (SW0000 to SW0FFF are used by the system. SW1000 to SW1FFF can be modified by the user.)
No. of device points: Special relay (SM)	2048 points, 256 bytes
No. of device points: Special register (SD)	2048 points, 4K bytes
Intelligent function module device	Device that directly accesses the buffer memory of an intelligent function module Specified form: U...\G...
Maximum number of intelligent function module parameters: Initial setting	4096 parameters
Maximum number of intelligent function module parameters: Auto refresh	2048 parameters
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	1.0 A
External dimensions: Height	90 mm
External dimensions: Width	Head module: 50 mm END cover (accessory): 13 mm
External dimensions: Depth	95 mm
Weight	Head module: 0.23 kg END cover (accessory): 0.06 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with IEC 61131-2/JIS B 3502: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with IEC 61131-2/JIS B 3502: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	ompliant with IEC 61131-2/JIS B 3502 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
