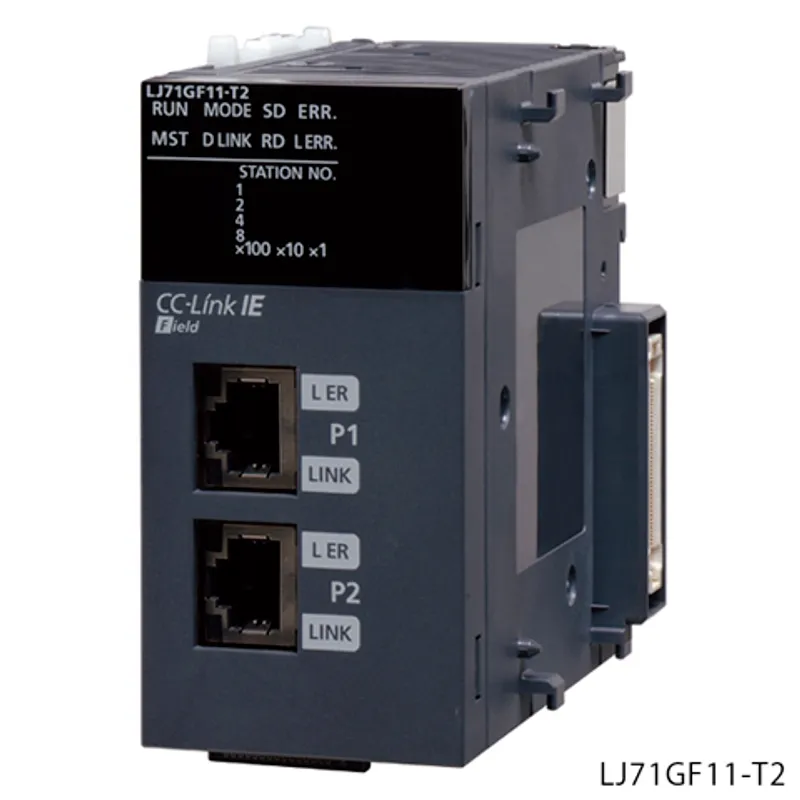

LJ71GF11-T2 Mitsubishi MELSEC-L Series CC-Link IE Field

MPN: LJ71GF11-T2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – Network
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LJ71GF11-T2 be shipped?

LJ71GF11-T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LJ71GF11-T2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LJ71GF11-T2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LJ71GF11-T2, subject to availability and destination.

The Mitsubishi Electric LJ71GF11-T2 is a CC-Link IE Field in the MELSEC-L Series. CC-Link IE Field Network, manager/local station. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	CC-Link IE Field
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	CC-Link IE Field Network, manager/local station

Specifications

Maximum number of link points per network: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY	16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RY	16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RWw	8K points (8192 points, 16K bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RY	16K points (16384 points, 2K bytes) Own station send range is 2K points (2048 points, 256 bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per station: When the submaster function is used: master operating station: RWw	8K points (8192 points, 16K bytes) Own station send range is 1K points (1024 points, 2K bytes), 256 points (512 bytes) when communication mode is "High-Speed".
Maximum number of link points per station: When the submaster function is used: submaster operating station: RX	2K points (2048 points, 256 bytes) (assigned for the station number 0 or submanager station)
Maximum number of link points per station: When the submaster function is used: submaster operating station: RY	2K points (2048 points, 256 bytes) (assigned for the station number 0 or submanager station)
Maximum number of link points per station: When the submaster function is used: submaster operating station: RWr	1K points (1024 points, 2K bytes) (assigned for the station number 0 or submanager station) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: When the submaster function is used: submaster operating station: RWw	1K points (1024 points, 2K bytes) (assigned for the station number 0 or submanager station) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: Local station: RX	2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RY	2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RWr	1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: Local station: RWw	1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Communication speed	1 Gbps
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Maximum station-to-station distance	100 m (conforms to ANSI/TIA/EIA-568-B (Category 5e))
Overall cable distance	Line topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected)
Number of cascade connections	20 levels maximum
Maximum number of connectable stations	121 stations (manager station: 1, device station: 120)
Maximum number of networks	239
Communication method	Token passing method
Number of occupied I/O points	32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)	0.89 A
External dimensions: Height	90 mm
External dimensions: Width	45 mm
External dimensions: Depth	95 mm
Weight	0.27 kg

Specifications

General specifications

Refer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC-L CC-Link IE Field Network Master/Local Module User's Manual (SH-080972ENG-N)	PDF · 39.53MB
Before Using the Product (BCN-P5858E-F)	PDF · 0.12MB
